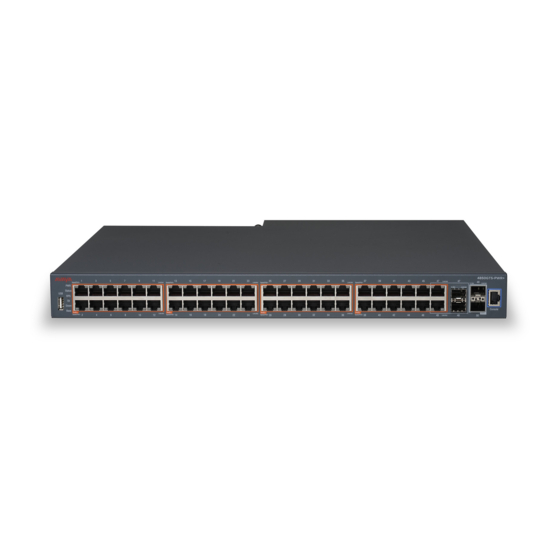

Page 1 Troubleshooting Avaya Ethernet Routing Switch 4000 Series Release 5.7 NN47205-700 Issue 05.02 April 2014...
Page 2 AGREED TO BY AVAYA IN WRITING, AVAYA DOES NOT EXTEND written consent of Avaya can be a criminal, as well as a civil offense THIS LICENSE IF THE SOFTWARE WAS OBTAINED FROM under the applicable law.
Page 3 Documentation, Hosted Service(s) and Product(s) should be construed as granting, by implication, estoppel, or otherwise, any license or right in and to the Marks without the express written permission of Avaya or the applicable third party. Avaya is a registered trademark of Avaya Inc.
Page 4 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 5: Table Of Contents
SNMP traps for DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard........ 40 Dynamic Host Configuration Protocol Relay (DHCP) relay............... 41 Auto Unit Replacement..........................42 Diagnostic Auto Unit Replacement (DAUR)....................42 Multicast behavior............................. 46 IPv6................................46 Light Emitting Diode (LED) display......................47 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 6 Avaya Knowledge and Solution Engine....................47 Chapter 5: General diagnostic tools................. ACLI command modes..........................49 Chapter 6: Initial troubleshooting..................Gather information............................ 51 Chapter 7: Emergency recovery trees................Emergency recovery trees........................53 Navigation..............................54 Corruption of flash............................. 55 Corruption of flash recovery tree...................... 55 Incorrect PVID............................
Page 7 Work flow: EAP client is not authenticating..................119 Restore RADIUS connection......................120 Enable EAP on the PC........................123 Apply the method............................124 Task flow: Apply the method......................124 Configuring the RADIUS server....................... 125 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 8 Device not responding to ping to its IPv6 address task flow............168 Displaying IPv6 interface information....................170 Enabling IPv6 interface on management VLAN................171 Configuring IPv6 address......................... 171 Displaying IPv6 global information....................171 Enabling IPv6........................... 172 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 9 Deleting the IPv6 address........................ 189 Configuring new IPv6 address......................189 Configuring new IPv6 gateway address................... 189 Chapter 12: Troubleshooting XFP/SFP................Troubleshooting XFP/SFP workflow......................191 XFP/SFP device not detected........................191 XFP/SFP device not detected task flow................... 191 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 10 Verify SPBM Multicast FIB entries......................222 Verifying LSDB information........................223 Using CFM..............................224 Chapter 16: Troubleshooting SLA Monitor Agent............Supporting NTR and RTP......................... 225 Chapter 17: Troubleshooting DHCP/BootP relay............. Troubleshooting DHCP/BootP relay work flow..................227 Navigation..............................228 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 11 Selecting the forward path mode...................... 236 Bootp/DHCP replies from server do not reach Bootp/DHCP clients............237 Bootp/DHCP replies from server do not reach Bootp/DHCP clients task flow......... 237 Navigation............................238 Verifying IP connectivity between server and client................. 238 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 12 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 13: Chapter 1: Introduction
Purpose The Avaya Ethernet Routing Switch 4000 Series Troubleshooting guide describes the diagnostic tools and utilities available with the Avaya Ethernet Routing Switch 4000 Series to help you troubleshoot operational and configuration issues. This document guides you through some common problems, to achieve a first tier solution to these situations, and advises you what information to compile prior to troubleshooting or calling Avaya for help.
Page 14 Avaya Mentor videos provide technical content on how to install, configure, and troubleshoot Avaya products. About this task Videos are available on the Avaya Support website, listed under the video document type, and on the Avaya-run channel on YouTube. • To find videos on the Avaya Support website, go to http://support.avaya.com, select the product name, and select the videos checkbox to see a list of available videos.
Page 15: Support
Relevance Ranking, Date Modified, Filename, or Location. The default is Relevance ranking. Support Visit the Avaya Support website at [xref to:http://support.avaya.com] for the most up-to-date documentation, product notices, and knowledge articles. You can also search for notices, release notes, downloads, user guides, and resolutions to issues.
Page 16 Introduction Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 17: Chapter 2: New In This Release
SLA Monitor The Service Level Agreement (SLA) Monitor feature is implemented phase-wise on the ERS 4000 series switch. In Release 5.6, the phase 1 implementation included the feature, SLA Monitor on the ERS 4000 series switch and supported only non-secure agent-server communication.
Page 18: Change Radius Password
PSE and PD to participate in dynamic power allocation. The allocated power to the PD can change one or more times during PD operation. For more information, see: • Configuring VLANs, Spanning Tree, and Multi-Link Trunking on Avaya Ethernet Routing Switch 4000 Series, NN47205-501. •...
Page 19: Run Scripts
Features Run scripts According to Avaya best practices for converged solutions, you can use the scripts to configure the parameters for an Avaya stackable Ethernet Switch. The scripts can be executed in a default or verbose mode. In the automated or non-verbose mode, the switch is configured using predetermined parameter values.
Page 20: Neap Not Member Of Vlan
VLAN to make authentication possible for Non-EAP clients. For more information, see: • Configuring Security on Avaya Ethernet Routing Switch 4000 Series, NN47205-505. • Non-EAP not a member of a VLAN on page 159 Syslog Support for 802.1X/EAP/NEAP/UBP...
Page 21: Rspan
Avaya networking products allow virtualization services at both layer 2 and layer 3, referred to as L2VSN and L3VSN. The Avaya Ethernet Switch 4800 is capable of providing L2VSN support connecting traditional Ethernet networks to an SPBM enabled network core, the ERS 4800 functions as a Backbone Edge Bridge.
Page 22 New in this release Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 23: Chapter 3: Troubleshooting Planning
There are some things you can do to minimize the need for troubleshooting and to plan for doing it as effectively as possible. First, use the Documentation Reference for Avaya Ethernet Routing Switch 4000 Series, NN47205–101 to familiarize yourself with the documentation set, so you know where to get information as you need it.
Page 24 This speeds the process of isolating network problems. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 25: Chapter 4: Troubleshooting Tools
This section describes available troubleshooting tools and their applications. Port mirroring Avaya Ethernet Routing Switch 4000 Series switches have a port mirroring feature that helps you to monitor and analyze network traffic. The port mirroring feature supports both ingress (incoming traffic) and egress (outgoing traffic) port mirroring. After port mirroring is enabled, the ingress or egress packets of the mirrored (source) port are forwarded normally and a copy of the packets is sent from the mirrored port to the mirroring (destination) port.
Page 26: Port Mirroring Commands
Port mirroring commands See Configuring System Monitoring on Avaya Ethernet Routing Switch 4000 Series, NN47205-502 for port mirroring command information. Use the port mirroring commands to assist in diagnostics and information gathering.
Page 27: Rspan
All traffic in the RSPAN VLAN is flooded and no MAC address learning occurs on the RSPAN VLAN. • RSPAN traffic may be terminated on a Avaya Switch supporting RSPAN. • The maximum number of RSPAN vlans on a DUT is four •...
Page 28: Rspan Commands
RSPAN commands Use the RSPAN commands to assist in diagnostics and information gathering. See Configuring System Monitoring on Avaya Ethernet Routing Switch 4000 Series, NN47205-502 for RSPAN command information. Port statistics Use port statistics commands to display information about received and transmitted packets at the ports.
Page 29: Stack Health Check
Avaya Ethernet Routing Switch 4000 Series, NN47205-502. Stack Forced Mode The Avaya Ethernet Routing Switch 4000 Series may enter Stack Forced Mode (if configured as such) after a stack of two units breaks into one or two standalone switches. The Stack Forced Mode operation allows the standalone device that comes out of a broken stack of two to be managed using the previous stack IP address.
Page 30 3. If the Stack Forced Mode is configured on the device, and the device is currently running in Stack Forced Mode, the output is: Forced-Stack Mode: Enabled Device is currently running in forced stack mode. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 31 Clients connected to this unit lose WAN connectivity. Figure 4: Remote Branch Office – Failure Scenario 3 In the following scenario, the possible failures are identical to Remote Branch Office - Failure Scenarios 1, 2, and 3. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 32 MLT, both of these devices continue using the same IP address. If the switch connects to the core routing switch through LACP, the two links are not aggregated and the problem does not arise. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 33: System Logs
Figure 8: Wiring Closet Deployment 2 – Failure Scenario 3 System logs You can use the syslog messaging feature of the Avaya Ethernet Routing Switch 4000 Series products to manage event messages. The Avaya Ethernet Routing Switch 4000 Series syslog software communicates with a server software component named syslogd that resides on your management workstation.
Page 34: Backup Config File
The interface you use to start the ASCII file download does not matter. The logged message is the one from ACLI. The system logs an ACG_DOWNLOAD_ERROR error message for the following situations: Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 35 The failed command text line number is in the message. The cause is in the message with the following errors: Invalid input detected Ambiguous command Incomplete command Permission denied Not allowed on slave Troubleshooting Avaya ERS 4000 Series April 2014...
Page 36: Cpu And Memory Utilization
This feature is supported by both ACLI and Web-based management. For more information about the feature, see Configuring System Monitoring on Avaya Ethernet Routing Switch 4000 Series, NN47205-502. Show commands The show tech command has been enhanced to display more information.
Page 37: Dynamic Arp Inspection
Dynamic ARP inspection is a security feature that validates ARP packets in a network. It intercepts, logs, and discards ARP packets with invalid IP-to-MAC address bindings. This capability protects the network from certain man-in-the-middle attacks. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 38: Mac Flush
Dynamic ARP inspection for the specified VLAN or VLANS. MAC Flush The Avaya Ethernet Routing Switch 4000 Series Release 5.3 supports MAC Flush. MAC Flush is a direct way to flush out MAC addresses from the MAC table. If the Layer 2 Forwarding Database (FDB) appears corrupted, you can: •...
Page 39: Mlt/Dmlt Trunk
To ensure that MLT is fully functional and that all links are enabled, Avaya recommends that you use the MLT enable command. Troubleshooting Avaya ERS 4000 Series...
Page 40: Snmp Traps For Dhcp Snooping, Dynamic Arp Inspection, And Ip Source Guard
DHCP request was received. - DHCP OFFER dropped on untrusted port. - DHCP ACK dropped on untrusted port. - DHCP NAK dropped on untrusted port. - DHCP RELEASEQUERY dropped on untrusted port. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 41: Dynamic Host Configuration Protocol Relay (Dhcp) Relay
SNMP traps. Dynamic Host Configuration Protocol Relay (DHCP) relay The Avaya Ethernet Routing Switch 4000 Series supports static routes. In order for DHCP servers to talk to clients on different VLANs or subnets, the feature relays client requests to DHCP servers on different Layer 3 VLANs and a relay server replies back to the clients.
Page 42: Auto Unit Replacement
If you attempt to remove the MAC address for an operational switch from the AUR address cache, the base unit switch displays an error message, and the MAC address is not removed. For more information about AUR, see Configuring Systems on Avaya Ethernet Routing Switch 4000 Series, NN47205-500. Diagnostic Auto Unit Replacement (DAUR) DAUR provides the capability of updating the diagnostic image of the non-base unit with the diagnostic image in the base unit of a stack.
Page 43 - If the agent image on the added unit is Release 5.1 or 5.0 and the Release 5.1 or 5.0 diagnostic, then, because the 5.3 image size is greater than 6M, the AAUR Troubleshooting Avaya ERS 4000 Series April 2014...
Page 44 The unit joins the stack after the reboot. Software 5.0/5.1 AAUR is performed. AAUR upgrades the unit Diagnostic 5.2 image, and then reboots the unit. The unit joins the stack because the diagnostic images are the same. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 45 – message logged after a unit receives a request for DAUR transfer and it starts transfer. Informational: DAUR - Info: Diag transfer finished • – message logged after the image is properly transferred. Informational: DAUR - Info: Slave refuse transfer • Troubleshooting Avaya ERS 4000 Series April 2014...
Page 46: Multicast Behavior
The Neighbor Cache replaces the IPv4 ARP cache because ICMPv6-based Neighbor Discovery replaces ARP. For detailed information about IPv6, see Configuring Systems on Avaya Ethernet Routing Switch 4000 Series, NN47205-500. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 47: Light Emitting Diode (Led) Display
LEDs on the unit. Familiarize yourself with the interpretation of the LEDs on the 4000 series device. See the technical document Installing Avaya Ethernet Routing Switch 4000 Series, NN47205-300 for detailed information regarding the interpretation of the LEDs.
Page 48 Troubleshooting tools Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 49: Chapter 5: General Diagnostic Tools
Chapter 5: General diagnostic tools The Avaya Ethernet Routing Switch 4000 Series device has diagnostic features available through DM, ACLI, and Web-based Management. You can use these diagnostic tools to help you troubleshoot operational and configuration issues. You can configure and display files, view and monitor port statistics, trace a route, run loopback and ping tests, test the switch fabric, and view the address resolution table.
Page 50: Configure Terminal
From Global, Interface or To return to Global 4850GT-(config-app) Router Configuration mode, Configuration mode, enter enter application exit . To return to Privileged EXEC mode, enter . To exit ACLI completely, enter logout Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 51: Chapter 6: Initial Troubleshooting
As part of your initial troubleshooting, Avaya recommends that you check the Knowledge and Solution Engine on the Avaya Web site for known issues and solutions related to the problem you are experiencing. Gather information Before contacting Avaya Technical Support, you must gather information that can help the Technical Support personnel.
Page 52 (five working pairs and five pairs with connectivity issues). Use the following commands to get connectivity information: - show tech - show running-config - show port-statistics <port> Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 53: Chapter 7: Emergency Recovery Trees
Emergency recovery trees About this task The following work flow shows the ERTs included in this section. Each ERT describes steps to correct a specific issue; the ERTs are not dependant upon each other. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 54: Navigation
Emergency recovery trees Procedure Figure 10: Emergency recovery trees Navigation • Corruption of flash on page 55 • Incorrect PVID on page 56 • VLAN not tagged to uplink ports on page 57 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 55: Corruption Of Flash
Initializing of the flash is one way to clear a corrupted configuration file and is required before an RMA. Corruption of flash recovery tree About this task The following figure shows the recovery tree for issues related to a corrupted flash. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 56: Incorrect Pvid
VLAN ID of 3, and the PVID of the port is 2, then loss of communication can occur. This can be verified by checking that the PVID of the ports match the VLAN setting. One way to avoid this problem is to set VLAN configuration control to autoPVID. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 57: Incorrect Pvid Recovery Tree
VLAN not tagged to uplink ports After a 4000 Series switch is connected to an 8600 Series switch and devices in a VLAN on the 8600 Series switch are unable to communicate with devices at the 4000 Series switch in the same VLAN, then it is likely that the uplink ports are not tagged to the VLAN on the 4000 Series switch.
Page 58: Vlan Not Tagged To Uplink Ports Recovery Tree
Emergency recovery trees VLAN not tagged to uplink ports recovery tree About this task The following figure shows the recovery tree for troubleshooting VLAN communication issues. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 59 VLAN not tagged to uplink ports Procedure Figure 13: VLAN not tagged to uplink ports Troubleshooting Avaya ERS 4000 Series April 2014...
Page 60: Snmp
If you can reach a device, but no traps are received, then verify the trap configurations (the trap destination address and the traps configured to be sent). SNMP recovery tree About this task The following figures show the SNMP recovery tree. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 61 SNMP Procedure Figure 14: SNMP part 1 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 62: Stack
Figure 15: SNMP part 2 Stack Stack failure can be the result of a communication error between the individual units typically due to stack cabling issues. Failures can also arise after multiple bases are configured. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 63: Stack Recovery Tree
• Multiple units have the base unit set to the on position. • Incorrect unit has the base unit set to the on position. Stack recovery tree About this task The following figures show the stack recovery tree. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 64 Emergency recovery trees Procedure Figure 16: Stack part 1 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 65 Stack Figure 17: Stack part 2 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 66 Emergency recovery trees Figure 18: Stack part 3 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 67 Stack Figure 19: Stack part 4 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 68: Dynamic Host Configuration Protocol (Dhcp) Relay
For example, the ports that provide connection to the network core or DHCP server are not set as trusted for DHCP snooping. DHCP recovery tree About this task The following figure shows the DHCP relay recovery tree. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 69: Aaur: Configuration For The Units In The Stack Is Not Saved On The Base Unit
The typical scenario is that configuration for a unit in a stack is not saved on the base unit because the AUR Auto-Save is disabled. You can manually save the configuration of a non–base unit to the base unit regardless of the state of the AUR feature. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 70: Configuration For The Units In The Stack Is Not Saved On The Base Unit Recovery Tree
The following figure shows the recovery tree to save configuration for the units in the stack to the base unit. Check that AUR is enabled. If AUR is not enabled, either save the configuration manually or enable AUR. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 71 AAUR: configuration for the units in the stack is not saved on the base unit Procedure Figure 21: Configuration for the units in the stack is not saved on the base unit Troubleshooting Avaya ERS 4000 Series April 2014...
Page 72: Aaur: Both Units Display Yes For Ready For Replacement
(only the non–base unit should be ready for replacement in a stack of two units). The following figure shows the recovery tree to correct the issue. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 73 AAUR: Both units display yes for Ready for Replacement Procedure Figure 22: Both units display yes for Ready for Replacement Troubleshooting Avaya ERS 4000 Series April 2014...
Page 74: Daur
Diagnostic image transfer does not start recovery tree About this task The following figure shows the recovery tree to correct issues if a new unit fails to copy the diagnostic image from the stack. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 75 DAUR Procedure Figure 23: Diagnostic image transfer does not start Troubleshooting Avaya ERS 4000 Series April 2014...
Page 76: Stack Forced Mode
If you cannot access a standalone switch in a broken stack of two units, even though you had enabled the Stack Forced Mode feature, check that the standalone device still has a physical connection to the network. The following figure shows the recovery tree for this scenario. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 77: Stack Health Check: Cascade Up And Cascade Down Columns Display Link Down Or Missing
Use the recovery tree in this section if the output from the switch displays "LINK DOWN" or "MISSING" in the Cascade Up or Cascade Down columns when you issue the show stack health command. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 78: Cascade Up And Cascade Down Columns Display Link Down Or Missing Recovery Tree
The following figure shows the recovery tree to use if the output from the switch displays "LINK DOWN" or "MISSING" in the Cascade Up or Cascade Down columns when you issue the show stack health command. Procedure Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 79 Stack Health Check: Cascade Up and Cascade Down columns display LINK DOWN or MISSING Figure 25: Stack Health Check: Cascade Up and Cascade Down columns display LINK DOWN or MISSING Troubleshooting Avaya ERS 4000 Series April 2014...
Page 80: Stack Health Check: Cascade Up And Cascade Down Columns Display Up With Errors
The following figure shows the recovery tree to use if the output from the switch displays "UP WITH ERRORS" in the Cascade Up and Cascade Down columns when you issue the show stack health command. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 81 Stack Health Check: Cascade Up and Cascade Down columns display UP WITH ERRORS Procedure Figure 26: Stack Health Check: Cascade Up and Cascade Down columns display UP WITH ERRORS Troubleshooting Avaya ERS 4000 Series April 2014...
Page 82 Emergency recovery trees Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 83: Chapter 8: General Troubleshooting Of Hardware
Chapter 8: General troubleshooting of hardware Use this section for hardware troubleshooting specific to the Avaya Ethernet Routing Switch 4000 Series. Work flow: General troubleshooting of hardware About this task The following work flow assists you to determine the solution for some common hardware problems.
Page 84 General troubleshooting of hardware Procedure Figure 27: General troubleshooting of hardware Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 85: Check Power
Series utilizes a universal Power Supply Unit (PSU) that operates with voltages between 90v and 260v AC. Task flow: Check power About this task The following task flow assists you to confirm that the Avaya Ethernet Routing Switch 4000 Series device is powered correctly. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 86 87 • Observing an error report on the console on page 87 • Reloading the agent code on page 87 • Returning the unit for repair on page 88 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 87: Ensuring The Power Cord Is Installed
• Power LED blinking: corrupt flash Reloading the agent code About this task Reload the agent code on the Avaya Ethernet Routing Switch 4000 Series device to eliminate corrupted or damaged code that causes a partial boot of the device. Caution: Ensure you have adequate backup of your configuration prior to reloading software.
Page 88: Replacing The Power Cord
The power cord should be replaced to ensure the power problem is not with the cord itself. Ensure you use the same cord model as provided by Avaya. Some power cords have a fuse built into them. Ensure you replace a fused cord with the same cord model that has the same power rating.
Page 89: Confirming If The Cables Are The Correct Type
Confirming if the cables are the correct type About this task To create a stack connection, order the appropriate Avaya Ethernet Routing Switch 4000 Series cascade cables to ensure fail-safe stacking. A 1.5 foot stacking cable is included with the switch. For stacking three or more units (maximum eight units in a stack), order the 5-foot (1.5 m), 10-foot (3.0 m), 14-foot (4.3 m), or 16.4-foot (4.9 m) cables as applicable.
Page 90: Reviewing Stacking Configuration Documentation
Review the stacking configuration documentation to confirm the correct stacking cabling requirements. Review the stacking procedure and diagram for your stack configuration (cascade up or down) in the stacking section of Installing Avaya Ethernet Routing Switch 4000 Series, NN47205-300. Check port Confirm that the port and the Ethernet cable connecting the port are in proper configuration.
Page 91: Troubleshooting Avaya Ers 4000 Series April
Check port Procedure Figure 30: Check port Troubleshooting Avaya ERS 4000 Series April 2014...
Page 92: Viewing Port Information
Use the procedure in this section if you have a combo or shared port that has an SFP installed and the corresponding SFP is active, but the copper port is not. For complete information about SFP transceiver use and designation, see Installing Transceivers and Optical Components on Avaya Ethernet Routing Switch 4000 Series, NN47205-301. Enabling the port About this task Enable the port.
Page 93: Confirming The Cables Are Working
Confirm the fiber port is working and the cable connecting the port is the proper type. Task flow: Check fiber port About this task The following task flow assists you to confirm that the fiber port cable is functioning and is of the proper type. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 94 General troubleshooting of hardware Procedure Figure 31: Check fiber port Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 95: Viewing Fiber Port Information
2. Note the port status. Enabling the port About this task Ensure the port on the Avaya Ethernet Routing Switch 4000 Series device is enabled. Procedure 1. Use the no shutdown command to change the port configuration. 2. Use the show interfaces <port> command to display the port information.
Page 96: Confirming Fiber Matches Sfp/Xfp Type
Due to physical handling of the device and your physical proximity to electrical equipment, review and adhere to all safety instructions and literature included with the device and in Installation Job Aid (English) for Avaya Ethernet Routing Switch 4000 Series, NN47205-303.
Page 97: Task Flow: Replace A Unit In The Stack
Task flow: Replace a unit in the stack About this task The following task flow assists you to replace one of the Avaya Ethernet Routing Switch 4000 Series devices in a stack. This is only appropriate if old software is used or AAUR is disabled.
Page 98 • Verifying the software version is correct on the new device on page 100 • Obtaining the correct software version on page 100 • Placing a new unit on page 101 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 99: Removing A Failed Unit
AUR to automatically restore the configuration to the new unit. Removing a MAC address from the AUR cache About this task Remove the MAC address for a non-operational stack switch from the AUR address cache. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 100: Verifying The Software Version Is Correct On The New Device
Know the Release number of your software before loading it. Loading incorrect software versions may cause further complications. Procedure See Release Notes for Avaya Ethernet Routing Switch 4000 Series, NN47205-400 for software installation information. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 101: Placing A New Unit
Placing a new unit About this task Place the new unit in the stack where the failed unit was connected. Place the device in the stack in accordance with procedures outlined in Installing Avaya Ethernet Routing Switch 4000 Series, NN47205-300. Connecting stacking cables About this task Reconnect the stacking cables to correctly stack the device.
Page 102: Returning The Unit For Repair
General troubleshooting of hardware Returning the unit for repair About this task Return the unit to Avaya for repair. Contact Avaya for return instructions and RMA information. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 103: Chapter 9: Troubleshooting Adac
Otherwise, ADAC cannot detect phones using the LLDP detection mechanism. Work flow: Troubleshooting ADAC About this task The following work flow assists you to identify the type of problem you are encountering. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 104: Ip Phone Is Not Detected
IP phone is not detected Correct an IP phone that is not being detected by ADAC. Work flow: IP phone not detected About this task The following work flow assists you to resolve detection issues. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 105: Correct Filtering
Procedure Figure 34: IP phone not detected Correct filtering Configure the VLAN filtering to allow ADAC. Task flow: Correct filtering About this task The following task flow assists you to correct the filtering. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 106 1. Use the show vlan interface info <port> command to view the details. 2. Note the VLANs listed with the port. Disabling the VLAN filtering of unregistered frames About this task Change the unregistered frames filtering of the VLAN. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 107: Reload Adac Mac In Range Table
Task flow: Reload ADAC MAC in range table About this task The following task flow assists you to place the ADAC MAC address in the range table. Procedure Figure 36: Reload ADAC MAC in range table Troubleshooting Avaya ERS 4000 Series April 2014...
Page 108: Reduce Lldp Devices
Reduce the number of LLDP devices. More than 16 devices may cause detection issues. Task flow: Reduce LLDP devices About this task The following task flow assists you to reduce the number of LLDP devices on the system. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 109: Viewing Lldp Information
1. Use the show lldp port 1 neighbor command to identify the LLDP devices. 2. Note if there are more than 16 LLDP-enabled devices on the port. Reducing LLDP enabled devices About this task Reduce the number of LLDP devices on the system. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 110: Auto Configuration Is Not Applied
Correct some common issues that may interfere with auto configuration of devices. Task flow: Auto configuration is not applied About this task The following task flow assists you to solve auto configuration issues. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 111: Correct Auto Configuration
Tagged frames mode may be causing a problem. In tagged frames mode, everything is configured correctly, but auto configuration is not applied on a telephony port. Task flow: Correct auto configuration About this task The following task flow assists you to correct auto configuration. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 112 About this task Display the global status of ADAC. Procedure 1. Use the show adac command to display the ADAC information. 2. Note if the oper state is showing as disabled. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 113: Check Status And Number Of Devices
Replace the unit to replicate configuration if AUR is enabled. Procedure 1. Follow the replacement guidelines in Configuring Systems on Avaya Ethernet Routing Switch 4000 Series, NN47205-500. 2. Refer to the unit replacement section in the Troubleshooting Hardware section of this document.
Page 114 Viewing ADAC port status About this task Display the status of ADAC on the port. Procedure 1. Use the show adac in <port> command to display the ADAC information for the port. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 115 About this task Administratively disable and enable the port to initialize the configuration. Procedure 1. Use the no adac enable <port> command to disable ADAC. 2. Use the adac enable <port> command to enable ADAC. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 116 Troubleshooting ADAC Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 117: Chapter 10: Troubleshooting Authentication
Authentication issues can interfere with device operation and function. The following work flow shows common authentication problems. Work flow: Troubleshooting authentication About this task The following work flow shows typical authentication problems. These work flows are not dependant upon each other. Procedure Figure 41: Troubleshooting authentication Troubleshooting Avaya ERS 4000 Series April 2014...
Page 118: Change Radius Password
Before you begin • Enable MS-CHAPv2 encapsulation on the switch in order to change the RADIUS password. Follow the steps in Configuring Security on Avaya Ethernet Routing Switch 4000 Series NN47205-505. • Use this feature in conjunction with password fallback. Follow the steps in Configuring Systems on Avaya Ethernet Routing Switch 4000 Series NN47205-500.
Page 119: Limitations
Open Continuity Mode enabled, the RADIUS Reachability mechanism is triggered when no response is received from the RADIUS Server. EAP client authentication This section provides troubleshooting guidelines for the EAP and NEAP features on the Avaya Ethernet Routing Switch 4000 Series devices. Work flow: EAP client is not authenticating...
Page 120: Restore Radius Connection
Troubleshooting authentication Procedure Figure 42: EAP client is not authenticating Restore RADIUS connection Ensure that the RADIUS server has connectivity to the device. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 121 The following task flow assists you to restore the connection to the RADIUS server. Procedure Figure 43: Restore RADIUS connection Getting correct RADIUS server settings for the switch About this task This section provides troubleshooting guidelines for obtaining the RADIUS server settings. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 122: Viewing Radius Information
About this task Reset the shared secret in case there was any corruption. Procedure 1. Use the radius server host key command. 2. Refer to the vendor documentation for server configuration. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 123: Enable Eap On The Pc
Task flow: Enable EAP on the PC About this task The following task flow assists you to ensure the PC network card has EAP enabled. Procedure Figure 44: Enable EAP on the PC Troubleshooting Avaya ERS 4000 Series April 2014...
Page 124: Apply The Method
3. Ensure the card is configured to support EAP. Apply the method Ensure you apply the correct EAP method. Task flow: Apply the method About this task The following task flow assists you to apply the correct EAP method. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 125: Configuring The Radius Server
Configure the RADIUS server to authenticate using MD5. Procedure 1. Obtain network information for the RADIUS Server from Planning and Engineering. 2. Save the information for later reference. Enable EAP globally Enable EAP globally on the 4000 Series device. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 126: Task Flow: Enable Eap Globally
Troubleshooting authentication Task flow: Enable EAP globally About this task The following task flow assists you to enable EAP globally on the Avaya Ethernet Routing Switch 4000 Series device. Procedure Figure 46: Enable EAP globally Enabling EAP globally About this task Enable EAP globally on the Avaya Ethernet Routing Switch 4000 Series device.
Page 127: Viewing Eapol Settings
EAP multihost repeated re-authentication issue Procedure 1. Use the eapol enable command to enable EAP globally on the Avaya Ethernet Routing Switch 4000 Series device. 2. Ensure that there are no errors after command execution. Viewing EAPOL settings About this task Review the EAPOL settings to ensure EAP is enabled.
Page 128: Task Flow: Eap Multihost Repeated Re-Authentication Issue
When the number of authenticated users reaches the allowed maximum, lower the eap-mac- max to the exact number of EAP users that may soon enter to halt soliciting EAP users with multicast requests. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 129 Obtain the exact number of EAP users that may soon enter when the number of authenticated users reaches the allowed max. Procedure Use the show eapol multihost status command to display the authenticated users. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 130: Set Eapol Request Packet
Set EAPOL request packet Change the request packet generation to unicast. Task flow: Set EAPOL request packet About this task The following task flow assists you to set the EAPOL request packet to unicast. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 131 2. Ensure that there are no errors after execution. Setting EAPOL request packet for a port About this task Change the EAPOL request packet from multicast to unicast for a specific port. Procedure 1. Enter the Interface Configuration mode. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 132: Eap Radius Vlan Is Not Being Applied
About this task The following work flow assists you to determine the cause and solution of the RADIUS VLAN not being applied. Procedure Figure 50: EAP Radius VLAN is not being applied Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 133: Configure Vlan At Radius
Correct any discrepancies in VLAN information at the RADIUS server. Task flow: Configure VLAN at RADIUS About this task The following task flow assists you to ensure the VLAN is configured at the RADIUS server. Procedure Figure 51: Configure VLAN at RADIUS Troubleshooting Avaya ERS 4000 Series April 2014...
Page 134: Configure The Switch
• Tunnel-Medium-Type – 802 • Tunnel-Pvt-Group-ID – <VLAN ID> • Tunnel-Type – Virtual LANs (VLAN) Configure the switch The VLAN must be configured correctly on the Avaya Ethernet Routing Switch 4000 Series device. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 135: Task Flow: Configure Switch
Configure the switch Task flow: Configure switch About this task The following task flows assist you to configure the VLAN on the device. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 136 Troubleshooting authentication Procedure Figure 52: Configure switch task part 1 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 137: Showing Eapol Multihost
Showing EAPOL multihost About this task Identify the EAPOL multihost information. Procedure 1. Use the show eapol multihost command to display the multihost information. 2. Note the state of Allow Use of RADIUS Assigned VLANs. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 138: Enabling Use Of Radius Assigned Vlans
About this task Display the VLAN config control information. Procedure 1. Use the show vlan config control command to display information. 2. Identify if the config control is set to strict. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 139: Changing Vlan Config From Strict To Flexible
Configure the VLAN that was assigned by RADIUS to the correct Spanning Tree Group. Procedure 1. Use the spanning-tree stp <1-8> vlans command to make the change. 2. Review the output to identify that the change was made. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 140: Configured Mac Is Not Authenticating
Procedure Figure 54: Configured MAC is not authenticating Configure the switch Configure the switch to ensure the correct settings are applied to ensure the MAC is authenticating. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 141 Configured MAC is not authenticating Task flow: Configure the switch About this task The following task flows assist you to ensure that the MAC is authenticating on the Avaya Ethernet Routing Switch 4000 Series device. Troubleshooting Avaya ERS 4000 Series...
Page 142 Troubleshooting authentication Procedure Figure 55: Configure the switch part 1 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 143 Display the EAPOL port information Procedure 1. Use the show eapol port <port> command to display the port information. 2. Ensure that EAP is enabled globally, and that the port EAP status is set to auto. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 144 1. Use the eapol multihost allow-non-eap-enable command to allow non- EAPOL clients. 2. Ensure that there are no errors after execution. Showing EAPOL multihost interface About this task Display the EAPOL multihost interface information. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 145 Ensuring MAC is in the list About this task Add the MAC address to the list if it was omitted. Procedure 1. Use the show eapol multihost non-eap-mac status <port> command to view MAC addresses. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 146: Non-Eap Radius Mac Not Authenticating
About this task The following work flow assists you to determine the cause of and solution for a RADIUS MAC that does not authenticate. Procedure Figure 57: NEAP RADIUS MAC not authenticating Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 147: Configure Switch
Correct the switch configuration to correct the issue with RADIUS MAC. Task flow: Configure switch About this task The following task flows assist you to configure the Avaya Ethernet Routing Switch 4000 Series device to correct the RADIUS MAC issue. Procedure...
Page 148 Enabling RADIUS to authenticate non-EAPOL clients on page 150 • Formatting non-EAPOL RADIUS password attribute on page 150 • Displaying EAPOL multihost interface on page 150 • Enabling RADIUS To Auth non-EAP MACs on page 150 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 149 Procedure 1. Enter the show eapol multihost command to display the information. 2. Note the following: • Use RADIUS To Authenticate NonEAPOL Clients is enabled. • Non-EAPOL RADIUS password attribute format is IpAddr.MACAddr.PortNumber Troubleshooting Avaya ERS 4000 Series April 2014...
Page 150: Radius Server Configuration Error
Apply any changes to the RADIUS server using vendor documentation. RADIUS server configuration error The RADIUS server requires that the correct MAC address and password for the Avaya Ethernet Routing Switch 4000 Series device be configured. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 151: Non-Eap Mhsa Mac Is Not Authenticating
About this task The RADIUS server requires that the MAC and password for the Avaya Ethernet Routing Switch 4000 Series device be correct. If it is incorrect, the Avaya Ethernet Routing Switch 4000 Series device may not authenticate. See the vendor documentation for the RADIUS server for details.
Page 152 Configure switch Configure the switch to enable MHSA. Task flow: Configure switch About this task The following task flows assist you to enable MHSA on the Avaya Ethernet Routing Switch 4000 Series device. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 153 Non-EAP RADIUS MAC not authenticating Procedure Figure 62: Configure switch part 1 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 154 Review the EAPOL port information. Procedure 1. Enter the show eapol port <port#> command to display the information. 2. Ensure that global EAP is enabled and that the port status is eap-auto. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 155 Apply changes to the RADIUS server using vendor documentation. Showing EAPOL multihost interface About this task Review the EAPOL multihost information. Procedure 1. Enter the show eapol multihost interface <port#> command to display the information. 2. Note the following: Troubleshooting Avaya ERS 4000 Series April 2014...
Page 156: Eap-Non-Eap Unexpected Port Shutdown
The following work flow assists you to determine the solution for EAP–non-EAP ports experiencing a shutdown. Procedure Figure 64: EAP-NEAP unexpected port shutdown Configure switch Configure ports to allow more unauthorized clients. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 157 Figure 65: Configure switch Showing logs About this task Display log information to provide additional information. Procedure 1. Use the show logging command to display the log. 2. Observe the log output and note anomalies. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 158 1. Use the eap status unauthorized command to set the administrative state of the port to forced unauthorized. 2. Use the eapol status auto command to change to eap-auto. 3. In the Interface Configuration Mode, use the shut/no shut commands. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 159: Non-Eap Is Not A Member Of A Vlan
Otherwise, the password is printed as a string of asterisks. Using Trace Use trace to observe the status of a software module at a given time. Follow the steps in Configuring System Monitoring on Avaya Ethernet Routing Switch 4000 Series NN47205-502. Note: If the trace level is set to a higher level (3 or above), a large number of messages are displayed in CLI.
Page 160: Block Subsequent Mac Authentication
MAC authentications if the RADIUS-assigned VLAN is different than the first authorized station VLAN. Follow the steps in Configuring Security on Avaya Ethernet Routing Switch 4000 Series NN47205-505 to configure this feature.
Page 161: 802.3At Lldp Based Discovery
[…] 802.3at LLDP based discovery ERS 4000 Series PWR+ devices support the IEEE 802.3at-2009 standard for an Link Layer Discovery Protocol (LLDP) configuration with a Powered Device (PD). The LLDP support for PoE+ is added by extending the existing standard LLDP DOT3 Power via MDI TLV defined by the IEEE 802.1ab with the new fields and values defined in the IEEE 802.3at-2009 standard.
Page 162 Source: Primary Priority: Low PSE: PD requested power: 23.0 Watts PSE: PSE allocated power: 23.0 Watts LinkAggr: not aggregatable/not aggregated AggrPortID: MaxFrameSize: 9216 PMD auto-neg: 10Base(T, TFD), 100Base(TX, TXFD), (FdxA)Pause, 1000Base(TFD) ------------------------------------------------------------------------------- Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 163: Run Scripts
5.800 Run scripts According to Avaya best practices for converged solutions, you can use the scripts to configure the parameters for an Avaya stackable Ethernet Switch. The scripts can be executed in a default or verbose mode. In this release, run scripts are available in non-verbose and verbose mode for IP Office, and verbose mode for Link Layer Discovery Protocol (LLDP) and Auto Detect Auto Configuration (ADAC).
Page 164: Link-State Tracking
Link-state tracking (LST) binds the link state of multiple interfaces. The Link-state tracking feature identifies the upstream and downstream interfaces. The associations between these two interfaces form link-state tracking group. Follow the steps in Configuring Systems on Avaya Ethernet Routing Switch 4000 Series NN47205-500. Guidelines Follow these guidelines when using Link-state tracking: •...
Page 165 Status: Enabled VLACP Upstream State: Active on Ports : 2,4 Trunks : 1 Operational Status: Upstream Ports: 1(Up) 2(Down) 3(Down) 4(Down) Upstream Trunks: 1(Down) Downstream Ports: 11(Up) 12(Down) 13(Down) 14(Up) Downstream Trunks: 2(Down) Troubleshooting Avaya ERS 4000 Series April 2014...
Page 166 Troubleshooting authentication Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 167: Chapter 11: Troubleshooting Ipv6
This chapter contains details about how to troubleshoot common IPv6 problems you may encounter. Troubleshooting IPv6 work flow About this task This workflow will assist you to identify common scenarios related to IPv6 that you can troubleshoot. Procedure Troubleshooting Avaya ERS 4000 Series April 2014...
Page 168: Device Not Responding To Ping To Its Ipv6 Address
When you ping the IPv6 address from another host, the ping fails. Device not responding to ping to its IPv6 address task flow About this task Use these task flows to restore the connectivity through IPv6. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 169 Device not responding to ping to its IPv6 address Procedure Figure 66: Task flow: Device not responding to ping to its IPv6 address part 1 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 170: Displaying Ipv6 Interface Information
1. Use the show ipv6 global command to display the IPv6 global status. 2. Use the show ipv6 interface command to display the IPv6 interface status. 3. Ensure the admin-status is set to enabled. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 171: Enabling Ipv6 Interface On Management Vlan
Displaying IPv6 global information About this task Use the procedure in this section to display IPv6 global information for the device. Procedure 1. Use the show ipv6 global command to display the IPv6 global information. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 172: Enabling Ipv6
Use the procedure in this section to display the IPv6 interface information. Procedure 1. Use the show ipv6 interface command to display the IPv6 interface information. 2. Observe that the global IPv6 address has preferred status. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 173: Showing Logging
Use the IPv6 interface link-local <WORD 0-19> command to configure a new link-local ID. Cannot ping IPV6 host from device console When you ping an IPv6 address from the device, the ping fails. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 174: Cannot Ping Ipv6 Host From Device Console Task Flow
Use the procedure in this section to show the IPv6 neighbor information. Procedure 1. Use the show ipv6 neighbor <IPv6 address> command to display the details of the IPv6 neighbor. 2. Identify if the state is INCOMPLETE. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 175: Checking Remote Host Integrity
The global address was found to be a duplicate, indicating that another node in the link scope already has the same address. Duplicate address detected (global IPv6 address) About this task Use this task flow to restore the connectivity through IPv6. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 176: Displaying Ipv6 Neighbor Information
IPv6 neighbor. 2. Identify if the state is INCOMPLETE. Checking remote host integrity About this task Use the procedure in this section to check the IPv6 integrity of the remote host. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 177: Duplicate Address Detected (Link-Local Address)
The global address was found to be a duplicate, indicating that another node in the link scope already has the same address. Duplicate address detected (link-local address) About this task Use this task flow to restore the connectivity through IPv6. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 178: Displaying Ipv6 Interface Information
About this task Use the procedure in this section to show the IPv6 interface information. Procedure 1. Use the show ipv6 interface <IPv6 address> command to display the details of the IPv6 neighbor. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 179: Viewing The System Log
This taskflow assists you to correct connections from outside the local subnet (routed) to or from the device through its IPv6 default gateway. Cannot connect through IPv6 default gateway About this task Use this task flow to restore the connectivity through IPv6. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 180: Checking The Ipv6 Default Gateway Status
Use the procedure in this section to check the IPv6 default gateway status. Procedure 1. Use the show ipv6 default-gateway command to display the status of the gateway. 2. Confirm that the status is ReachableInRtm. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 181: Pinging The Ipv6 Default Gateway
This taskflow assists you to correct issues with IPv6 management traffic that is not correctly sent or received. IPv6 management traffic is not sent/received as expected About this task Use this task flow to correct issues with IPv6 management traffic that is not correctly sent or received. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 182: Checking The Ipv6 Configuration
Checking the IPv6 configuration About this task Use the procedure in this section to check the IPv6 configuration. Procedure Use the show ipv6 default-gateway command to display the status of the gateway. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 183: Checking The Ipv6 Statistics
This taskflow assists you to correct IPv6 connectivity for Telnet, Web, or SSH protocols. IPV6 telnet/http/ssh to device does not work About this task Use this task flow to correct IPv6 connectivity for Telnet, Web, or SSH protocols. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 184: Checking The Ipv6 Configuration
Checking the IPv6 configuration About this task Use the procedure in this section to check the IPv6 configuration. Procedure Use the show ipv6 default-gateway command to display the status of the gateway. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 185: Checking Tcp Statistics
This task flow assists you to correct UDPv6 connectivity issues. UDPv6 communication does not work About this task Use this task flow to correct IPv6 connectivity issues for Telnet, Web, or SSH protocols. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 186: Checking The Ipv6 Configuration
Figure 74: Task flow: UDPv6 communication does not work Checking the IPv6 configuration About this task Use the procedure in this section to check the IPv6 configuration. Procedure Use the show ipv6 global command to display IPv6 configurations. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 187: Checking Udp Statistics
Max IPv6 addresses per interface exceeded. Cannot set IPv6 address About this task This task flow assists you when you set an IPv6 address and it fails with the following reason: Max IPv6 addresses per interface exceeded. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 188: Displaying The Ipv6 Address Interface
Troubleshooting IPv6 Procedure Figure 75: Task flow: Cannot set IPv6 address Displaying the IPv6 address interface About this task Use the procedure in this section to display the IPv6 address interface information. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 189: Deleting The Ipv6 Address
Configuring new IPv6 gateway address About this task Use the procedure in this section to configure a new gateway IPv6 address. Procedure 1. Use the ipv6 default-gateway <IPv6 address> command to configure the gateway IPv6 address. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 190 Troubleshooting IPv6 2. Observe the command output. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 191: Chapter 12: Troubleshooting Xfp/Sfp
This section describes how you can ensure an XFP or SFP device is connected. XFP/SFP device not detected task flow About this task This following task flow steps you through the procedures to ensure an XFP or SFP device is connected. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 192: Confirming Device Is Supported
See the following XFP and SFP documentation to confirm that the device is supported on the switch: • Release Notes for Avaya Ethernet Routing Switch 4000 Series, NN47205-400 • Installing Transceivers and Optical Components on Avaya Ethernet Routing Switch 4000...
Page 193: Understanding Limitations Of Some Sfps
3. Use the show interfaces gbic-info port <port number> command to view device information for a specific port. 4. Use Web-based management to view device information by navigating to Summary, Switch Information, Pluggable Port 5. Identify any unsupported devices. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 194: Replacing Device
Use this procedure to replace a device. Procedure 1. See XFP and SFP documentation to familiarize yourself with the installation instructions. 2. Connect the SFP or XFP to a different SFP or XFP cage. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 195: Chapter 13: Troubleshooting Igmp
• Multicast packets flooding network on page 195 • Multicast packets not flooding network on page 201 Multicast packets flooding network This section describes how you can disable multicast flooding on a network. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 196: Multicast Packets Flooding Network Task Flow
Multicast packets flooding network task flow About this task The following task flow steps you through the procedures to disable multicast flooding on the network. Procedure Figure 78: Task flow: Multicast packets flooding network Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 197: Viewing Igmp Snoop Settings
4. Observe the displayed information. Variable Definitions Variable Definition <vid> Specifies the VLAN ID between 1 and 4094. Job aid The following table describes the output of the command show ip igmp interface. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 198 Indicates whether the ip igmp send-query feature is enabled or disabled. Values are YES or NO. Default is disabled. The following table describes the output of the command show ip igmp snooping. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 199: Viewing Igmp Multicast Groups
2. Observe the displayed information. Job aid The following table describes the output of the command. Field Description Group Address Indicates the multicast group address VLAN Indicates the VLAN interface on which the group exists. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 200: Showing Settings For Flooding Multicast Packets
When it is enabled, all packets that have as destination a multicast MAC address for which an IGMP group is not created are discarded. Otherwise, if this option is Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 201: Disabling Multicast Packets
This section describes how you can enable multicast flooding on a network. Multicast packets not flooding network task flow About this task The following task flow steps you through the procedures to enable multicast flooding on the network. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 202 Viewing IGMP snoop settings on page 203 • Viewing IGMP multicast groups on page 205 • Showing settings for flooding multicast packets on page 206 • Enabling multicast packets on page 207 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 203: Viewing Igmp Snoop Settings
Indicates the VLAN on which IGMP is configured. Query Intvl Specifies the frequency (in seconds) at which host query packets are transmitted on the interface. Vers Specifies the version of IGMP configured on this interface. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 204 Field Description Vlan Indicates the VLAN ID. Snoop Enable Indicates whether snoop is enabled (true) or disabled (false). Proxy Snoop Enable Indicates whether IGMP proxy is enabled (true) or disabled (false). Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 205: Viewing Igmp Multicast Groups
(host or IGMP reporter). The IP address is 0.0.0.0 if the type is static. Expiration Indicates the time left before the group report expires. This variable is updated upon receiving a group report. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 206: Showing Settings For Flooding Multicast Packets
MAC address for which an IGMP group is not created are discarded. Otherwise, if this option is disabled, the unknown multicast traffic is forwarded on all ports. Default is disabled. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 207: Enabling Multicast Packets
Enabling multicast packets About this task Use this procedure to enable the multicast flooding. Procedure 1. Use the unknown-mcast-allow-flood command to enable multicast flooding. 2. Observe the command output. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 208 Troubleshooting IGMP Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 209: Chapter 14: Troubleshooting Rstp Snmp Traps
Use this task flow to help you ensure that RSTP SNMP traps are received. No RSTP SNMP traps are received task flow About this task The following task flow helps you to ensure that RSTP SNMP traps are received. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 210 Troubleshooting RSTP SNMP traps Procedure Figure 81: Task flow: No RSTP SNMP traps are received Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 211: Viewing Rstp Configuration
Bridge Forward Delay Time: 15 seconds Tx Hold Count: Path Cost Default Type: 32-bit STP Traps: Disabled Enabling RSTP traps About this task Use the procedure in this section to enable RSTP traps. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 212: Viewing Ip Manager Configuration
Disabled WEB Access: Enabled SSH Access: Enabled Enabling SNMP About this task Use the procedure in this section to enable SNMP. Procedure 1. Use the snmp-server enable command to enable SNMP. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 213: Viewing Trap Receiver Configuration
2. Observe the command output. Variable Definitions Variable Definition IP address IPv4 address of the server host Configuring SNMPv2 trap receiver About this task Use the procedure in this section to configure an SNMPv2 trap receiver. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 214: Configuring Snmpv3 Trap Receiver
2. Use the snmp-server host <IP address> v3 no-auth <user> command to configure the community string. Variable Definitions Variable Definition IP address IPv4 address of the server host user The user that has been defined for sending SNMPv3 traps Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 215: Chapter 15: Troubleshooting Spbm
Max LSP Gen Interval : 900 Min LSP Gen Interval : 30 Metric : wide Overload : true Csnp Interval : 10 PSNP Interval : 2 Rxmt LSP Interval : 5 spf-delay : 100 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 216: Displaying Spbm Configuration
IFIDX LEVEL CKTID -------------------------------------------------------------------------------- Port1/20 Level 1 Displaying SPBM configuration About this task Use the following procedure to display the SPBM IS-IS configuration. Procedure 1. Display SPBM configuration: show isis spbm Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 217 3/6,1/20 03:10:02:00:03:e9 1001 00aa.bbcc.0002 VSP-2 03:10:01:00:03:e9 1001 00aa.bbcc.0001 ERS-1 3/6,1/20 03:10:02:00:03:e9 1001 00aa.bbcc.0002 VSP-2 ERS-1# show isis spbm nick-name ===================================================== ISIS SPBM NICK-NAME ===================================================== LSP ID LIFETIME NICK-NAME HOST-NAME ------------------------------------------------------------------------ 00aa.bbcc.0001.00-00 0.10.01 ERS-1 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 218: Displaying Vlan To Isid Associations
Display VLAN to ISID associations: show vlan i-sid Example ERS-1# show vlan i-sid =============================================== Vlan I-SID =============================================== VLAN_ID I-SID -------------------------------------------------------------------------------- 1000 1001 ERS-2# show vlan i-sid =============================================== Vlan I-SID =============================================== VLAN_ID I-SID -------------------------------------------------------------------------------- 1000 1001 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 219: Verifying Forwarding Database Information
00:81:00:23:00:02 00:aa:bb:cc:00:02 ERS-2 1/20 Verifying ISIS interfaces and receive protocol control packets About this task Verify ISIS interfaces and receive protocol control packets. Procedure Display ISIS interfaces and receive protocol control packets: Troubleshooting Avaya ERS 4000 Series April 2014...
Page 220: Verifying Uni Configuration
1001 C-VLAN NONE ERS-1# show vlan interface info 1/5 Filter Filter Untagged Unregistered Port Frames Frames PVID PRI Tagging Name ---- -------- ------------ ---- --- ------------- -------------- TagAll Unit 1, Port 5 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 221: Verifying Spbm Unicast Fib Entries
Port: 1/15 20 fc:a8:41:f3:9f:df fca8.41f3.9fdf apancu Port: 1/15 20 fc:a8:41:f5:04:00 fca8.41f5.0400 VSP7000 fc:a8:41:f5:04:00 fca8.41f5.0400 VSP7000 Verifying SPBM network topology About this task Verify SPBM network topology. Procedure Verify the SPBM network topology: Troubleshooting Avaya ERS 4000 Series April 2014...
Page 222: Verify Spbm Multicast Fib Entries
1001 001a.8f10.53df MERS2-8606 Port: 1/15 10 00:1a:8f:10:53:e0 1001 001a.8f10.53df MERS2-8606 Port: 1/15 10 fc:a8:41:f5:07:df 1000 fca8.41f5.07df puiub-stack fc:a8:41:f5:07:df 1001 fca8.41f5.07df puiub-stack ------------------------------------------------------------------------------- Total number of SPBM UNICAST FIB entries 6 ------------------------------------------------------------------------------- Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 223: Verifying Lsdb Information
Chksum: 0x9288 PDU Length: 419 Host_name: MERS2-8606 Attributes: IS-Type 1 TLV:1 Area Addresses: 1 Area Address:01 TLV:22 Extended IS reachability: Adjacencies: 2 fca8.41fd.0400.00(marius11) Metric:10 port id: 155 num_port 1 Metric: 10 fca8.41f3.1111.00(stack-gicu) Metric:10 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 224: Using Cfm
138 num_port 1 Metric: 10 Using CFM About this task Use CFM to diagnose the network. Procedure Use CFM to diagnose the network: cfm spbm enable show cfm l2ping l2traceroute l2tracetree Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 225: Chapter 16: Troubleshooting Sla Monitor Agent
Avaya Diagnostic Server R2.0 when it releases. Avaya Diagnostic Server will provide network-wide QoS and DSCP monitoring, along with graphical display, alarms and alerts, trend analysis, and logging.
Page 226 Troubleshooting SLA Monitor Agent Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 227: Chapter 17: Troubleshooting Dhcp/Bootp Relay
BootP/DHCP Server configured in the same subnet. Troubleshooting DHCP/BootP relay work flow About this task The following workflow helps you to identify some common issues. Procedure Figure 82: Work flow: Troubleshooting DHCP/BootP relay Troubleshooting Avaya ERS 4000 Series April 2014...
Page 228: Navigation
The following task flow helps you to verify that the relay agent IP address is the same as the one configured on the VLAN where relay is performed. Procedure Figure 83: Task flow: Cannot set the forward path Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 229: Navigation
Bootp/DHCP requests from clients do not reach Bootp/DHCP server task flow About this task The following task flows identify the procedures to identify and correct connectivity issues between a client and the DHCP or BootP server. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 230 Troubleshooting DHCP/BootP relay Procedure Figure 84: Task flow: Bootp/DHCP requests from clients do not reach Bootp/DHCP server part 1 Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 231: Troubleshooting Avaya Ers 4000 Series April
Bootp/DHCP requests from clients do not reach Bootp/DHCP server Figure 85: Task flow: Bootp/DHCP requests from clients do not reach Bootp/DHCP server part 2 Troubleshooting Avaya ERS 4000 Series April 2014...
Page 232: Viewing Ip Routing Information
Use the procedure in this section to view VLAN information. Procedure 1. Enter the show vlan ip command to view VLAN information. 2. Verify that the interfaces are enabled under the Offset Routing column. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 233: Enabling Ip Routing On Vlan
1. Enter the show ip route static command to display the IP static route information. 2. Observe the command output. Configuring IP route About this task Use the procedure in this section to configure the IP route. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 234: Viewing Global Relay Setting
Viewing VLAN relay information About this task Use the procedure in this section to display the VLAN relay configuration. Procedure 1. Enter the show vlan dhcp-relay command to display the VLAN relay configuration. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 235: Enabling Vlan Relay
1. Enter the show ip dhcp-relay fwd-path command to display the forward path configuration. 2. Ensure that the interface is enabled. Enabling the forward path About this task Use the procedure in this section to enable the forward path. Troubleshooting Avaya ERS 4000 Series April 2014...
Page 236: Selecting The Forward Path Mode
[boot | dhcp | boot-dhcp] command to configure the forward path mode. 2. Ensure that the command completes. Variable Definitions Variable Definition interface address IPv4 address of the interface server address IPv4 address of the server Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
Page 237: Bootp/Dhcp Replies From Server Do Not Reach Bootp/Dhcp Clients
The following task flow identifies the procedure to resolve issues related to Bootp/DHCP replies from the server that do not reach Bootp/DHCP clients. Procedure Figure 86: Task flow: Bootp/DHCP replies from server do not reach Bootp/DHCP clients Troubleshooting Avaya ERS 4000 Series April 2014...
Page 238: Navigation
3. Verify that a route is configured on the server and the route points to the subnet of the client. 4. Using the server documentation, configure the route if it does not exist. Troubleshooting Avaya ERS 4000 Series April 2014 Comments? infodev@avaya.com...
