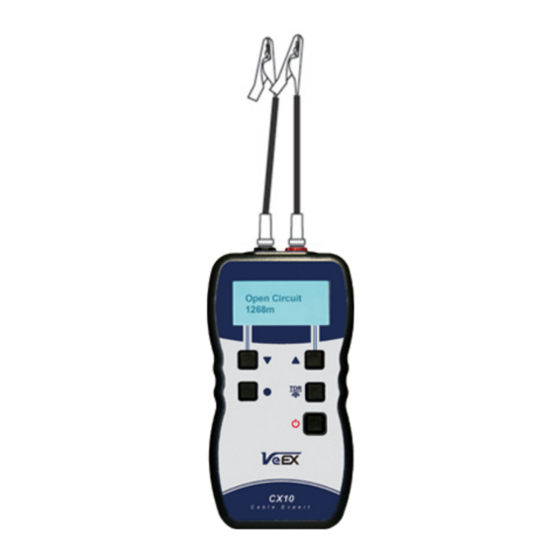

- Page 1 Th e Ve ri f ic a t i o n Ex p e rt s USER GUIDE CX10/CX10+ Cable Length Expert D07-00-036 Rev.B01...
- Page 2 In case of discrepancy, the web version takes precedence over any printed literature. This device uses software either developed by VeEX Inc or licensed by VeEX Inc from third parties. The software is confidential and proprietary of VeEX Inc. The software is protected by copyright and contains trade secrets of VeEX Inc or VeEX’s...
-
Page 3: Table Of Contents
4.2 Cable Connection ..........11 4.3 Measuring Cable Length or Fault Distance ...12 4.4 Tone Generator .............14 4.5 Typical Cable Values ..........14 4.6 ID Room Detection (CX10+ only) ......15 5. Warranty and Software ..........15 5.1 Maintenance ............17 6. Product Specifications ..........18 7. -
Page 4: Product Introduction
Velocity of Propagation (Vp) values beforehand, while automatic cable impedance compensation is another time saving feature. In the event the CX10/CX10+ is connected to a live cable, testing is suspended and audible and visual alarms alert the user. -
Page 5: Principles Of Operation
TDR then converts this time to distance and displays the information as a waveform and/or distance reading. The CX10/CX10+ works by measuring the time taken for a signal to travel to the far end of the cable under test, or to an intermediate fault, and return. -
Page 6: Basic Operation
“Voltage Detected”. Testing will be inhibited and the operator should immediately disconnect the unit from the cable. The CX10/CX10+ has been manufactured in accordance with and meets the requirements of the following standards: • SAFETY IEC 61010-1 and EN 60950 •... -
Page 7: Lcd Display
3.2 LCD Display The CX10/CX10+ is equipped with a 2x16 digit alpha- numeric LCD display. Upon power up, the screen will display: • Model # • Software version programmed into the unit • Last cable type tested • Last Vp setting •... - Page 8 • Press the arrow keys to change the options for each setting See below for information on editing the Cable Library. 3.3.1 Cable Library The CX10/CX10+ comes pre-installed with Velocity of Propagation (Vp) characteristics. Appletalk Belden 8102 Belden 9933 BT2002...
-
Page 9: Battery
3.4 Battery The CX10/CX10+ operates from 6 Volts provided by 4x1.5 Volt Alkaline batteries (AA) located in the rear of the unit. The battery life is 100 hours of continuous scanning. To preserve battery life, the units are fitted with an auto shutdown feature. -
Page 10: Operation
Note: Determining unknown Vp values If the CX10/CX10+ is to be used with a cable type for which the Vp is unknown, this value must first be determined: Take a sample of the cable at least 20m (60ft) long... -
Page 11: Cable Connection
4.2 Cable Connection Attach the test lead set to the CX10/CX10+ via the Banana or BNC connectors located at the top of the unit. • Ensure that no power supply or equipment is attached to the cable to be tested •... -
Page 12: Measuring Cable Length Or Fault Distance
Assuming there are no opens or shorts in the cable, the length of the cable will be displayed. • For lengths less than 100 meters, the displayed value will be to one decimal place: • For lengths over 100 meters, the decimal place is suppressed: CX10/CX10+ D07-00-036 Rev.B01... - Page 13 • If there is a short at some point along the cable, the display will read the distance to the short: 4.3.1 Accuracy The CX10/CX10+ measures distances to faults and cable lengths to an accuracy of ± 2%. This measurement accuracy is dependent on the correct value of Vp being used for the cable under test, and homogeneity of the Vp along the cable length.
-
Page 14: Tone Generator
4.4 Tone Generator The CX10/CX10+ can be used as a tone generator to trace and identify cables and wires. The user will need a conventional inductive tone probe within a range of 810Hz to 1110Hz. Press the TDR key to inject a warbling tone into the cable or link under test. -
Page 15: Id Room Detection (Cx10+ Only)
• Replace the hardware which proves to be defective provided that the products that the customer elects to replace are returned to VeEX Inc. by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid. - Page 16 • Replace the software and/or firmware which prove to be defective provided that the products that the customer elects to replace are returned to VeEX Inc by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid.
-
Page 17: Maintenance
Revoking the warranty: VeEX Inc. does not guarantee or warrant that the operation of the hardware, software or firmware will be uninterrupted or error-free. The warranty will not apply in any of the following cases: • Improper or inadequate maintenance by the customer •... -
Page 18: Product Specifications
165 x 90 x 37mm (6.5 x 3.5 x 1.5in) Weight 350gms (12oz) Safety IEC 61010-1, EN60950 BS/EN 61326-1 Splash Resistant/Dustproof IP54 Assumes accurate setting for velocity of propagation (Vp) of the cable under test, and homogeneity of the Vp along the cable length. CX10/CX10+ D07-00-036 Rev.B01... -
Page 19: Certifications And Declarations
Substances. Also known as Directive 2002/95/EC, it originated in the European Union and restricts the use of specific hazardous materials found in electrical and electronic products. All applicable products imported into the EU market after July 1, 2006 must pass RoHS compliance. CX10/CX10+ D07-00-036 Rev.B01... -
Page 20: About Veex
8. About VeEX VeEX Inc, the Verification Experts, is an innovative designer and manufacturer of test and measurement solutions addressing numerous technologies. Global presence through a worldwide distribution channel provides uncompromising product support. Visit us online at www.veexinc.com for the latest updates and additional documentation. - Page 21 Notes CX10/CX10+ D07-00-036 Rev.B01...
- Page 22 Notes CX10/CX10+ D07-00-036 Rev.B01...
- Page 23 Notes CX10/CX10+ D07-00-036 Rev.B01...
- Page 24 Th e Ve ri f ic a t i o n Ex p e rt s Notes © 2010 VeEX Inc. All rights reserved. VeEX Inc. VeEX is a registered trademark of VeEX Inc. The 2255 Martin Ave., Suite G information contained in this document is accurate. Santa Clara, CA 95050 USA However, we reserve the right to change any Tel: +1.408.970.9090...
