Summary of Contents for VeEX FX86

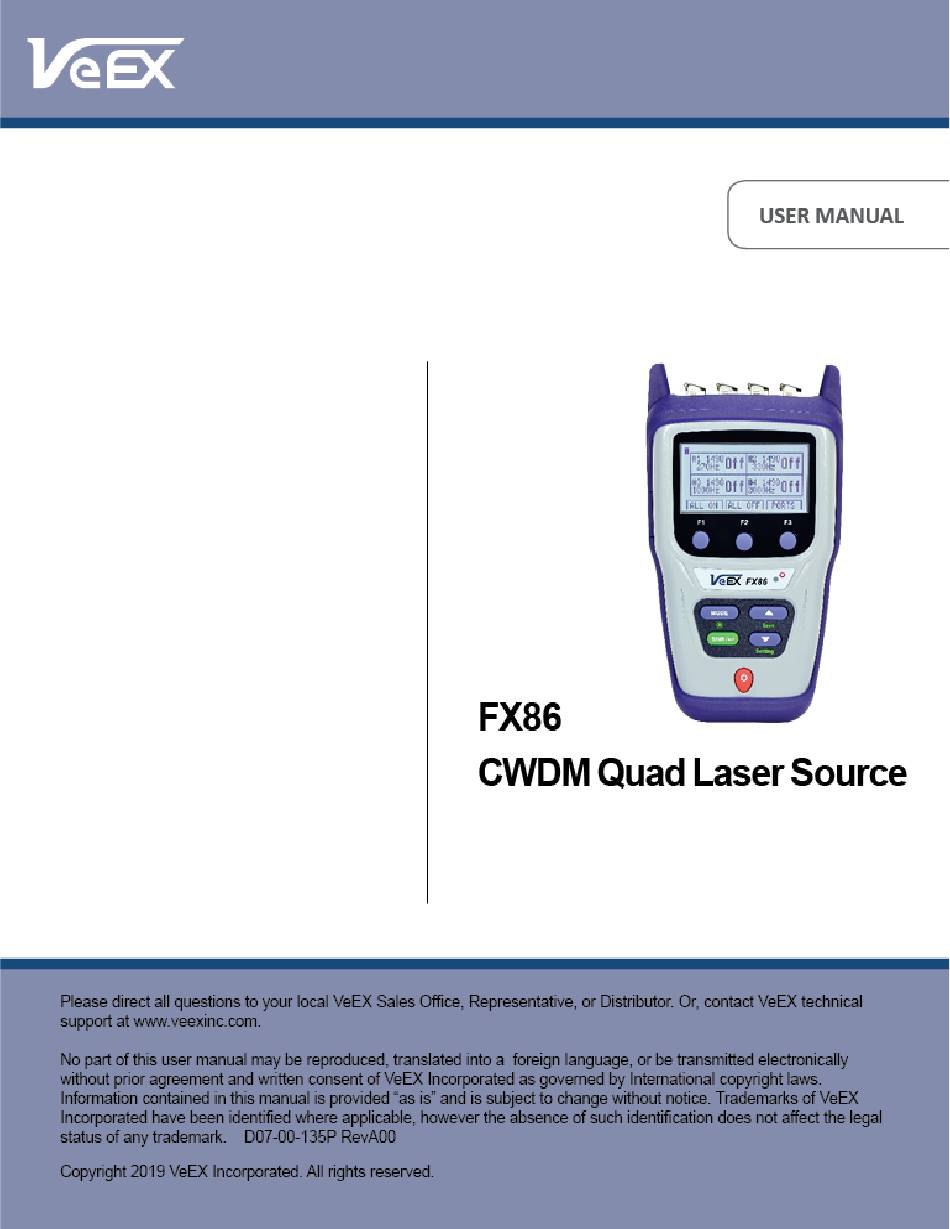

- Page 1 FX86 CWDM Quad Laser Source User Manual Page 1 of 17...
-
Page 2: Table Of Contents
Resetting your FX86 ......................10 Fiber Measurements ....................11 Optical Light Source ......................11 Warranty and Software ................... 13 Product Specifications ................... 15 Certifications and Declarations ................16 10.0 About VeEX ......................17 FX86 CWDM Quad Laser Source User Manual Page 2 of 17... -
Page 3: About This User Manual
VeEX, VePAL, Sunrise Telecom, Agizer, Optixsoft, Sunlite, Sunset, RXT, MTT, OPX, Fiberizer, FX, TX and OPX, are trademarks of VeEX, Inc. and/or its affiliates in the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies. -
Page 4: Safety Information
Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements. -
Page 5: Product Introduction
1270 – 1610 nm range incremented by 20 nm, in any combination. To make the fiber identification in a rack more convenient, the laser signal from FX86 with a calibrated wavelength (see the CDWM set of calibrated wavelengths above) is also modulated with the following frequencies: •... -
Page 6: Definitions
Variable Optical Unlike with the Fixed Optical Adapter, one or both end female Adapter: connectors of a Variable Optical Adapter can be changed to accommodate different male Optical Connectors. FX86 CWDM Quad Laser Source User Manual Page 6 of 17... -
Page 7: Basic Operation
• The LED is green when the unit is powered on. • The LED is orange when the unit is connected to the AC power port and powered off (charging). FX86 CWDM Quad Laser Source User Manual Page 7 of 17... -
Page 8: Rubber Keypad
Pairing the OLS with an OPM allows you to test for loss or end-to-end continuity on a CWDM network. 4.2.2 Service Port FX86 Service Port The service port (micro-USB) located on the left side of the device is used to charge the unit. FX86 CWDM Quad Laser Source User Manual Page 8 of 17... -
Page 9: Getting Started
Please note that FX86 works with a power meter calibrated to one of the FX86 laser wavelengths. For the power meter operations, see its manual. Before using the FX86 CWDM quad laser source for the first time, fully charge the battery and set the local date and time. -
Page 10: Instrument Settings
2. With the device OFF, press the red Power button and hold it for at least 15 seconds. The FX86 will reboot, but you will need to reset the date and time (see above). FX86 CWDM Quad Laser Source User Manual... -
Page 11: Fiber Measurements
2. To turn all ports on with the indicated frequencies, press F1 (ALL ON). To turn all ports off, press F2 (ALL OFF). 3. To set a certain frequency to a specified port, press F3 (PORTS). FX86 Port Settings Screen FX86 CWDM Quad Laser Source User Manual Page 11 of 17... - Page 12 1000 Hz, 2000 Hz). The port frequency is then saved to the device. Note that setting the port frequency when the port is off DOES NOT turn the port on, you must do it separately. FX86 CWDM Quad Laser Source User Manual Page 12 of 17...
-
Page 13: Warranty And Software
• Replace hardware which prove to be defective provided that the products that the customer elects to replace are returned to VeEX Inc. by the customer, along with Proof of Purchase, within thirty (30) days of the request by the customer, freight prepaid. - Page 14 • Unauthorized alteration or misuse • Damage occurred from operating the unit outside of the environmental specifications for the product • Improper installation by the customer FX86 CWDM Quad Laser Source User Manual Page 14 of 17...
-
Page 15: Product Specifications
Product Specifications The most recent product specifications can be found on the VeEX web site at www.veexinc.com. FX86 CWDM Quad Laser Source User Manual Page 15 of 17... -
Page 16: Certifications And Declarations
All applicable products imported into the EU market after July 1, 2006 must pass RoHS compliance. Click here for more information about RoHS compliance as it relates to VeEX products or go to www.veexinc.com. FX86 CWDM Quad Laser Source User Manual Page 16 of 17... -
Page 17: About Veex
VeEX Inc., an innovative, customer-focused communications test and measurement company, develops next-generation test and monitoring solutions for telecommunication networks and services. With a blend of advanced technologies and vast technical expertise, VeEX has developed products that diligently address all stages of network deployment, maintenance,...
