- Page 1 FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 1 of 19 FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 1 of 19 FX180X Channel Checker...
-
Page 2: Table Of Contents
4.2.2 A/B Markers ............................10 4.2.3 Active Channel Threshold ........................10 4.2.4 Pass/Fail Threshold ..........................10 4.2.5 Setting up FX180X WiFi/Bluetooth ..................... 11 ....................11 USTOMIZING THE WORKING WITH THE CHANNEL CHECKER ............13 ........................13 EPEAT WEEP ........................... 13 5.2.1... -
Page 3: About This User Manual
VeEX, VePAL, Sunrise Telecom, Agizer, Optixsoft, Sunlite, Sunset, RXT, MTT, Fiberizer, FX, TX and OPX, are trademarks of VeEX, Inc. and/or its affiliates in the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies. -
Page 4: Product Introduction
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 4 of 19 Product Introduction The FX180 Channel Checker is a handheld measurement tool for xWDM fiber networks. The C-band DWDM model can measure up to 96 ITU-T channels in a single test. It measures individual channel power and wavelength or frequency, as well as Total Span power between 2 markers. -
Page 5: Fx180 Package Contents
• FX180X test unit • AC/DC adaptor • Input: 100-240 VAC (50/60 Hz) • Output: 16VDC • Li-Ion battery (8400 mAH battery) • USB memory stick (2 Gbyte) or CD-ROM containing: • FX180X Channel Checker Users’ Manual (pdf) • Software Upgrade Instructions... -
Page 6: Safety Information
Do not operate the instrument in the presence of flammable gases or fumes or any other combustible environment. VeEX Inc. assumes no liability for the customer's failure to comply with safety precautions and requirements. -
Page 7: Basic Operation

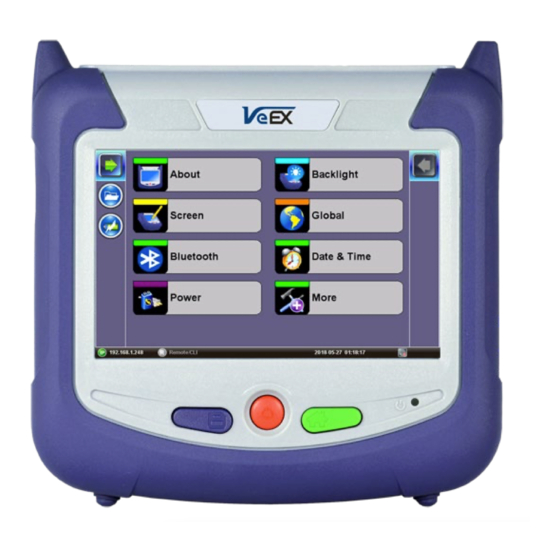

FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 7 of 19 Basic Operation FX180X Front Panel Layout The FX180 Channel Checker Meter is available for DWDM C-band network testing. Other models may be available in the future. • DWDM C-Band: 1527 - 1567nm Display Modes include: Bar Graph and Table Display views. -
Page 8: Rubber Keypad
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 8 of 19 4.1.2 Rubber Keypad • Save: Saves current test results with automatic naming and time stamping. Also saves the current screenshot. • Power: Press for 2 seconds to turn the test set ON or OFF (prevents accidental ON/OFF). -
Page 9: Getting Started With The Fx180
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 9 of 19 Getting Started with the FX180 4.2.1 View/Hide side menu panels The left and right menu panels contain icons to access key functions of the FX180. These panels can be minimized to enable a better view of the application screens. -
Page 10: A/B Markers
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 10 of 19 4.2.2 A/B Markers Use the stylus provided with the test set and select A or B markers on the touchscreen to drag the marker left or right to the point of interest. Alternatively, tap the left/right arrows whose color matches the marker. -
Page 11: Setting Up Fx180X Wifi/Bluetooth
4.2.5 Setting up FX180X WiFi/Bluetooth The FX180X unit contains an optional built-in WiFi and Bluetooth interface allowing you to transfer OSA results and upgrade software on the unit. For detailed instructions, see the V150 Series Common Functions User Manual at www.veexinc.com. - Page 12 FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 12 of 19 Power: Provides information about current power source and information about the battery gauge. EZ Remote: Settings for connecting to the unit across the Internet or Network Segments without requiring public IP addresses, port forwarding, or holes in the firewall.
-
Page 13: Working With The Channel Checker
• C-band DWDM options: 200 GHz, 100 GHz, 50 GHz ITU Grid DWDM Repeat Sweep The FX180X will measure all channels on the WDM network. Repeat Sweep: Continues sweep until DWDM measurement is terminated manually by selecting the Stop button. When in Repeat Sweep test mode, the label will change to Stop. -
Page 14: Saving Results
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 14 of 19 5.2.2 Table View All active ITU-T channels will be displayed in the table. Each channel #, peak frequency or wavelength, and channel power is displayed. ITU-T Table view Saving Results Use the Files menu on the home page left panel to access File Management functions. For detailed instructions, see the V150 Series Common Functions User Manual at www.veexinc.com. -
Page 15: Warranty And Software
Replace hardware which prove to be defective provided that the products that the customer elects to replace are returned to VeEX Inc. by the customer, along with Proof of Purchase, within thirty (30) days of the request by the customer, freight prepaid. - Page 16 FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 16 of 19 • Unauthorized alteration or misuse • Damage occurred from operating the unit outside of the environmental specifications for the product • Improper installation by the customer...
-
Page 17: Product Specifications
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 17 of 19 Product Specifications The most recent product specifications can be found on the VeEX web site at www.veexinc.com. -
Page 18: Certifications And Declarations
All applicable products imported into the EU market after July 1, 2006 must pass RoHS compliance. For more information about RoHS as it relates to VeEX Inc, go to the VeEX web site at www.veexinc.com. -
Page 19: About Veex
FX180X Channel Checker e-Manual, D07-00-128P-RevA00 Page 19 of 19 About VeEX VeEX Inc., the Verification EXperts, is an innovative designer and manufacturer of test and measurement solutions addressing numerous technologies. Global presence through a worldwide distribution channel provides uncompromised product support.
