Chapter 6: Actual values

Actual values

This chapter outlines viewing of data on the front panel and in the software.

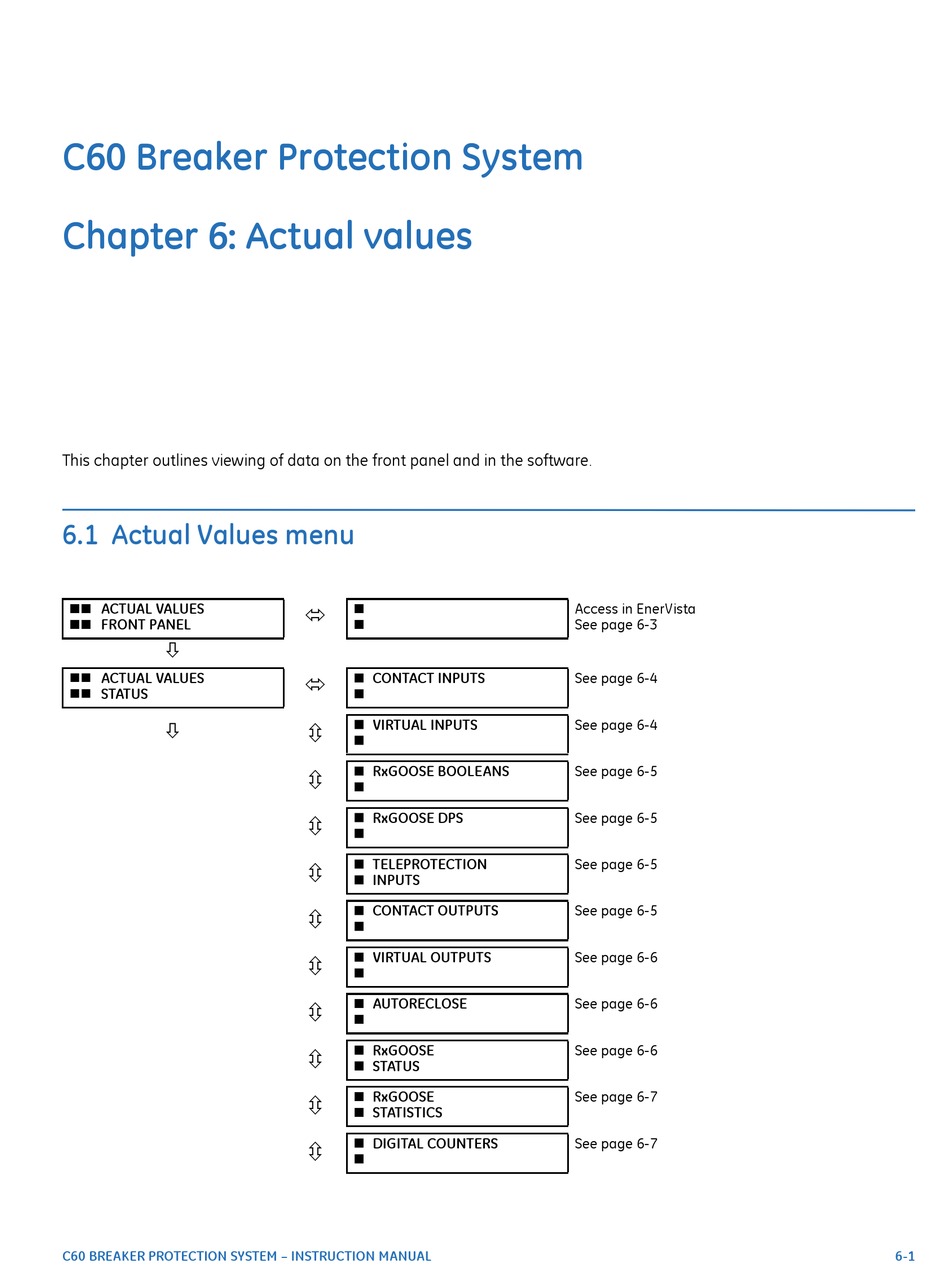

6.1 Actual Values menu

 ACTUAL VALUES
 FRONT PANEL

 ACTUAL VALUES
 STATUS

C60 BREAKER PROTECTION SYSTEM – INSTRUCTION MANUAL



 CONTACT INPUTS


 VIRTUAL INPUTS


 RxGOOSE BOOLEANS


 RxGOOSE DPS


 TELEPROTECTION

 INPUTS
 CONTACT OUTPUTS


 VIRTUAL OUTPUTS


 AUTORECLOSE


 RxGOOSE

 STATUS
 RxGOOSE

 STATISTICS
 DIGITAL COUNTERS


Access in EnerVista
See page 6-3
See page 6-4
See page 6-4
See page 6-5
See page 6-5
See page 6-5
See page 6-5
See page 6-6
See page 6-6
See page 6-6
See page 6-7
See page 6-7
