Product Appearance

Front Panel

LED
Solid green
POWER
No light
Solid green
DSL
Blinking green
No light
Solid green
INTERNET
Solid red
No light

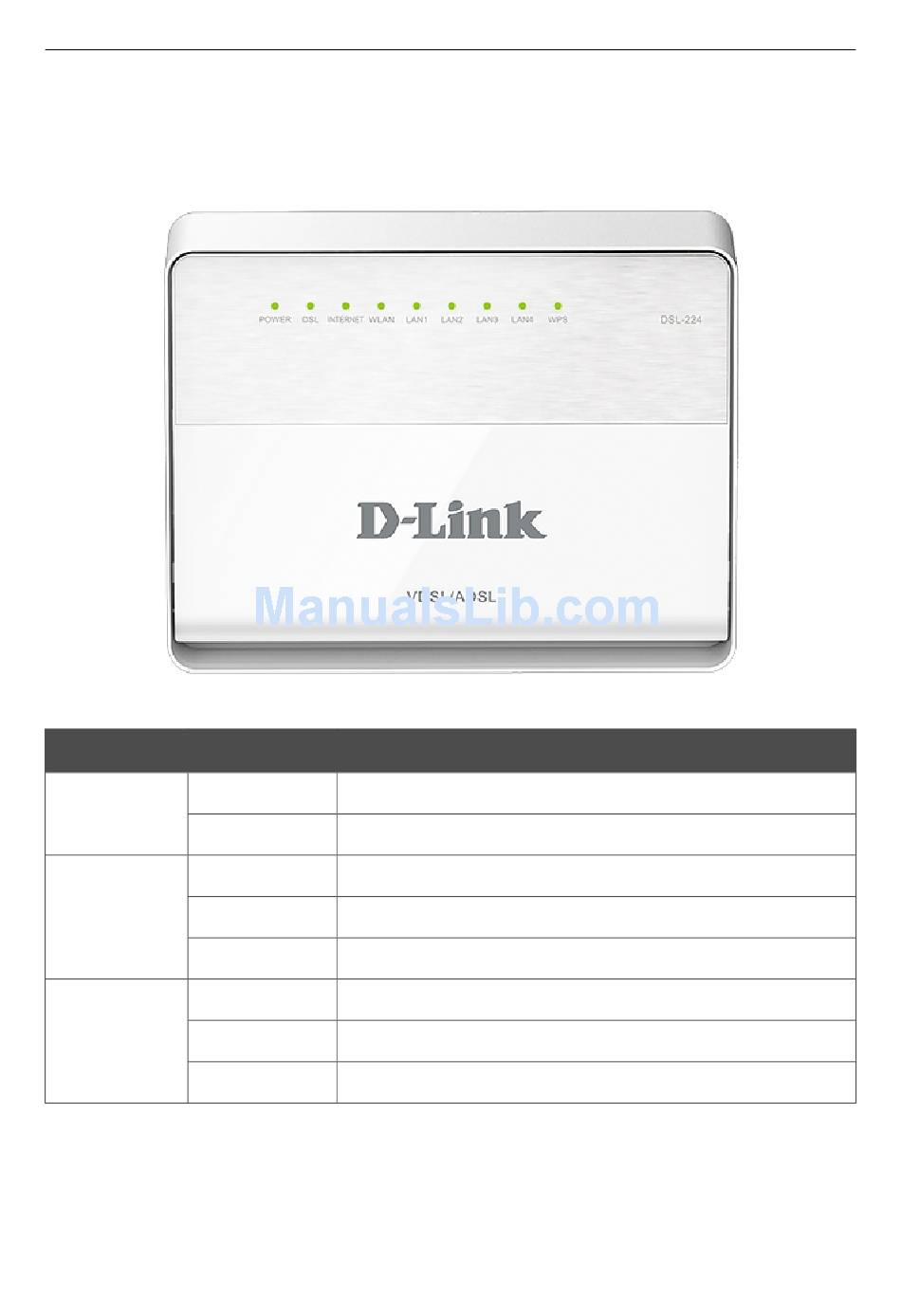

Figure 1. Front panel view.
Mode
The router is powered on.
The router is powered off.
DSL has been synchronized.
Detecting a carrier signal and synchronizing DSL.
No carrier signal.
The default WAN connection is active.
The router is in the crash recovery mode.
The default WAN connection is not active.
Page 9 of 168
