DOOR PANEL INSTALLATION

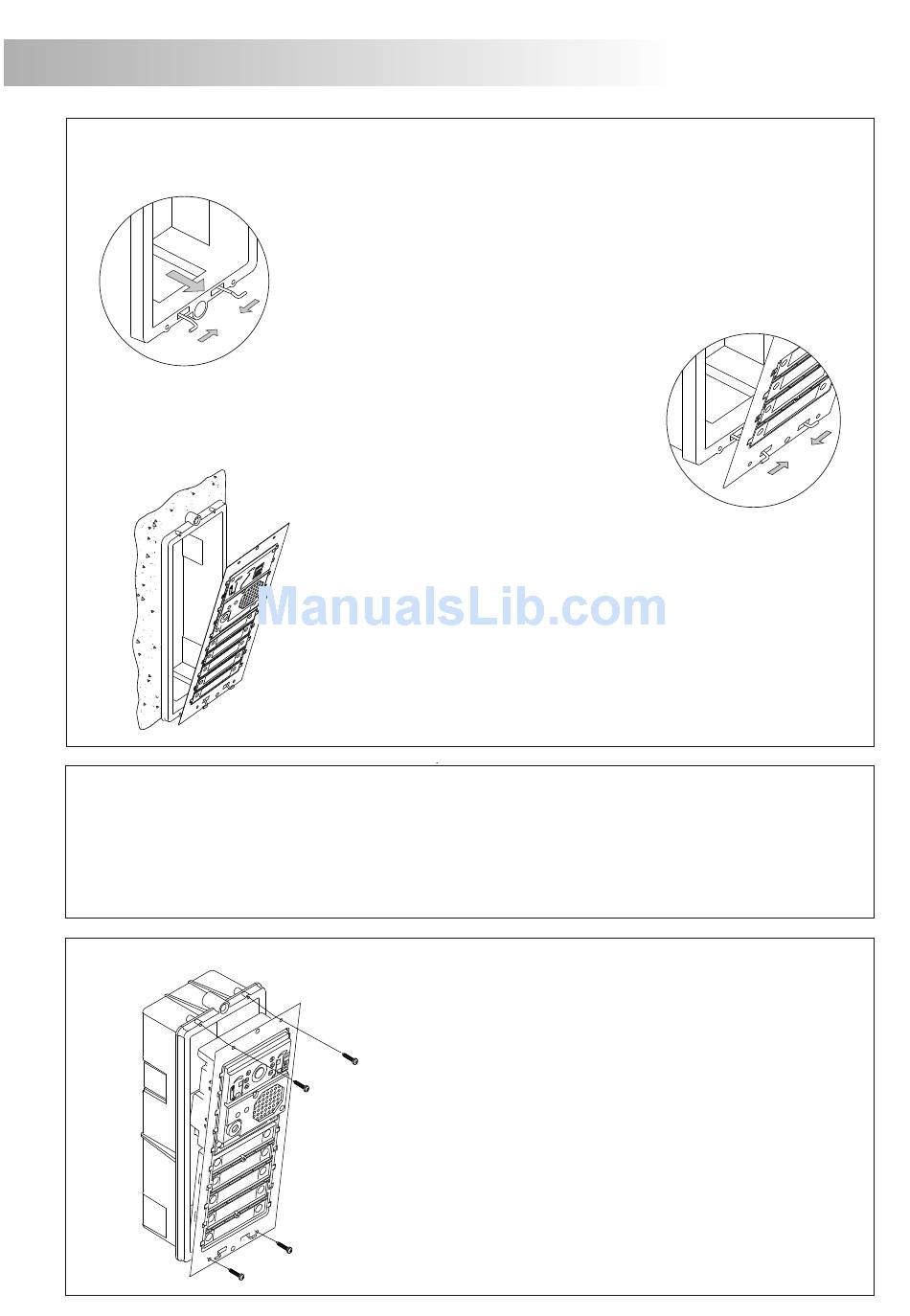

H
old the frame on the embedding box.
To hold the frame on the embedding box, insert the hinge in the
housings arranged for this purpose in the frame, as shown in
the drawing.
C
onnection and configuration.
For connection push buttons, nameplate labels, configuration, adjustments and
programming, see the manual supplied with the sound module.
Insert the hinge that it is supplied with the product in the embedding
box, as shown in the drawing.
The frame can now be folded horizontally facilitating the connection
and adjustments in the sound module and push buttons electronic
module.
Once finished the works of wiring, configuration and final
adjustments, fix the frame in the embedding box with the
supplied screws.
25
C
lose the frame.
