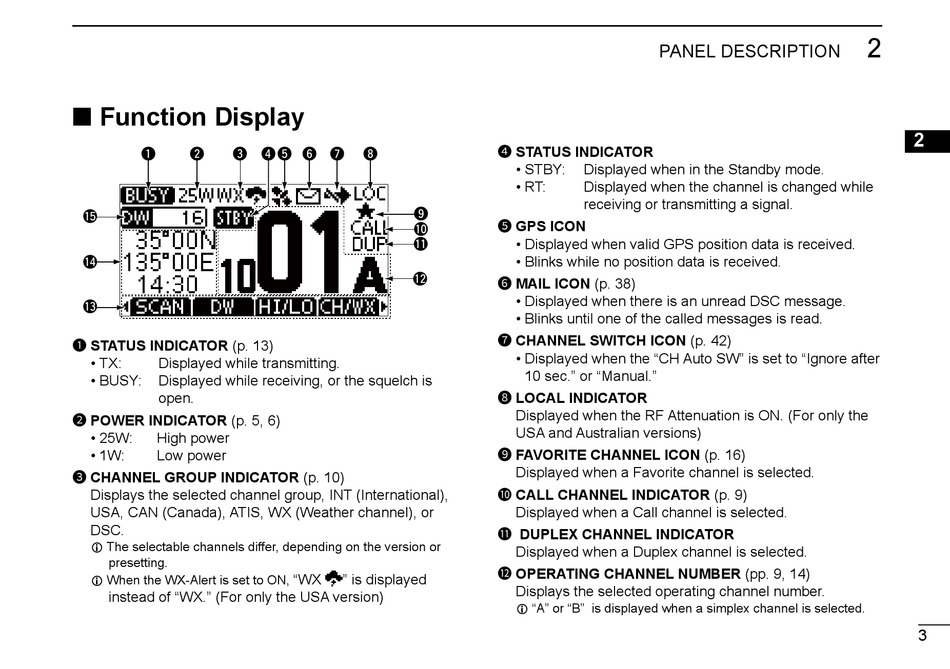

■ Function Display

q w e
!5
!4
!3
1 STATUS INDICATOR (p. 13)
• TX: Displayed while transmitting.
• BUSY: Displayed while receiving, or the squelch is
open.
2 POWER INDICATOR (p. 5, 6)
• 25W: High power
• 1W: Low power
3 CHANNEL GROUP INDICATOR (p. 10)
Displays the selected channel group, INT (International),
USA, CAN (Canada), ATIS, WX (Weather channel), or
DSC.
L The selectable channels differ, depending on the version or
presetting.
L When the WX-Alert is set to ON,
instead of "WX." (For only the USA version)
r t y u i
o
!0
!1
!2
"WX " is displayed
PANEL DESCRIPTION
4 STATUS INDICATOR
• STBY: Displayed when in the Standby mode.
• RT: Displayed when the channel is changed while
receiving or transmitting a signal.
5 GPS ICON
• Displayed when valid GPS position data is received.
• Blinks while no position data is received.
6 MAIL ICON (p. 38)
• Displayed when there is an unread DSC message.
• Blinks until one of the called messages is read.
7 CHANNEL SWITCH ICON (p. 42)
• Displayed when the "CH Auto SW" is set to "Ignore after
10 sec." or "Manual."
8 LOCAL INDICATOR
Displayed when the RF Attenuation is ON. (For only the
USA and Australian versions)
9 FAVORITE CHANNEL ICON (p. 16)
Displayed when a Favorite channel is selected.
10 CALL CHANNEL INDICATOR (p. 9)
Displayed when a Call channel is selected.
11 DUPLEX CHANNEL INDICATOR
Displayed when a Duplex channel is selected.
12 OPERATING CHANNEL NUMBER (pp. 9, 14)
Displays the selected operating channel number.
L "A" or "B" is displayed when a simplex channel is selected.
