AccuPyc 1330 INSTALLATION
4. Attach the copper tubing to the brass reducer fitting.
5. Turn the nut on the tubing clockwise until it is finger-tight Then use a 7/l6-in. open-ended
wrench (or an adjustable wrench) to tighten the nut an additional 1/4 turn.
6. Attach the other end of the copper tubing to the fitting on the INLEf connector on the back
of the pycnometer.
Parallel
Printer
AccuPyc 1330
Pycnomete:r~~~~~~~~~~~~~
Gas Cylinder

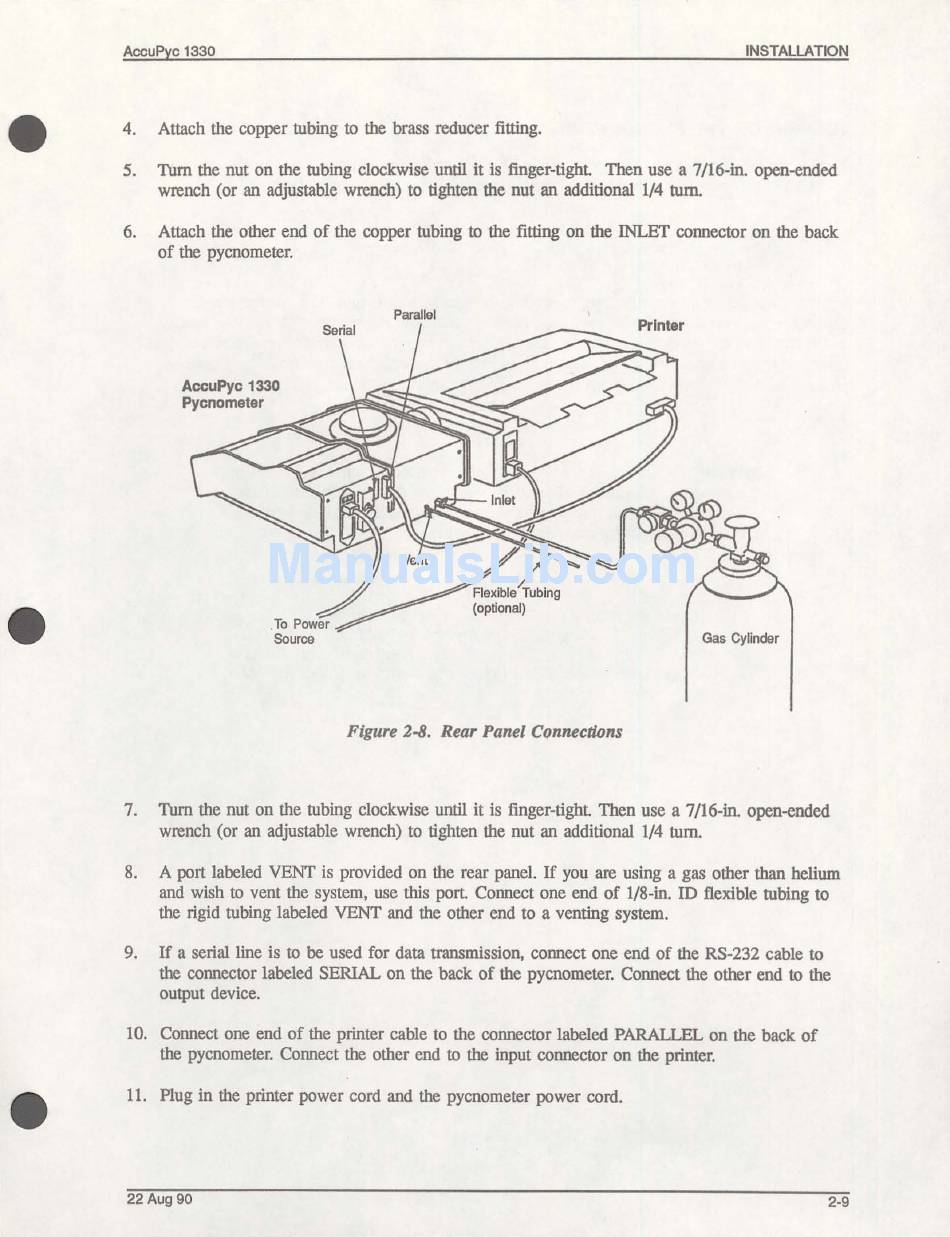

Figure 2-8. Rear Panel Connections
7. Turn the nut on the tubing cJockwise until it is finger-light Then use a 7/16-in. open-ended
wrench (or an adjustable wrench) to tighten the nut an additional 1/4 turn.
8. A port labeled VENT is provided on the rear panel. If you are using a gas other than helium
and wish to vent the system, use this port Connect one end of 1/8-in. ID flexible tubing to
the rigid tubing labeled VENT and the other end to a venting system.
9. If aserial line is to be used for data transmission, connect one end of the RS-232 cable to
the connector labeled SERIAL on the back of the pycnometer. Connect the other end to the
output device.
10. Connect one end of the printer cable to the connector labeled PARAlLEL on the back of
the pycnometer. Connect the other end to the input connector on the printer.
11. Plug in the printer power cord and the pycnometer power cord.
22 Aug 90
2-9
