INSTALLATION
AccuPyc 1330
3.

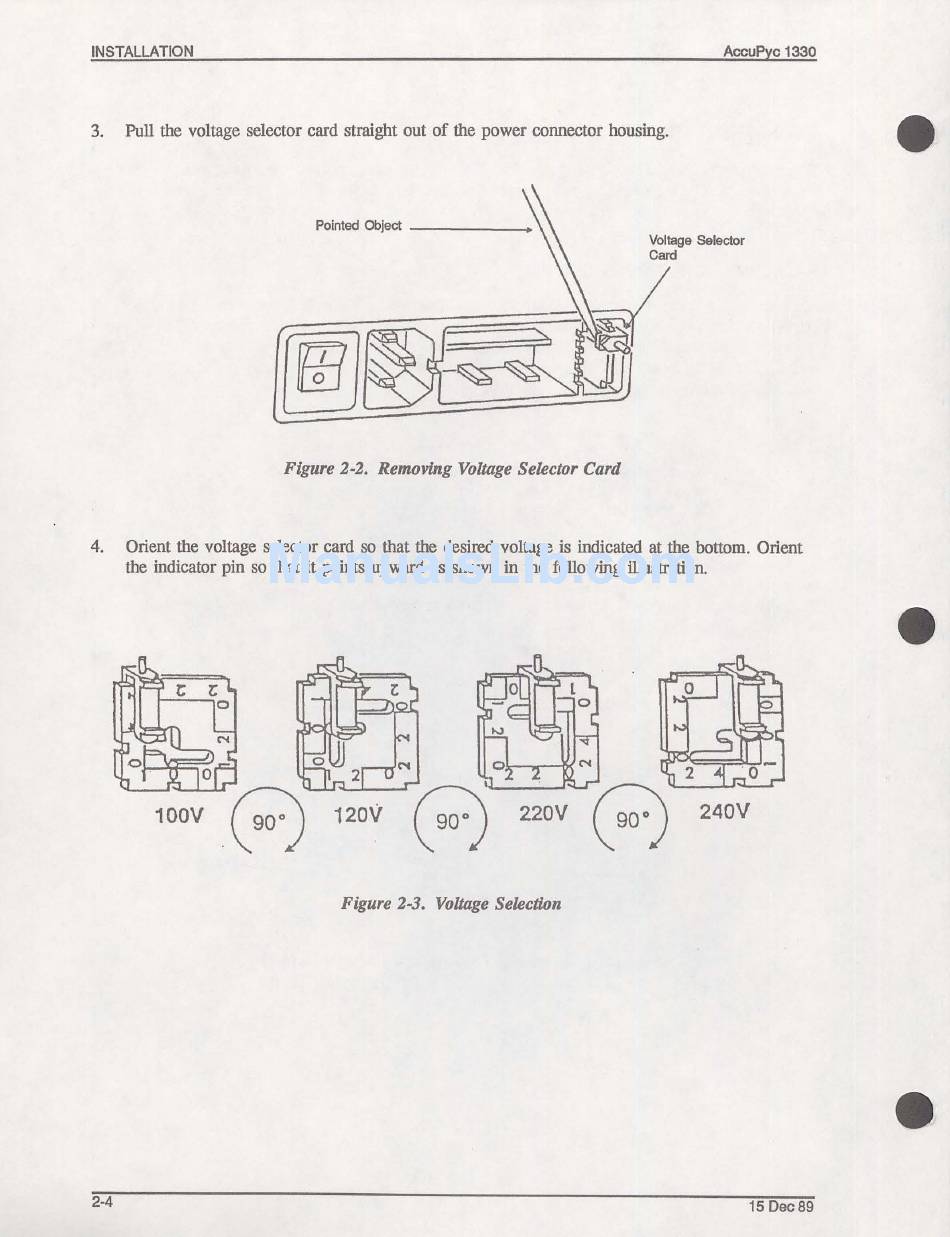

Pull the voltage selector card straight out of the power connector housing.
Pointed Objsct _ _ _ _ _ _
Figure
2-2.
Removing Voltage Selector Card
4.
Orient the voltage selector card so that the desired voltage is indicated at the bottom. Orient
the indicator pin so that it points upward as shown in the following illustration.
100V
120"
220V
240V
Figure
2-3.
Voltage Selection
2-4
15 Dec 89
