GENERAL DESCRIPTION
AccuPyc 1330
Cell Chamber Cap
Display Area
Keypad

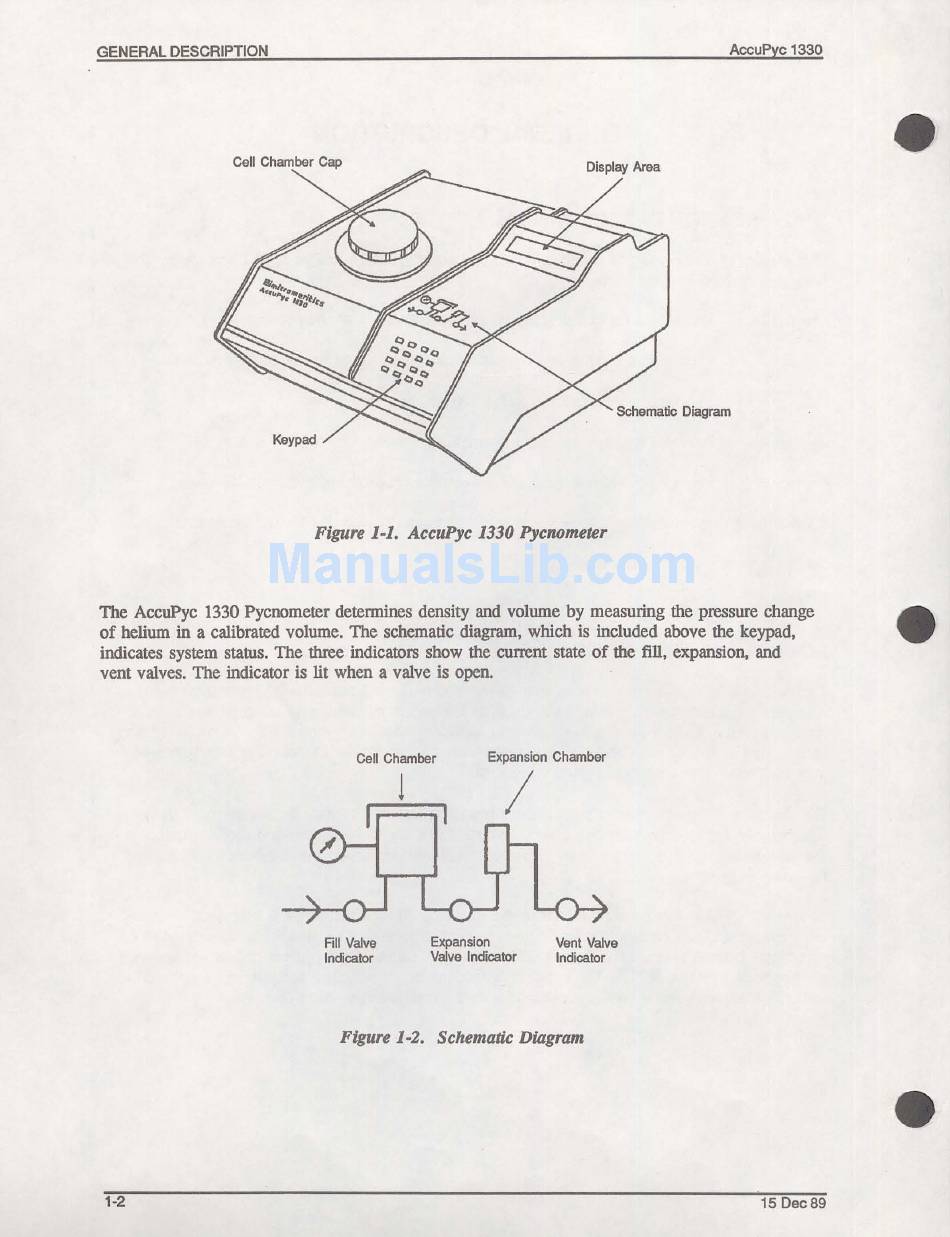

Figure
1-1.
AccuPyc 1330 Pycnometer
The AccuPyc 1330 Pycnometer determines density and volwne by measuring the pressure change
of heliwn in a calibrated volwne. The schematic diagram. which is included above the keypad.
indicates system status. The three indicators show the current state of the fill. expansion, and
vent valves. The indicator is lit when a valve is open.
1-2
Gell Chamber
Expansion Chamber
Fill Valve
Indicator
1
/
Expansion
Valve Indicator
Vent Valve
Indicator
Figure
1-2.
Schematic Diagram
