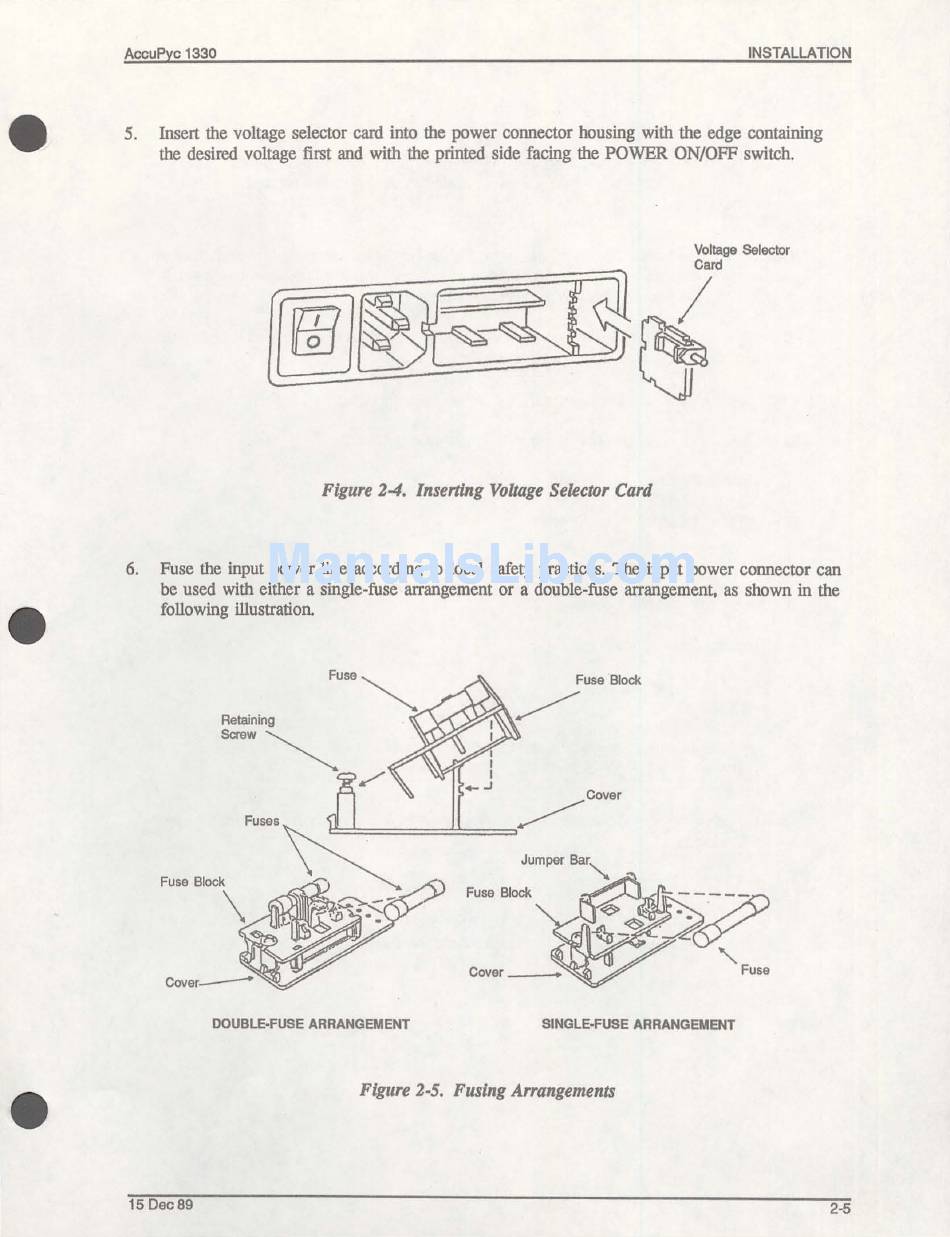

AccuPyc 1330
INSTALLATION
5.
Insert the voltage selector
card
into the power connector housing with the edge containing
the desired voltage first and with the printed side facing the POWER ON/OFF switch.
Voltage Seleetor
Card
Figure
24.
lnserting Vo1lllge Selector Card
6.
Fuse the input power line according to loeal safety practices. The input power connector can
be used with either a single-fuse arrangement or a double-fuse arrangement, as shown in the
following illustration.
FUße Block
~
~_~=:::::!:!::==>~cover
~~
"-
Cover _ _ _
FUGe
DOUBLE-FUSE ARRANGEMENT
SINGLE-FUSE ARRANGEMENT
Figure
2-5.
Fusing Arrangements
15 Dec 89
2-5
