The Graph Option
Data Logging
Use the Graph option to view the log data in graphical format:
1. In the Log Manager window (see Figure 5-2 on page 5-2), use the
[ ] and [ ] arrow keys to highlight the log you wish to view.
2. At the Log Manager window, press
3. Press the [ ] key twice to highlight the View menu and press
.
[ENTER]
4. In the View menu, scroll to the Graph option and press
This opens the Select Measurement window (see Figure 5-7 on
page 5-6), which lists the log measurement parameters.
5. If the log contains more than one measurement, scroll through the
list to highlight the parameter you wish to graph. Then, press
(View) and a window similar to Figure 5-12 below appears.
297
289
2001/03/01
13:23:41 PM
Scale

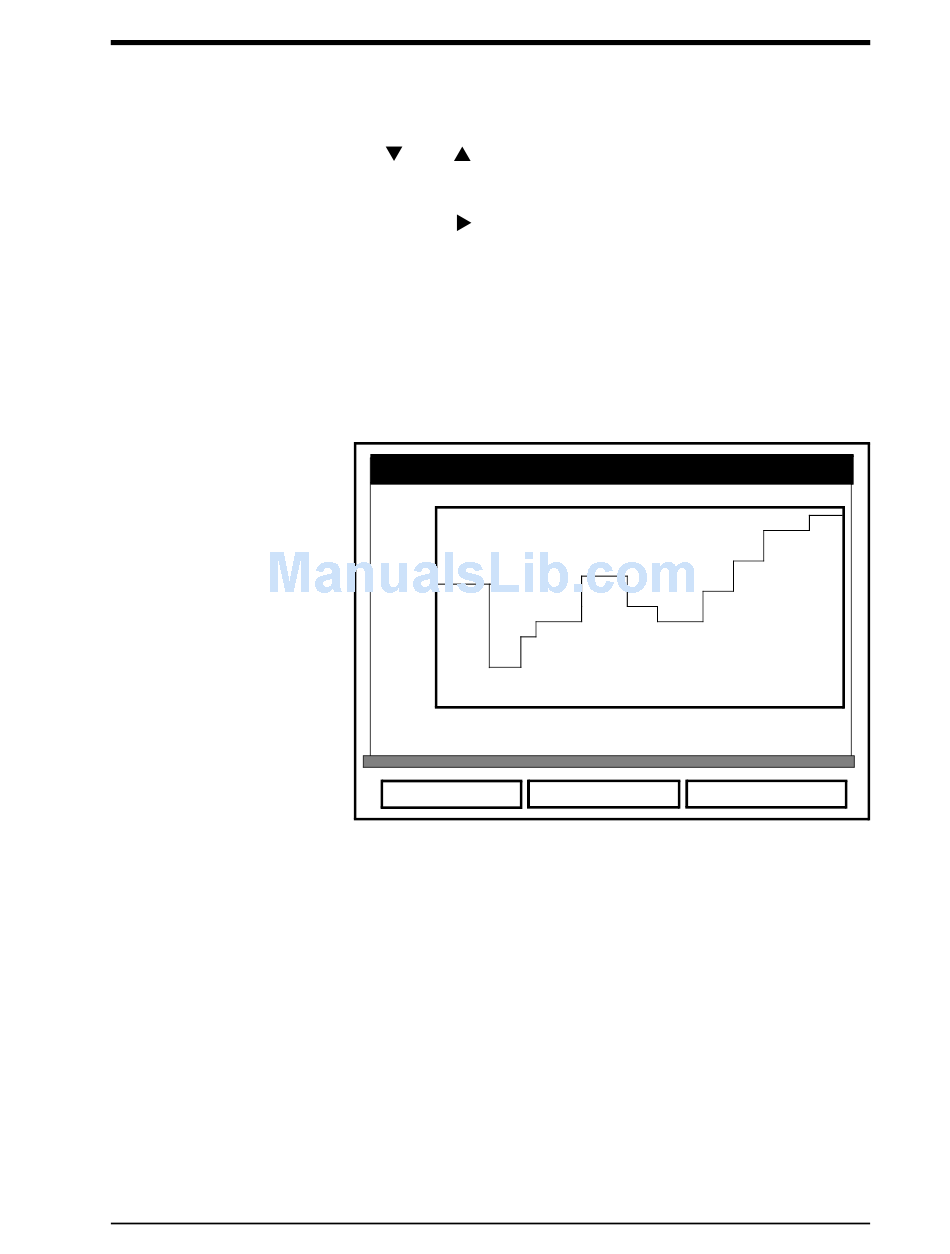

Figure 5-12: The Log Graph Window
The following choices are now available:
•
Press (Scale) if you wish to change the y-axis limits.
[F1]
•
Press (Time) if you wish to change the x-axis limits.
[F2]
•
Press (Exit) when you have finished viewing the graph.
[F3]
and then
[MENU]
AAA.LOG (Velocity, ft/s)
Time
August 2008
.
[ENTER]
.
[ENTER]
[F3]
2001/03/01
13:53:41 PM
Exit
5-15
