The Screen (cont.)
1-10
The system tray displays icons that indicate meter operations not
otherwise shown. Table 1-3 below lists the icons and their meanings.

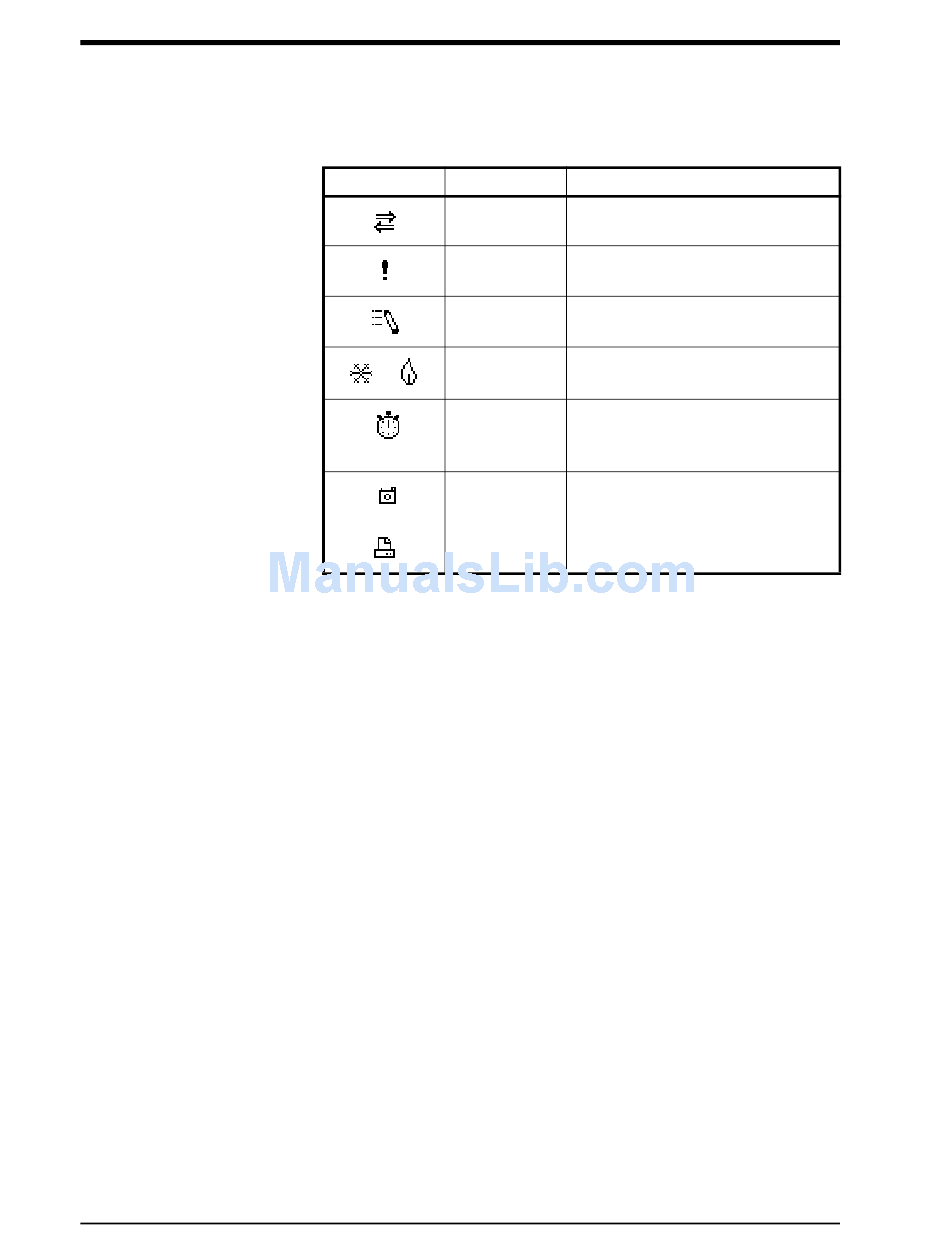

Table 1-3: Icons in the System Tray
Icon Function
IR Transfer
Alert
Log
Heating/
cooling
Stopwatch
Snapshot
(To file)
(To Printer)
The bottom of the screen displays the three function key options:
, and . These keys have different functions, depending on
[F1] [F2] [F3]
the task you are performing.
Meaning
IR data transfer in progress.
Indicates the meter encountered an
error in operation.
Indicates a log is pending (no
marks) or running (marks).
Indicates heating or cooling energy
mode.
Calibration Gate Operation: Watch
is stopped when the gate is closed,
or runs when it is open.
Indicates that the Snapshot function
has been activated, so users can
take screen captures.
