Parameter Setup

4.3.1 Select a Parameter

Use the arrow keys to move through the menus. To select a parameter, press ENTER. The first
space of the parameter flashes to show it is selected.

4.3.2 Enter and Save a New Parameter

Use the numeric keys to enter new data into the parameter.
Press ENTER to save the new data.

4.3.3 Change a New Parameter Before Saving

To make changes before you press ENTER, press CLEAR. After you press CLEAR, the display
shows the original parameter without any changes. Press ENTER, then enter the new data, and
press ENTER once again to save the new data.
4.4

Front Panel Main Menus

The Front Panel control screens are organized into several Main Menus.
Modulator
Demodulator
Interface
Monitor
Alarms
System
Test
Main menus have parameters and submenus. Arrows on the VFD show which arrow keys to use
to move through the parameters and submenus.
MN-DMD2050E Revision 2

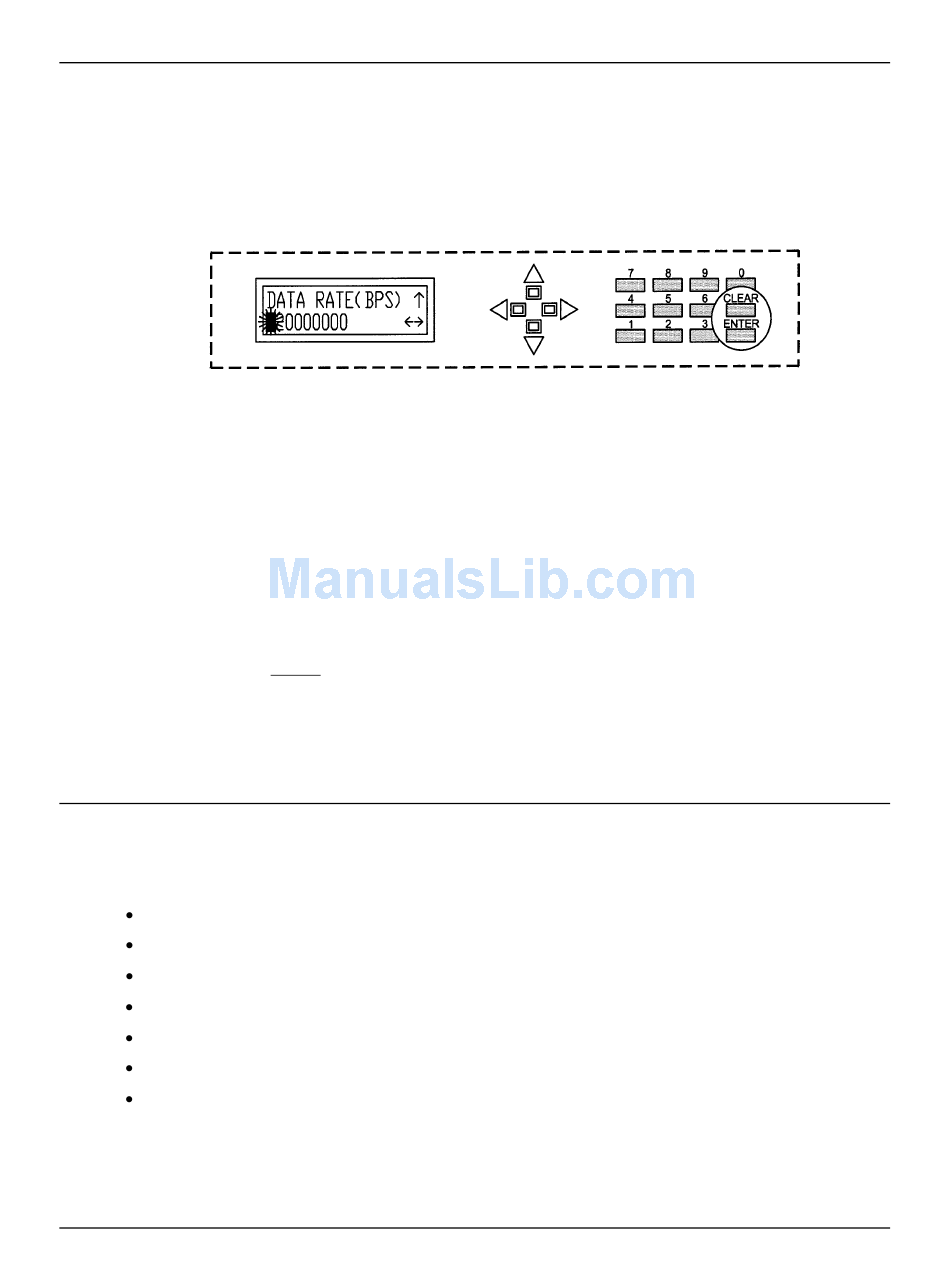

Figure 4-2. Enter New Parameters
