DAEnetIP2 User Manual
12 Sep 2013

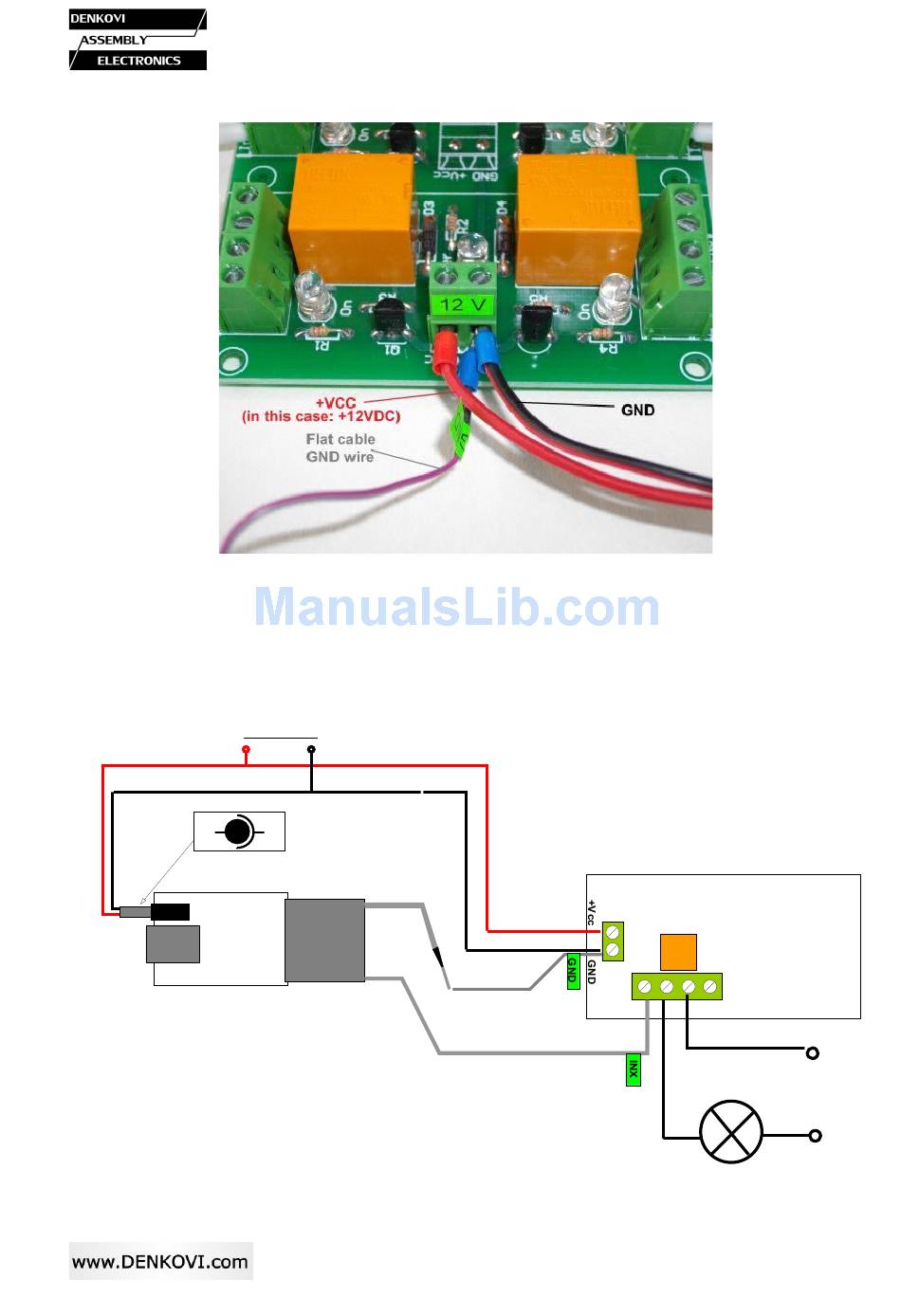

Figure 27. Connect the +Vcc and GND wires into the relay board power supply
screw terminal as it is shown on the image above.
6.1. Single power supply. You can supply the kit with single power supply source.
In this case it is 12VDC. If you have 24V relay board version, then you must
use 24VDC single power supply source (DAEnetIP2 accept from 7.5V - 25V)
Power source
+12VDC
GND
-
+
Relay Board
IP Controller power
jack
+12VDC
RJ45
FLAT
Relay
RIBBON
CABLE
GND
IP Controler
GND From Flat
IN
NO C NC
Ribbon Cable
~120VAC
Figure 28. Single power supply source.
-36-
