3.3. Internet/Ethernet 2 Channel relay board. The relay board is connected to
P5.7 and P5.8 pins.

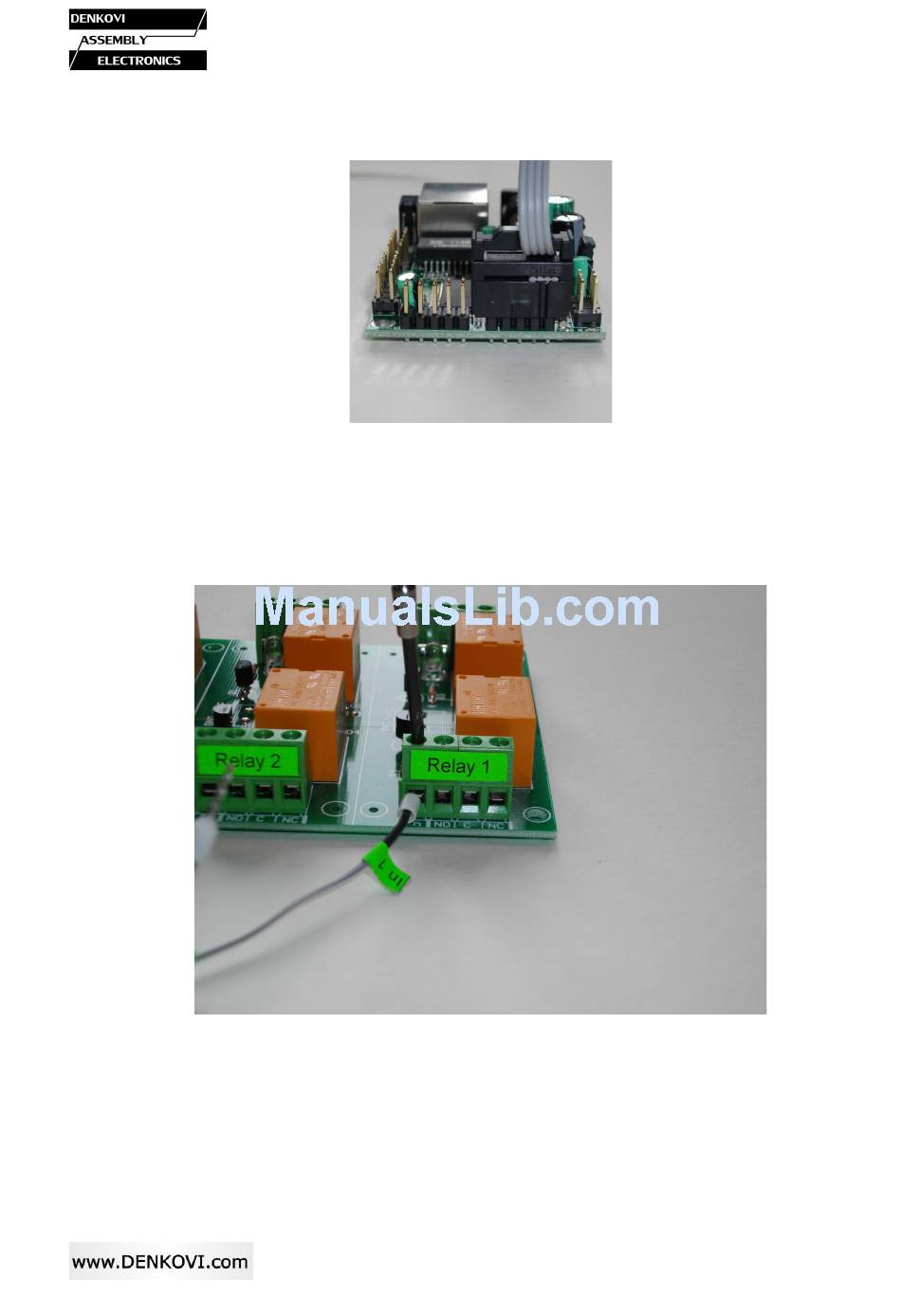

Figure 23. Connecting cable for 2 channel relay board
4. Connect each "In" labeled wire into the referred screw terminal of the relay board.
For example "In 1" wire goes into Relay 1 In screw terminal, "In 2" wire goes into
Relay 2 screw terminal and so on.
Figure 24. Connecting "In" wires into the screw terminals
