Denkovi DAEnetIP2 User Manual

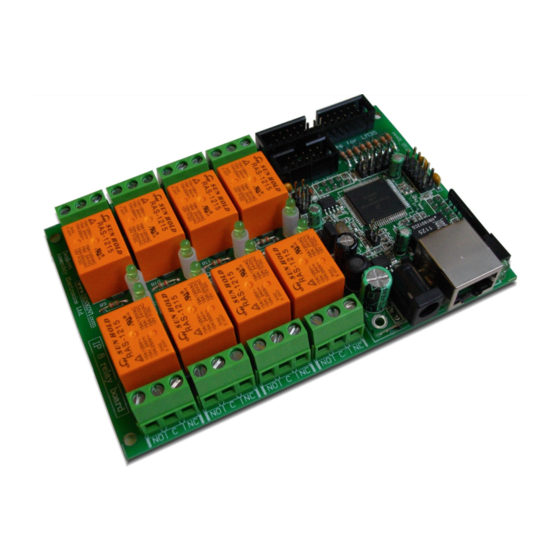

Eight relay module
Hide thumbs Also See for DAEnetIP2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

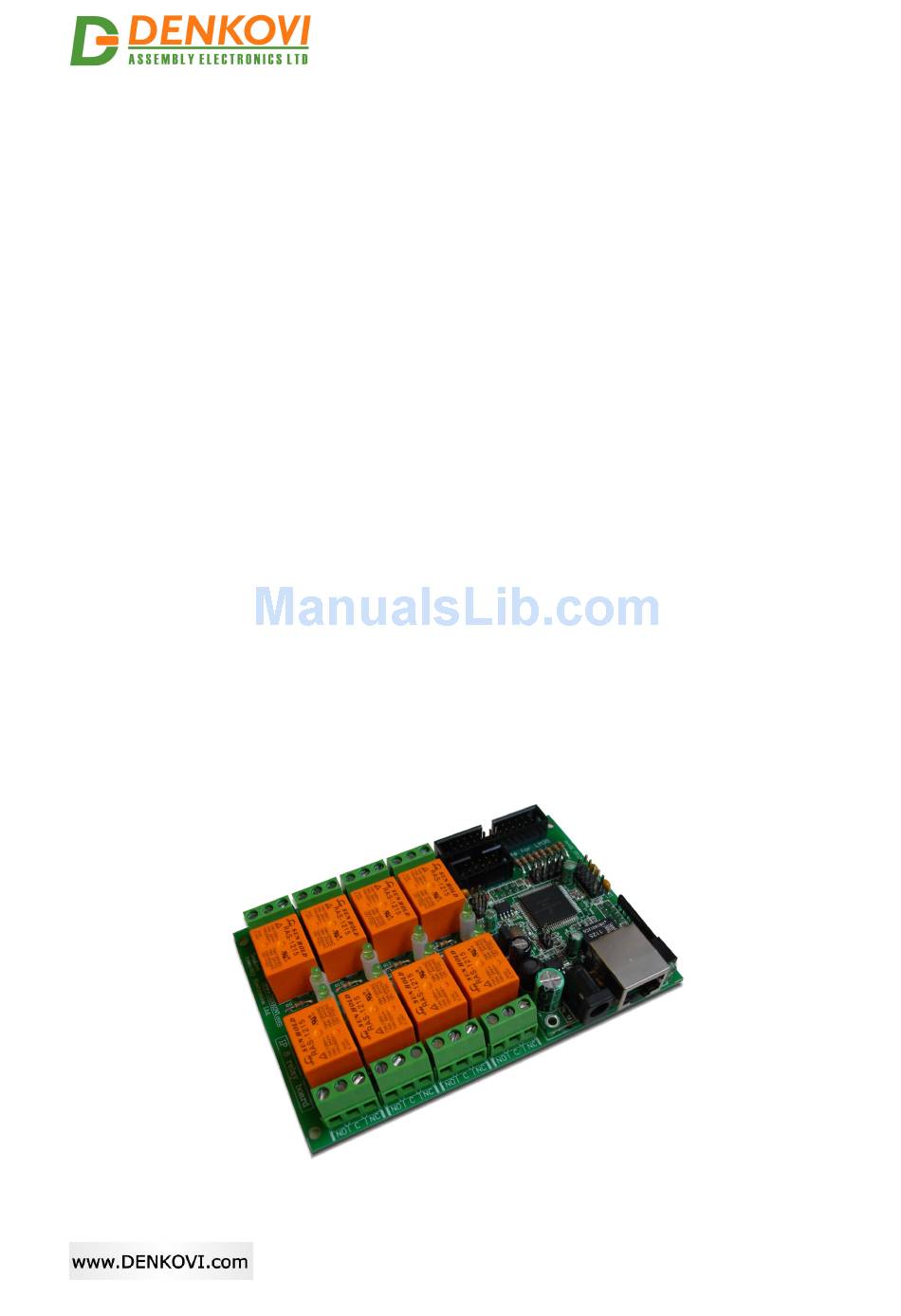

DAEnetIP2 Eight Relay Module LM35DZ User Manual
21 Aug 2017
DAEnetIP2 Eight Relay Module
(optimized for temperature measurement with LM35DZ)
User Manual
Document date: 21 Aug 2017
For firmware version: 4.098
For hardware revision: rev02_06.16
-1-

Advertisement

Table of Contents
loading

Related Manuals for Denkovi DAEnetIP2

Summary of Contents for Denkovi DAEnetIP2

  • Page 1 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 DAEnetIP2 Eight Relay Module (optimized for temperature measurement with LM35DZ) User Manual Document date: 21 Aug 2017 For firmware version: 4.098 For hardware revision: rev02_06.16...

  • Page 2: Table Of Contents

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 Content 1. Features ..........................3 2. Technical parameters......................4 3. Application examples......................5 4. Product installation......................6 5. Default Settings........................7 6. Connectors and ports......................9 7. Web access........................12 8. SNMP access........................23 9. Appendix 1. Power supply....................30 10.

  • Page 3: Features

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 1. Features This is multifunctional standalone device for management, control and sensor monitoring (especially suitable for LM35DZ temperature sensor) over the LAN and WAN. It could be used for home automation, industrial automation, access control, fire and security systems.

  • Page 4: Technical Parameters

    2) This port (JP1) is connected to the analog inputs port of DAEnetIP2 3) This port (JP3) is connected to the analog inputs port of DAEnetIP2 (note it is possible to use only one pin of analog input port of DAEnetIP2 at a time - either LM35DZ sensor pin either 0-10V pin).

  • Page 5: Application Examples

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 3. Application examples Figure 1. Application example 1 Figure 2. Application example 2...

  • Page 6: Product Installation

    3 Click submit and wait about 5 seconds 4 Power off the device 5 Now you may disconnect the UTP crossover cable from the DAEnetIP2 and your computer 6 Connect the DAEnetIP2 module and the network router with UTP straight cable.

  • Page 7: Default Settings

    5. Default Settings 5.1. Table with default settings These are the default (factory) settings of DAEnetIP2. When you buy the module you will receive it with these settings. If not, please load the default settings (see 5.2). Table 2. Default settings...
  • Page 8 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 5.2. Steps for loading default settings In case the access of the module is lost, factory (default settings) may be applied and the module parameters will be returned back as those in point 5.1 from the current document Figure 3.

  • Page 9: Connectors And Ports

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 6. Connectors and ports 6.1. DAEnetIP2 Eight Relay Module block diagram Figure 4. Block diagram...
  • Page 10 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 6.2. DAEnetIP2 Eight Relay Module Ports Figure 5. Ports Note that it is strongly recommend to use only one port at a time - either JP1 - Analog Inputs (0-10VDC) either JP3 - Port for sensors. Otherwise the device may...
  • Page 11 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 6.3. DAEnetIP2 ports description Table 3. I/O Ports Port P3 Port P5 Port P6 (digital outputs) (digital outputs) (digital/analog inputs) Pin N Func Func Func Free Free Free Free Free...

  • Page 12: Web Access

    Authentication). The web server has only one session – only one user can access the DAEnetIP2 via web at a time. The session has timeout 60 seconds if there is not access from the browser. After that another user can access the module. This is done because of security reasons.
  • Page 13 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 7.1. Setup page Figure 7. Setup page 7.1.1. Firmware version This is the current firmware version. Can not be changed 7.1.2. MAC address The MAC address of the module. Can not be changed 7.1.3.
  • Page 14 IMPORTNAT! Allowing DHCP client when there is not available DHCP server (or network issue) may make DAEnetIP2 module not to load the network settings and in this way the access may be lost. To avoid this DAEnetIP2 module waits about 40 sec to receive its network settings. In case of failure, DAEnetIP2 module loads the last saved static parameters and begins to work with them and meanwhile continues searching the the DHCP server.
  • Page 15 (120/220VAC including). From firmware version 4.097 it is possible to copy that signal to DAEnetIP2 - P5 (or that is the port controlling the relays of the current module). The restart of external devices may be started/stopped by the user.
  • Page 16 21 Aug 2017 Setting low level the I/O lines while monitoring restart If this option is enabled DAEnetIP2 will set in logical "0" all the outputs P3 and P5 (look figure 5 and table 3) SNMP: Change its bit in cfgNewMode.0 Web: Menu „Setup->...
  • Page 17 Web: Menu „Setup-> Digital filter for ADC ” 7.1.13. TFTP firmware update DAEnetIP2 has TFTP client for firmware update. When the command is initiated, the DAEnetIP2 module connects to the TFTP server and starts downloading the firmware version. After checking if there is connection with the TFTP server and if the file is correct the firmware will be updated and the module will be rebooted.
  • Page 18 For detailed firmware upgrade information please see Appendix 5. 7.1.14. Broadcast frames In this mode DAEnetIP2 does not response of frames with MAC address FF-FF- FF-FF-FF-FF. This allows DAEnetIP2 to hide from the world because it doesn’t respond to ARP requests.
  • Page 19 If the limits are 0 and 1023 then there will not be any traps from this input. The message gives information from which input is this trap and what is the input level value. If several events are generated, DAEnetIP2 sends their traps in order they have been generated.
  • Page 20 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 7.3.4. Mode “Acc” The output will be set if the input level is less than Low Threshold and will be in old state after input level is over High Threshold.
  • Page 21 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017  The temperature in F (valid only if LM35DZ sensor is connected to JP1)  The value from the 0-10V AI port - JP3 (valid when there are not any connected LM35DZ sensors and voltage from 0 to 10.44VDC is supplied to...
  • Page 22 7.6. Account Figure 13. Account settings 7.7. Firmware Update This command starts firmware update. The DAEnetIP2 will download the firmware file from the TFTP server given in Setup section. After that the device will be rebooted. 7.8. Reboot Reboots DAEnetIP2.

  • Page 23: Snmp Access

    OIDs. Other commands (snmpwalk for instance) are not supported. NOTE! Because of the specific of the SNMP protocol supported by DAEnetIP2 (it is not possible to access several OIDs), the initial setting of IP/MASK/Gateway must be done via Web. Otherwise the DAEnetIP2 module may become not reachable, because of the limitation of only one OID accessing per a time via snmp.
  • Page 24 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 operating modes: ENABLED_BIT – bit0, BROADCAST_DISABL E-bit1, VLAN_TAG_ENABLE- bit2, NO_LARGE_PACKETS -bit3, PINGRESTART_ENAB LE-bit4, SWITCH_CONTROL- bit5, SECONDARY_TARGE T-bit6, USE_ANALOG_PINS- bit7 (Disable_Analog_Filter for ver >4.094) x.1.1.10.0 cfgReset read-only Read of this OID causes...
  • Page 25 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 Gateway x.1.1.15.0 cfgNetMask read-write IP Network Subnet IpAddress Mask x.1.1.16.0 cfgMonitorIP read-write Remote IP address to IpAddress monitor via ICMP echo requests x.1.1.17.0 cfgReadOnlyP read-write Read-only community OCTET assword string (password) STRING (SIZE (4..12))
  • Page 26 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 1-Pull-down, 0-Pull-up. Doesn't reflect on output pins x.1.1.29.0 cfgP5DupRST read-write Bit mask showing on INTEGER(0..25 which P5 pins to duplicate TargetRST signal. Pins must be outputs in cfgP5Dir. Available from v.4.097 x.1.1.30.0...
  • Page 27 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 8.3. Anolog-to-P5 Events Table 7. Analog-to-P5 Events Name Access Description Syntax x.1.1.121.1.0 aevPin1 read-write Defines reaction on INTEGER respective P5 output { None(0), Low(1), pin when voltage is High(2), compared to...
  • Page 28 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 8.4. Control port P3 (Digital outputs) Table 9. Control port P3 Name Access Description Syntax x.1.2.1.1.0 pctrlP3pin1 read- Port3 pin1 data INTEGER write { High(1), Low(0) } x.1.2.1.2.0 pctrlP3pin2 read-...
  • Page 29 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 8.6. Returned values are from 10bit Analog to Digital Converter Table 11. Returned values from ADC Name Access Description Syntax x.1.2.3.1.0 pctrlP6pin1 read-only ADC Channel 1 INTEGER(0..1023) x.1.2.3.2.0 pctrlP6pin2 read-only ADC Channel 2 INTEGER(0..1023)

  • Page 30: Appendix 1. Power Supply

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 9. Appendix 1. Power supply The power supply of the DAEnetIP2 Eight Relay Module (LM35DZ) may be selected during purchase - 12VDC or 24VDC. Other supply voltages may damage the device! The voltage polarity is tip "center positive"!

  • Page 31: Appendix 2. Port Forwarding - For Advanced Users

     SNMP port, by default 161  HTTP port, by default 80 DAEnetIP2 will accept any valid integer number for port >1025 and <65535. Port numbers from 0 to 1024 will be accepted as 161. The same is with port 80.

  • Page 32: Appendix 3. Software

    Software web page - here If the device DAEnetIP2 Eight Relay Module (LM35DZ) is not listed, you may use 8 Relay Brd SNMP - v2. Note also that this software does not read the I/O states or sensors values of the device, it just control the relays.
  • Page 33 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 11.2. DAEnetIP2 Manager DAEnetIP2 Manager is configuration utility for Denkovi DAEnetIP2 controller. Figure 17. DAEnetIP2 Manager Download link - here -33-...
  • Page 34 11.3. Android Software by iSwitch, LLC The featured Android application is offered to extend control of the DAEnetIP2 controller and relay board to your Android phone. This application is designed to work on an Android Smartphone or Tablet, however screens are optimized for Smartphones.
  • Page 35 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 o Analog -> Channel 1 ->pressing continuously->Configure Gauge for this Channel  Pick a Gauge: 0-100 °C  Gauge Title: Temp  Save Settings  Temperature in Farenheith: o Analog -> Channel 1 ->pressing continuously: ...
  • Page 36 11.4.1. Windows Net-snmp is command line tool for accessing SNMP based network devices under windows console. By default it is not included in Windows OS. DAEnetIP2 Eight Relay Module (LM35DZ) can be easily accessed by the net-snmp tool. This is very useful when the snmp commands must be executed from batch file for example.
  • Page 37 DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 11.4.2. Linux Usually most of Linux OS come with snmp tool installed. 1. To check out if snmp is installed, just open one terminal and type: snmpget -v1 -c 000000000000 192.168.1.11 .1.3.6.1.4.1.19865.1.1.1.0 (Of course with your network settings) If you get some message like this: "snmp is not function"...
  • Page 38 SNMPSET examples Set DAEnetIP2 IP address snmpset -v1 -c private 172.16.100.2 Denkovi.DAEnetIP2.Configuration.cfgIP.0 a 172.16.100.3 snmpget -v1 -c private 172.16.100.3 .1.3.6.1.4.1.19865.1.1.1.0 a 172.16.100.3 Set P3.1 - This will set pin 1 from digital output port P3 in '0' (Low level) snmpset -v1 -c private 172.16.100.2 .1.3.6.1.4.1.19865.1.2.1.1.0 i 0...

  • Page 39: Appendix 4. Software Examples

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 Appendix 4. Software examples 12.1. Java Download the Netbeans project (RAR file for Windows) from here 12.2. .NET Download the project (C #) from here 12.3. Download the file (in .txt format) from here. The php server must support snmp. It is tested with WAMP (with snmp lib activated).

  • Page 40: Appendix 5. Firmware Upgrade

    4. In the IP address field type the IP address of the DAEnetIP2 controller that must be upgraded. 5. In the Port field type the port on that DAEnetIP2 can be reached. This is the SNMP port. By default it is 161.
  • Page 41 ??? but some value – form example 1.50. Then the Status field must be with value “File is uploaded successfully”. 12. Your DAEnetIP2 controller is upgraded successfully with the desired firmware version. Now when you click button “Check device”, the new version must appear.

  • Page 42: Appendix 5. I/O Ports (Daenetip2 P3)

    21 Aug 2017 Appendix 5. I/O Ports (DAEnetIP2 P3) This section describes how to used DAEnetIP2 P3 - 8 bit TTL IO port lines. They are not buffered and you should very carefully otherwise the MCU could be damaged. They are digital inputs/outputs. The output level voltage is “1” (3.3VDC) or “0”...

  • Page 43: Appendix 4. Lm35Dz Sensor Connection

    (All used resistors are with +-5% tolerance) The DAEnetIP2 ADC is with 10 bit resolution and Vref=1.22VDC. This allows you temperature measurement with resolution about 5 division per degree. To connect LM35DZ sensor to DAEnetIP2 Eight Relay Module (LM35DZ), you...

  • Page 44: Appendix 5. Mechanical Draw

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 Appendix 5. Mechanical draw Figure 24. Mechanical dimensions -44-...

  • Page 45: Document Revisions

    DAEnetIP2 Eight Relay Module LM35DZ User Manual 21 Aug 2017 Document revisions  03.10.2012 - First document version  05.10.2012 o Fixed formulas errors on page 21 o Added extra information on page 44  05.12.2012 o Replaced the incorrect temperature sensor type LM35 with the correct supported one –...
