9. Appendix 2. DAEnetIP2 installation

Note these steps are for power on only DAEnetIP2. For installation DAEnetIP2 +
relay board (kit), first you must do the steps from Appendix 3 and then do the steps
from point 9.1 or point 9.2.
9.1. Connect DAEnetIP2 to computer for first time
1. Connect the DAEnetIP2 device with your computer via UTP crossover cable.
(note that the device does not support AUTO MDIX)
2. Supply with voltage in the allowed range. For example - 12VDC stabilized
filtered power source.
3. Your initial computer IP should be in the device network. So it is recommend
to be 172.16.100.1. Change it.
4. Open web browser and type 172.16.100.2 – default username/password are
"admin"/"admin"
5. Now you can access all the parameters via your web browser

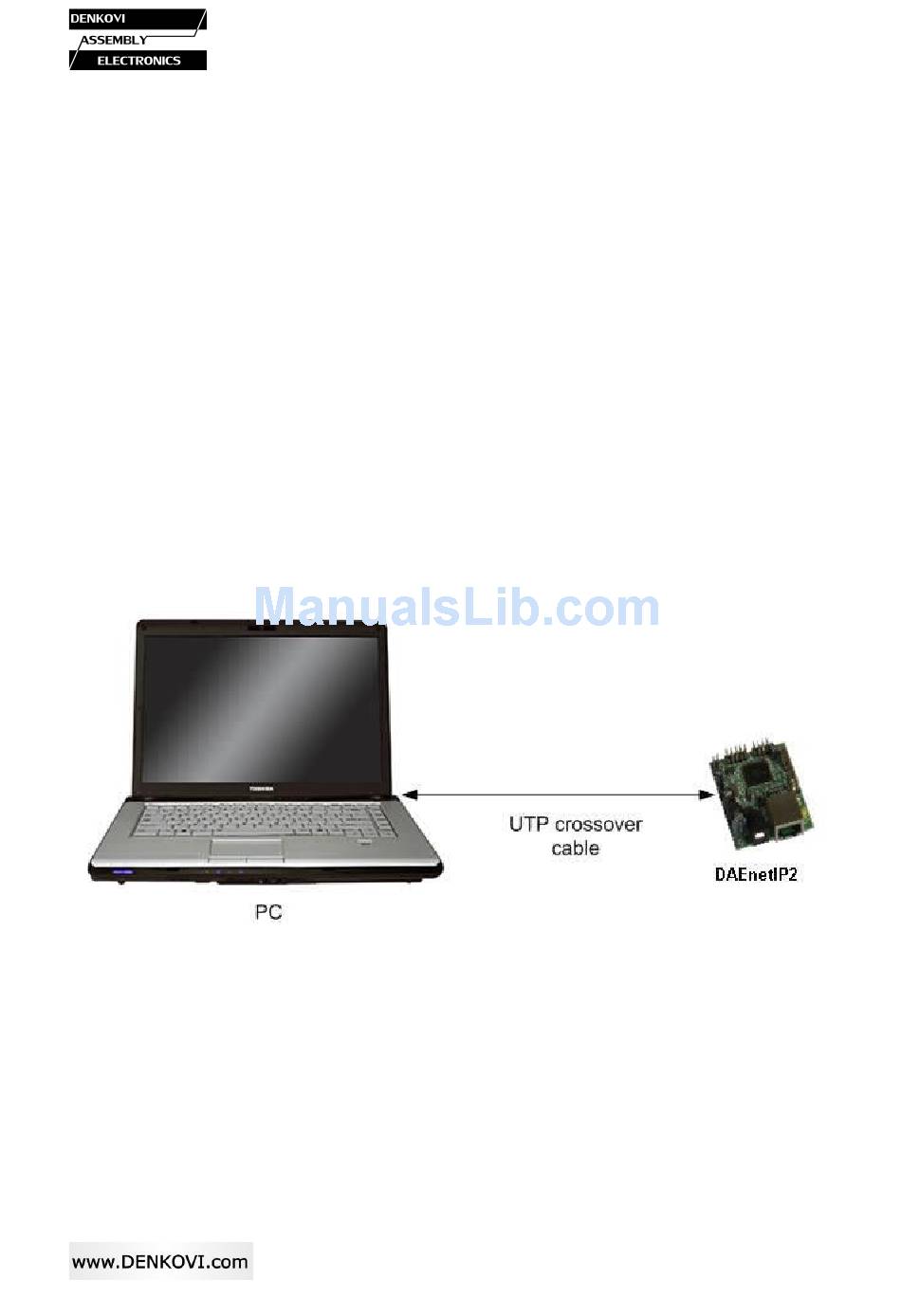

Figure 16. DAEnetIP2 connected directly to computer
