8. Appendix 1. Power supply
The minimal power supply is 7.5VDC. The maximum voltage is 25VDC. The optimal
voltage is
12VDC
The voltage polarity is tip "center positive"!
The device does not protection against reverse polarity voltage!
Other supply voltages than described may damage the device!
+

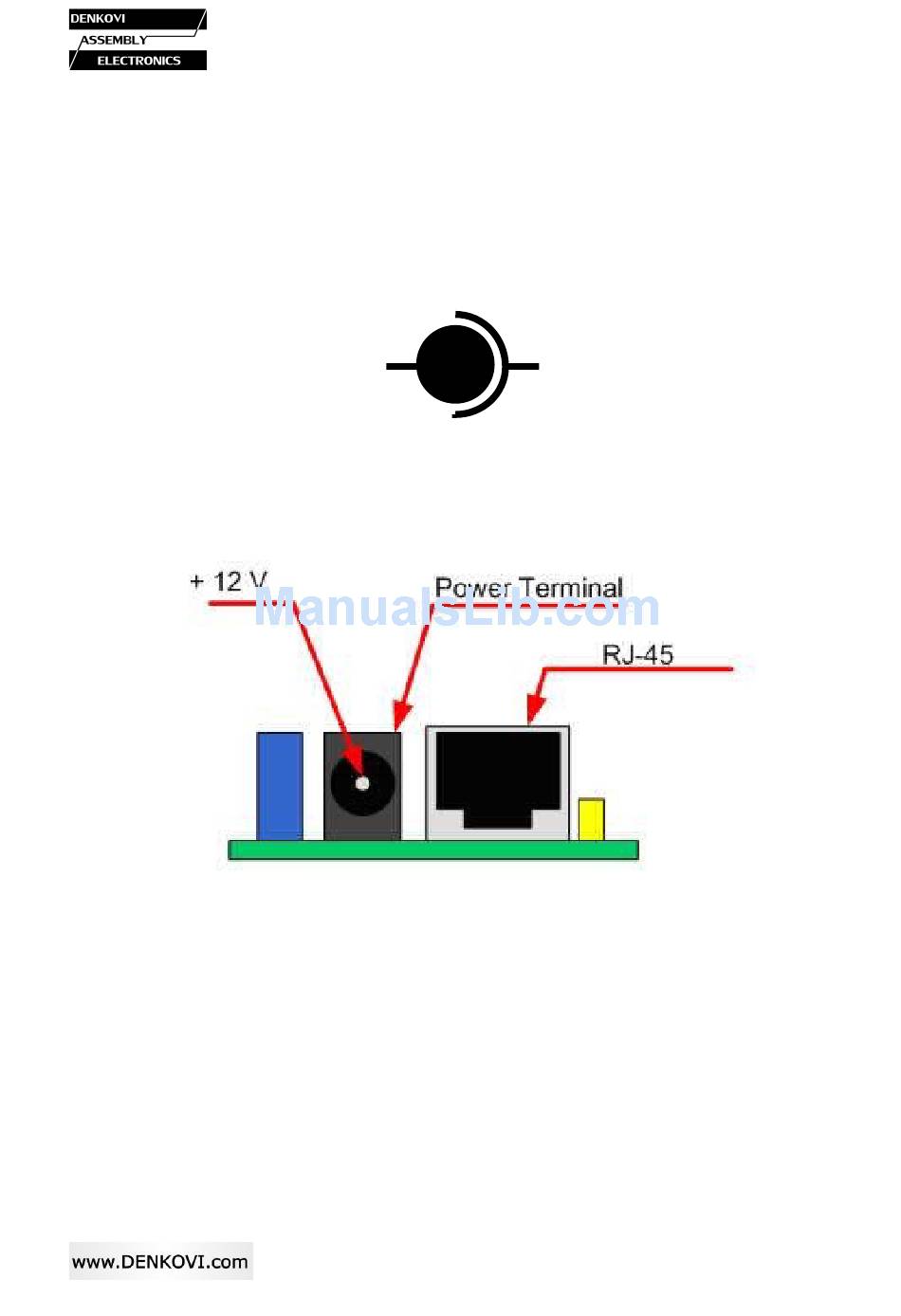

Figure 14. Power supply polarity
Figure 15. DAEnetIP2 power supply jack
DAEnetIP2 User Manual
-
12 Sep 2013
-29-
