Denkovi DAEnetIP2 User Manual page 31

9.2. Connect DAEnetIP2 to router
1. Do all the steps from point 9.1
2. Adjust the network parameters from Setup page:
2.1. IP - must be in same network as your router. (For example if router IP is
192.168.1.1, DAEnetIP2 IP may be 192.168.1.2)
2.2. Mask
2.3. Gateway - usually this is the IP of your router
3. Click submit and wait about 5 seconds
4. Power off the device
5. Now you may disconnect the UTP crossover cable from the DAEnetIP2 and
your computer
6. Connect the DAEnetIP2 module and the network router with UTP straight
cable.
7. Adjust the IP of your computer to be again in the router network
8. Open the web browser and enter the new IP of the module.

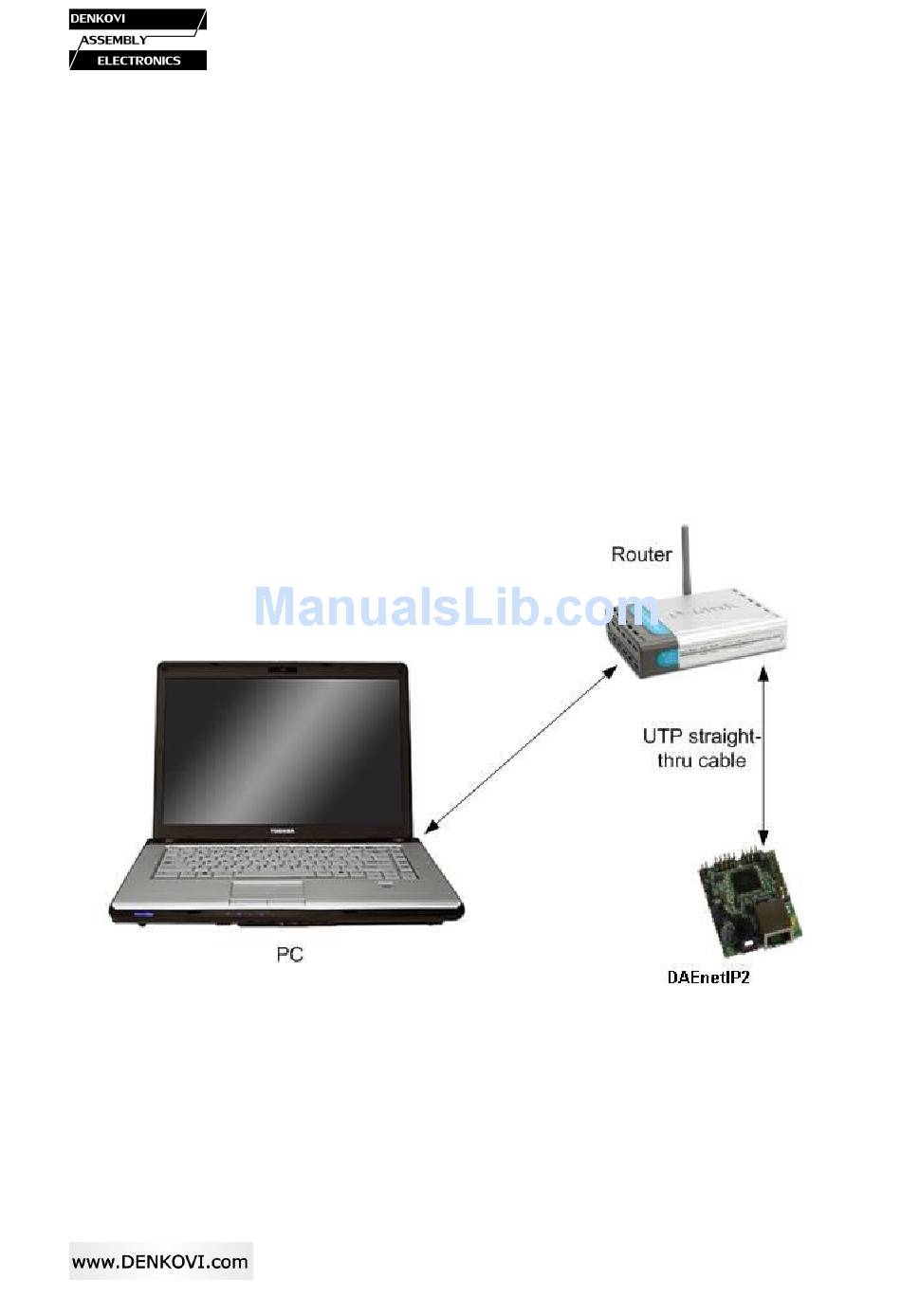

Figure 17. DAEnetIP2 connected to router
DAEnetIP2 User Manual
12 Sep 2013
-31-
