10. Appendix 3. Install and power on DAEnetIP2 + denkovi relay
board (kit)
DAEnetIP2 can be used successfully in combination with relay boards. Bellow are
given instructions how to connect and power on kits (DAEnetIP2 + cable + relay
board). You can view the kits with DAEnetIP2 www.denkovi.com. The steps
(instructions) are valid for only for kits with DAEnetIP2 + cable + relay board from
Denkovi Assembly Electronics LTD without matter how many relays is the kit.
1. Connect DAEnetIP2 UTP crossover cable (if it will be connected to computer) or
UTP stright-through (if it will be connected to router)
2. Connect the other end of the cable to your computer LAN card or router

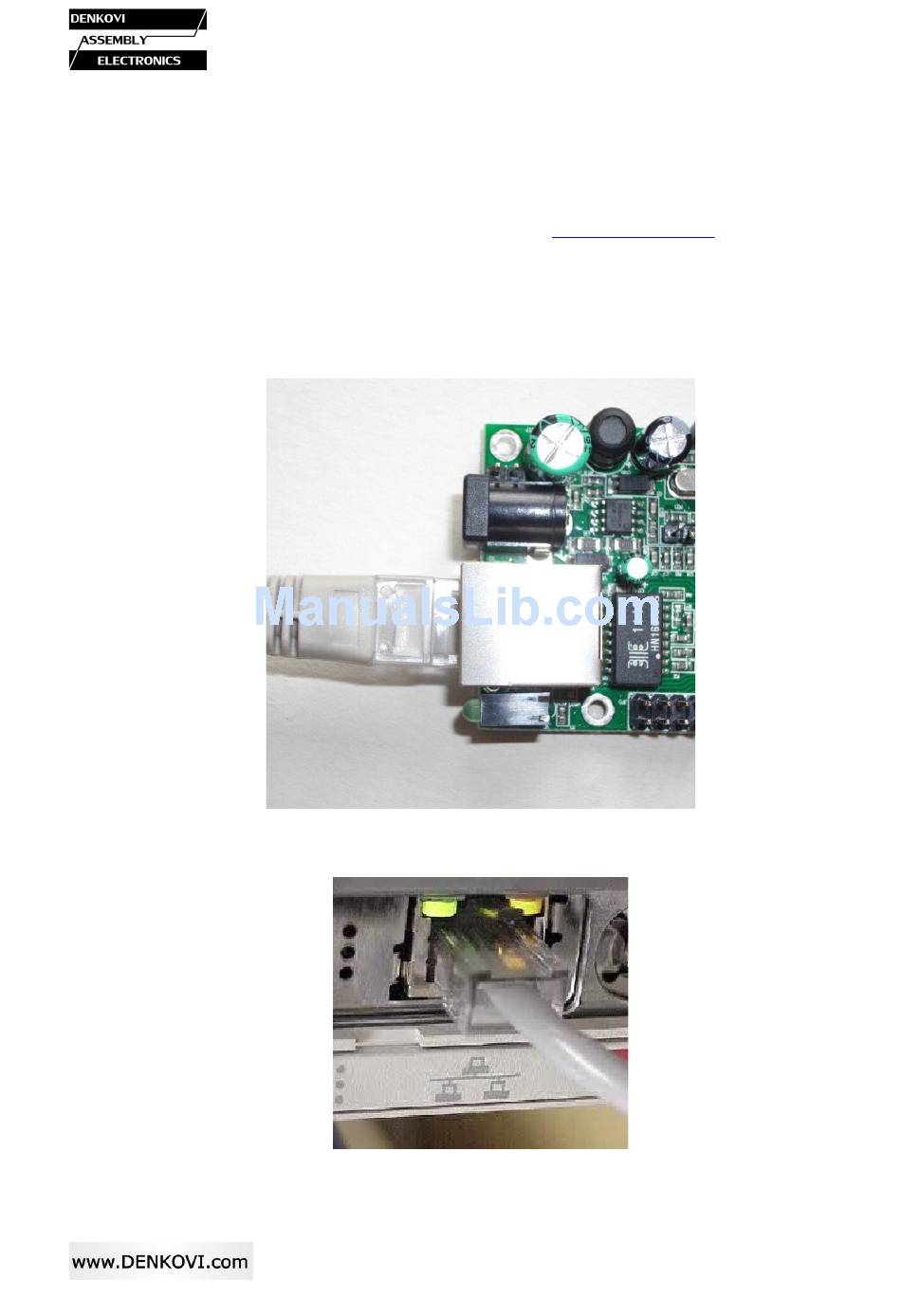

Figure 18. Connecting UTP cable to DAEnetIP2
Figure 19. Connecting UTP cable to Computer
