The Device Configuration DIP Switch
Overview
Addressable cards include a bank of eight DIP switches. From left to right (see Figure A-1)
these switches are designated as SWx-1 through SWx-8. The function of these switches is as
follows:
•
•
Note: You must set these switches to the value assigned to the card by the ES Panel Programmer.
Appendix A
SWx-1. This switch sets the baud rate for the internal 4100 communications line running
between the card and the CPU. Set this switch to ON.
SWx-2 through SWx-8. These switches set the card's address within the 4100 FACP.
Refer to Table A-1 for a complete list of the switch settings for all of the possible card
addresses.

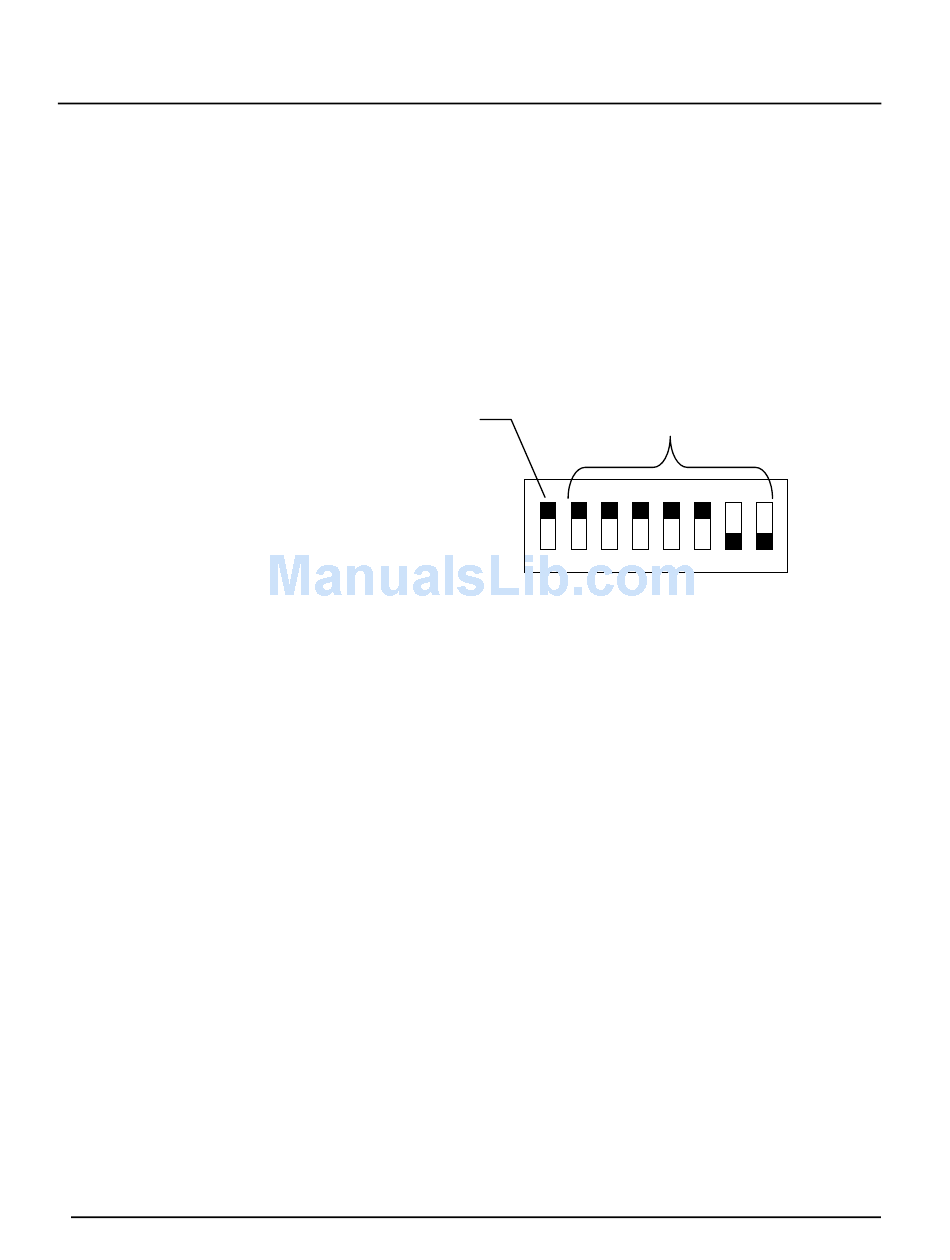

4100 Comm. Baud Rate.
Switch (SWx-1)
Must Be Set to ON
DIP Switches SWx-2 through
SWx-8 set the Card Address.
Figure shows an Address of 3.
ON
OFF
1 2 3

Figure A-1. DIP Switch SWx

A-1
4 5 6 7 8
