Master Controller
The master controller daughter card mounts onto the master motherboard. The master
Daughter Card controller daughter card contains a service port, a direct drive user interface connection, and a
(566-719)
port for a service modem.
CONNECTOR TO CPU
MOTHERBOARD (P9)
BATTERY BACKUP
ON/ OFF JUMPER (P3)
ETHERNET CONNECTOR
(J1) RJ45 TYPE
COMM JUMPER (P1)
SERVICE PORT
RESET (WARM START)
SWITCH (SW1)

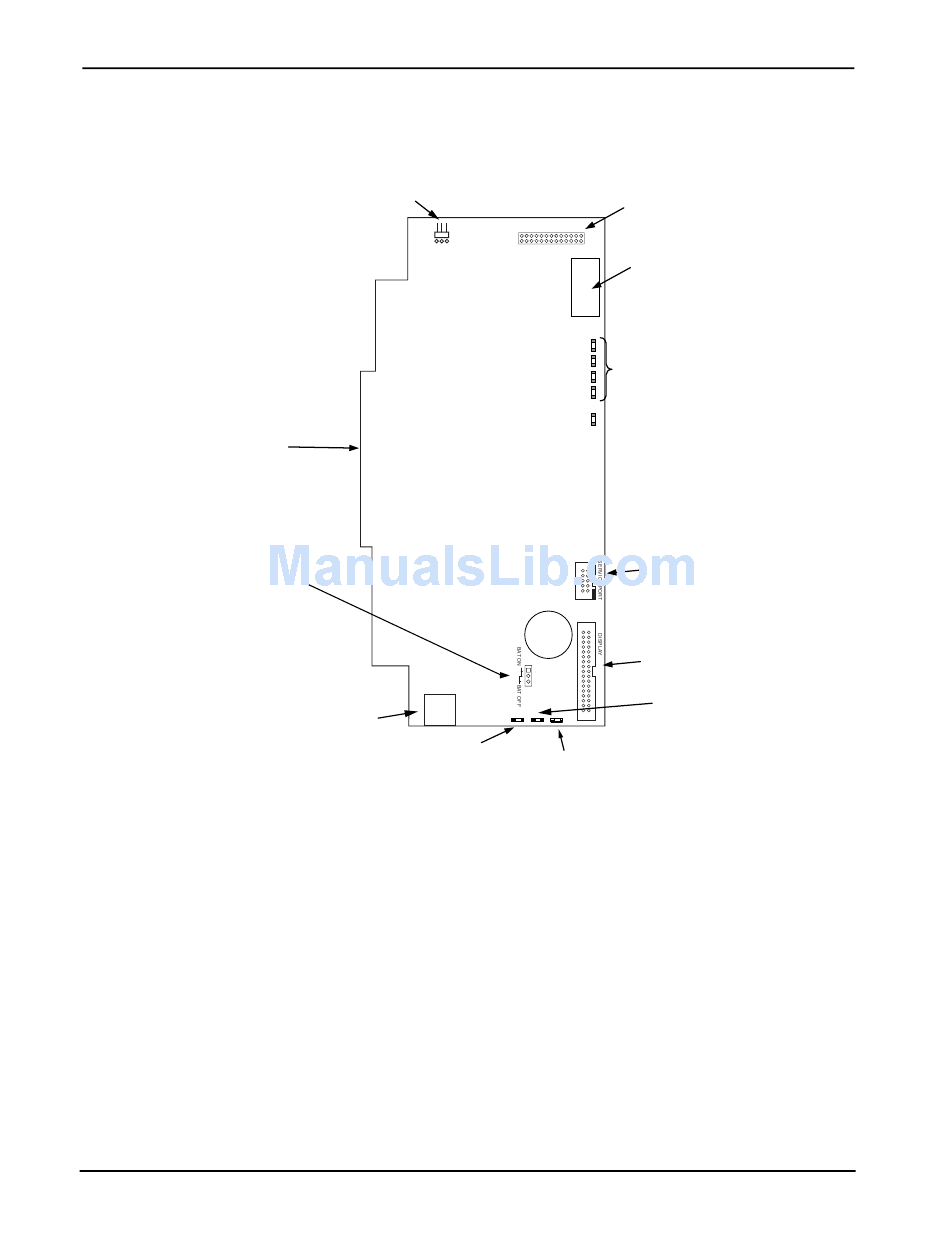

Figure 2-7. Master Controller Daughter Card (566-719)

2-8
Chapter 2 Installing FACP Components
SERVICE MODEM
CONNECTOR (P4)
MODEM
2
COMPACT FLASH
Used for alternative job/
exec storage (card does not "run"
out of compact flash)
CPU BOOTLOADER
LEDs (LED A – LED D)
RESET LED (LED1)
ON: CPU is in reset. If LED is flashing,
board is unable to come out of reset.
Possibly corrupt CFIG or board needs
to be replaced.
OFF: CPU is running normally.
SERVICE PORT (P5)
Battery
DIRECT-DRIVE
DISPLAY PORT (P6)
SWAP CFIG JUMPER (P15)
INSERT JUMPER DURING
BOOT FOR CFIG SWAP
COLD START SWITCH (SW2)
HOLD DURING BOOT FOR
COLD START
