SPS Auxiliary Power Wiring (continued)

Wiring

The SPS can connect to auxiliary power appliances via the dedicated auxiliary power tap
(TB3). If more power is needed, any of the three NAC outputs can be used for auxiliary power.
AUXILIARY
POWER
12 AWG to 18 AWG
TB2
Dedicated auxiliary
power screw terminal
(configured in the
Programmer)
AUX POWER
0V 24V
TB3
12 AWG to 18 AWG
AUXILIARY
POWER
Figure Notes:
1. Maximum allowed NAC current consumption (aux power plus NACs): 9A (Special Application) or 4A regulated 24V dc.
2. Maximum per NAC: 3 A
3. Maximum allowed auxiliary power current consumption: 5A (total supply).
4. Maximum per auxiliary output: 2 A
5. Class A wiring is possible only if a 4090-9117 Power Isolator is used.
6. International systems require ferrite beads. Use kit 4100-5129.
AUXILIARY AUXILIARY
POWER POWER
B+ B- A+ A- B+ B- A+ A- B+ B- A+ A-
NAC points must be
reconfigured as
auxiliary power
output points in the
programmer
SPS

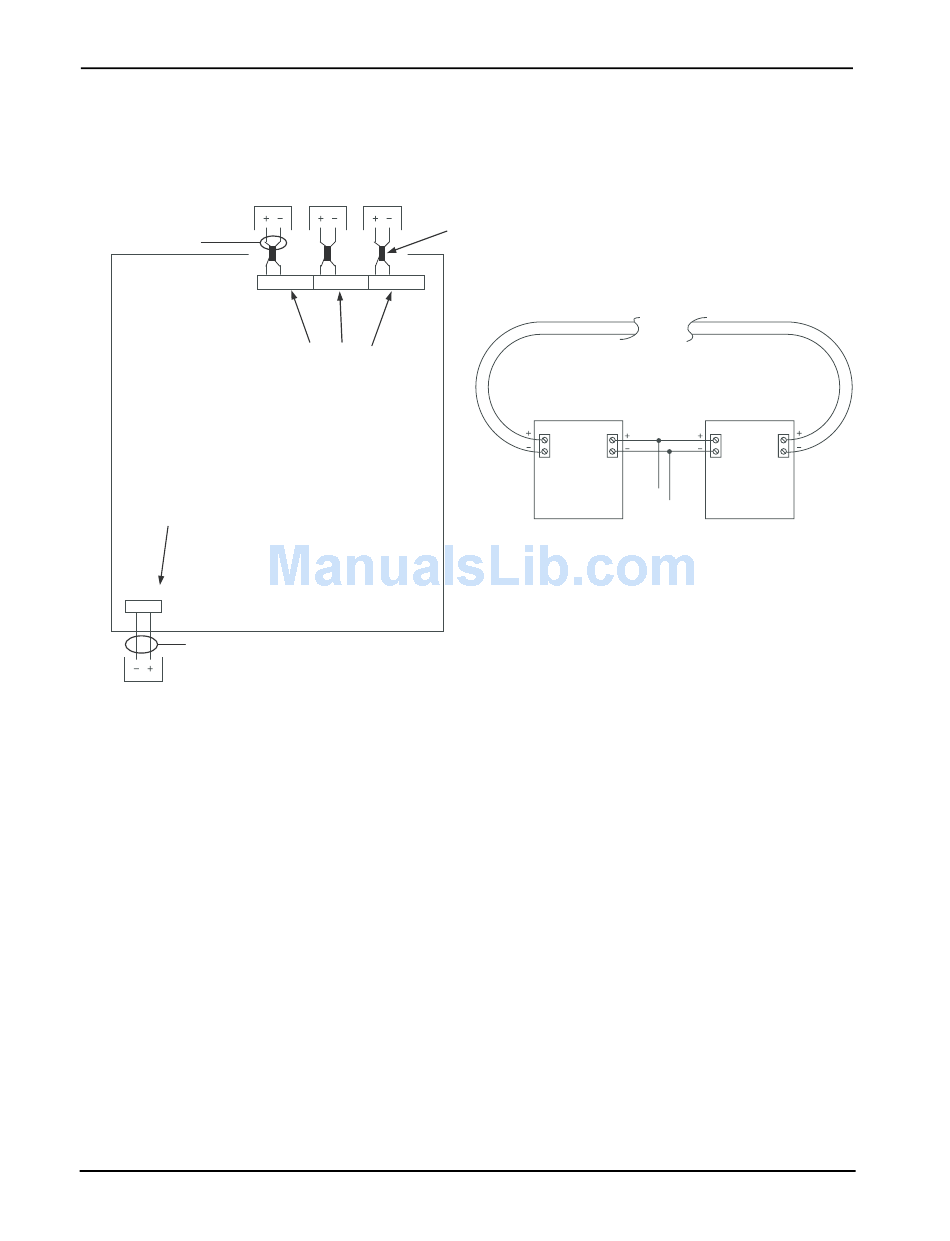

Figure 6-8. Auxiliary Power Wiring

Ferrite bead
Required for RF
immunity to CE
specified levels.
Use kit 4100-5129.
Primary
TB1 TB2
4090-9117
ISOLATOR
Class A aux power wiring requires the use
of 4090-9117 IDNet Power Isolators, as
shown above.
6-14
Chapter 6 4100ES SPS Field Wiring
Devices
Return
TB1 TB2
4090-9117
24V
ISOLATOR
0V
To SPS/
RPS
