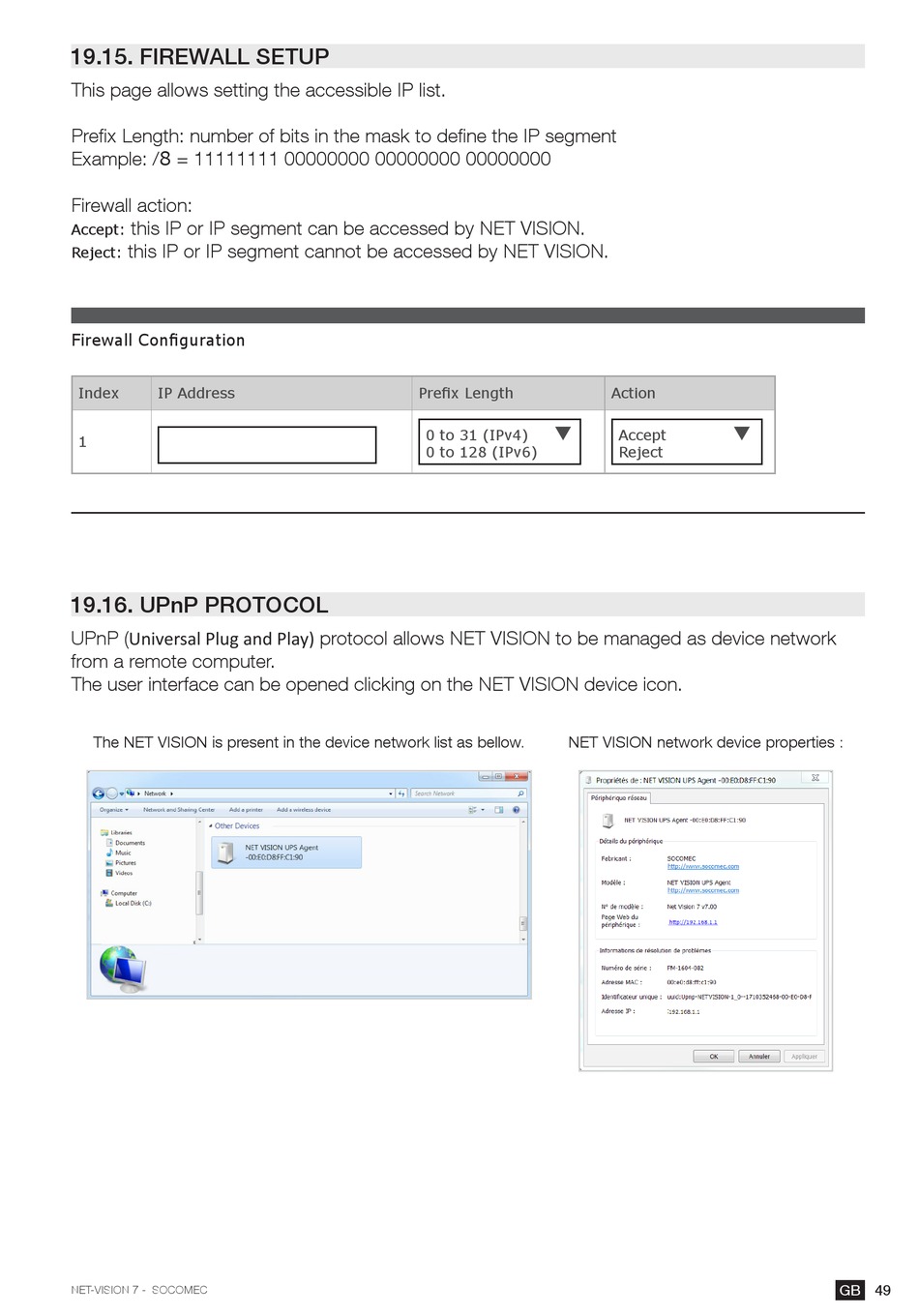

19.15. FIREWALL SETUP

This page allows setting the accessible IP list.
Prefix Length: number of bits in the mask to define the IP segment
Example: /8 = 11111111 00000000 00000000 00000000
Firewall action:
this IP or IP segment can be accessed by NET VISION.
Accept:
this IP or IP segment cannot be accessed by NET VISION.
Reject:
Firewall Configuration
Index IP Address
1

19.16. UPnP PROTOCOL

UPnP (Universal Plug and Play) protocol allows NET VISION to be managed as device network
from a remote computer.
The user interface can be opened clicking on the NET VISION device icon.
The NET VISION is present in the device network list as bellow.
NET-VISION 7 - SOCOMEC
Prefix Length

0 to 31 (IPv4)
0 to 128 (IPv6)
NET VISION network device properties :
Action

Accept
Reject
GB 49
