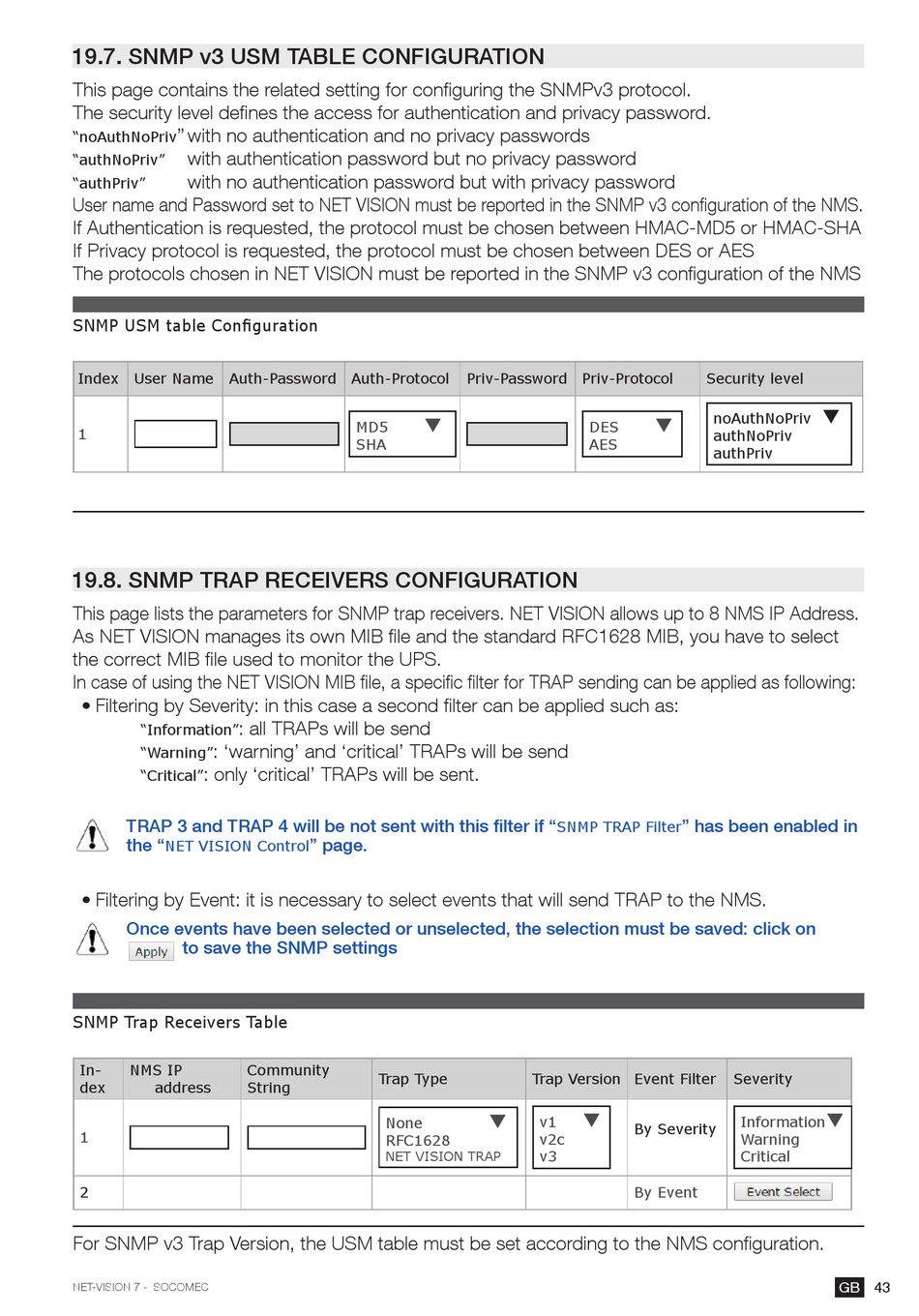

19.7. SNMP v3 USM TABLE CONFIGURATION

This page contains the related setting for configuring the SNMPv3 protocol.
The security level defines the access for authentication and privacy password.
" with no authentication and no privacy passwords
"noAuthNoPriv
with authentication password but no privacy password
"authNoPriv"
with no authentication password but with privacy password
"authPriv"
User name and Password set to NET VISION must be reported in the SNMP v3 configuration of the NMS.
If Authentication is requested, the protocol must be chosen between HMAC-MD5 or HMAC-SHA
If Privacy protocol is requested, the protocol must be chosen between DES or AES
The protocols chosen in NET VISION must be reported in the SNMP v3 configuration of the NMS
SNMP USM table Configuration
Index User Name Auth-Password Auth-Protocol
1

19.8. SNMP TRAP RECEIVERS CONFIGURATION

This page lists the parameters for SNMP trap receivers. NET VISION allows up to 8 NMS IP Address.
As NET VISION manages its own MIB file and the standard RFC1628 MIB, you have to select
the correct MIB file used to monitor the UPS.
In case of using the NET VISION MIB file, a specific filter for TRAP sending can be applied as following:
• Filtering by Severity: in this case a second filter can be applied such as:
: all TRAPs will be send
"Information"
: 'warning' and 'critical' TRAPs will be send
"Warning"
: only 'critical' TRAPs will be sent.
"Critical"
TRAP 3 and TRAP 4 will be not sent with this filter if "
the "
NET VISION Control
• Filtering by Event: it is necessary to select events that will send TRAP to the NMS.
Once events have been selected or unselected, the selection must be saved: click on
to save the SNMP settings
SNMP Trap Receivers Table
In- NMS IP
dex address
1
2
For SNMP v3 Trap Version, the USM table must be set according to the NMS configuration.
NET-VISION 7 - SOCOMEC
MD5
SHA
" page.
Community
Trap Type
String
None
RFC1628
NET VISION TRAP
Priv-Password Priv-Protocol

DES
AES
SNMP TRAP Filter
Trap Version Event Filter


v1
v2c
v3
Security level
noAuthNoPriv

authNoPriv
authPriv
" has been enabled in
Severity
Information
By Severity
Warning
Critical
By Event


