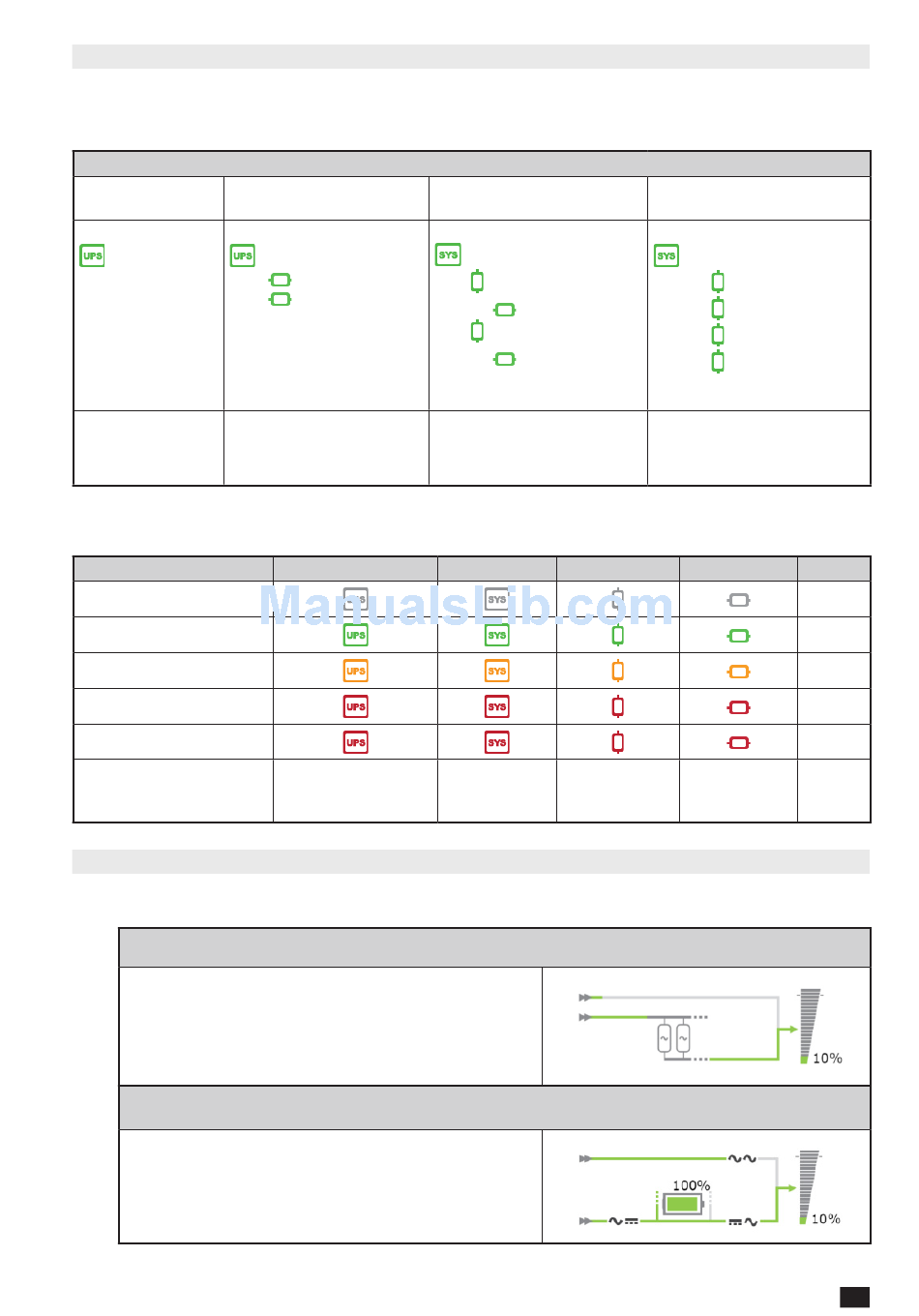

12.3. UPS ARCHITECTURE TREE-VIEW

NET VISION automatically recognizes the UPS topology and adapts the UPS tree-view and synoptic view.
SINGLE UNIT UPS
UPS reference
Modules numbered from 1
to 8, according the physical
position in the unit's cabinet
Device status management:
STATUS
On standby
Operating
Operating with alarm
Operating with critical alarm
Imminent stop
Click for access to:

12.4. UPS SYNOPTIC

NET VISION manages 2 types of synoptic: SYSTEM VIEW and UNIT VIEW
Overviews of units' input and bypass input sup-
ply and the global output of the UPS.
The UPS output parameters table gives the glob-
al measurements of all units that are operating.
UNIT VIEW FOR SINGLE, MODULAR OR UNITS AS PART OF A PARALLEL SYSTEM
This view gives details of rectifier and bypass
inputs supply, battery status and unit output pa-
rameters.
NET-VISION 7 - SOCOMEC
UPS TOPOLOGIES
MODULAR UNIT UPS
UPS reference
Module number
Module number
SINGLE / MODULAR
UNIT SYNOPTIC
UNIT TABLE
SYSTEM VIEW FOR PARALLEL SYSTEMS
MODULAR SYSTEM
Up to 3 units in parallel
SYSTEM reference
Unit number
Module number
Unit number
Module number
Modules numbered from 1
to 24, according the physical
position in the unit's cabinet
SYSTEM
UNIT
SYSTEM
UNIT
SYNOPTIC
SYNOPTIC
UPS TABLE
UNIT TABLE
PARALLEL SYSTEM UPS
Up to 10 units in parallel
SYSTEM reference
Unit number
Unit number
Unit number
Unit number
In case of centralized bypass,
the Bypass Unit is not repre-
sented
MODULE
flashing
MODULE
TABLE
