6. If the right (CH1) elevon moves down with up elevator stick, change the its travel direction
by pressing the
Cursor Right
key until you reach -50%. Otherwise, continue.
Decrease
7. Now you'll input the amount of aileron stick response on the right (CH1) elevon by pressing
the key once. Now the little arrows move both over and under the 1, and you
Cursor Right
may adjust the amount of right elevon travel with the
50% is a good starting point. As before, change the sign and use -50% if it travels the wrong
way with aileron stick.
8. Now you'll input the amount of aileron stick response on the left (CH2) elevon by pressing
the key once. Now the little arrow moves under the 2, and you may adjust the
Cursor Right
amount of left elevon travel with the
starting point. Change the sign if travel needs to be reversed.

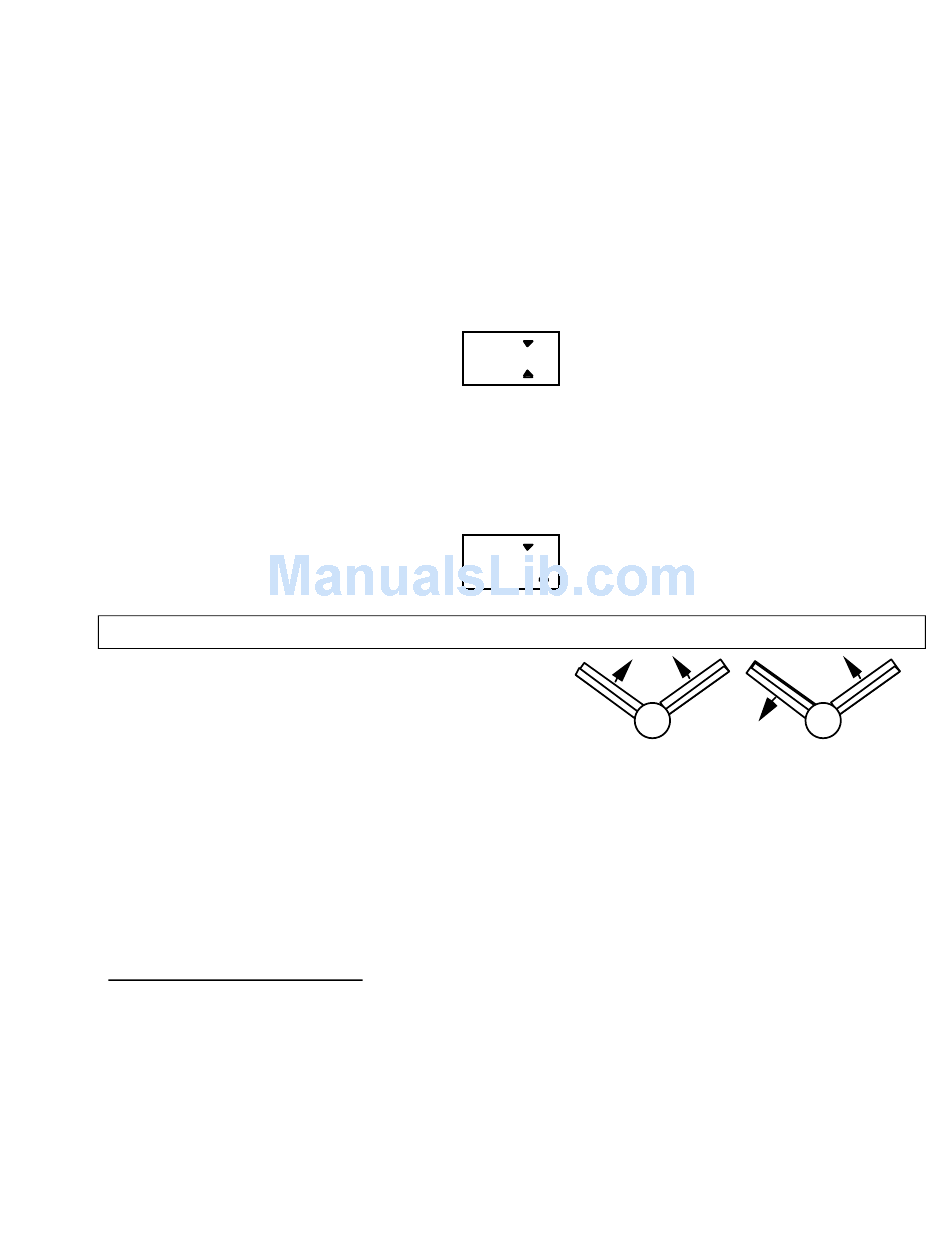

VTAL — V-Tail Mixing
V-tail mixing is used with V-tail aircraft so that
both elevator and rudder functions are combined for
the two tail surfaces, called "ruddervators." The
response to both elevator and rudder inputs can be
adjusted independently. However, if you program in too much elevator or rudder travel, when
both rudder and elevator are commanded the servos may reach their travel limits before full stick
motion has occurred. Therefore, you should keep the travel settings at 50% or below and adjust
the control linkages to get the travel you desire. Note that you cannot have both V-tail and
elevon mixing active at the same time.
Setting up V-Tail mixing
1. The right ruddervator should be plugged into CH2, and the left ruddervator should be
plugged into CH4.
2. Press one of the
indicator will show.
3. Press the
Active/Inhibit (Clear)
Aircraft
key (the little arrow moves under the 1), then press the
MAS
SLV
Data +Increase and –Decrease
MAS
SLV
buttons repeatedly to select the
Up Down Edit
key to activate the V-tail function. The display will show On.
(ACRO)
Section
Data +Increase and –Decrease
N
1 2
CH
R
N
1 2
CH
R
CH2
Up Elevator
– 55 –
Data –
keys. 50% is a good
CH4
CH2
CH4
Left Rudder (view from rear)
window. The

VTAL

keys.
INH
