HITEC AGRESSOR AM Instruction Manual

2 C H A N N E L A M R A D I O C O N T RO L S YS T E M
Table of Contents
1. System Specifications
a. Transmitter
page
b. Accessories
c. Servo
d. Options
2. Transmitter Functions and Operations
a. Power Switch
page
b. Battery Indicator LED's
c. Steering Dual Rate
d. Steering and Throttle trims
e. Tuning Cover
f. Servo Reversing switches
page
g. Battery Cover
h. Antenna
i.Grip Pad
j.Crystal
k.Charging Jack
page
l.Steering Wheel
m.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
page
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
page
8. Racers Tips
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to ::
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.
2
INSTRUCTION MANUAL
Introduction

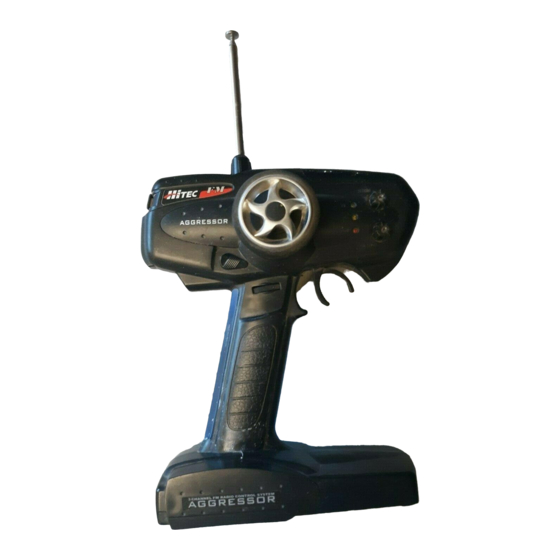

Congratulations on your purchase of the Aggressor AM pistol grip radio system. The Aggressor AM is
loaded with many great features to maximize your R/C experience. Please read this manual
carefully to familiarize yourself with the operation of your new Aggressor. After reading this manual,
store it in a safe place for future reference.
System Features
- Ergonomically designed 2 channel Pistol Grip AM Radio
- Servo Reversing (All channels)
- Dual Rate Steering (Adjustable on the fly)
- 3 L.E.D. Battery status indicators
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- BEC receiver
- Standard HS-311 or 322 servo
- Receiver dry battery holder
1. System Specifications
A) Transmitter:
- Power Output: 500mW
- Current drain 180mA
- Modulation: AM/PPM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver:
- HAS-02MB (or HP-2RNB)
- Modulations: AM
- Power Supply: 4.8V~8.4V
- Weight: 0.81oz
- Size: 1.2"x1.9"x 0.7"
- Current drain: 30mA +/- 0.3mA
- BEC Maximum output: 3.0A
C) Servo:
- HS-311
- Voltage range: 4.8 - 6V
- Speed: 0.15sec/60 degree (6V)
- Torque: 51in/oz (6V)
- Weight: 1.5oz
- Size: 1.57" x 0.78" x 1.43"
D) Options:
- Red, Blue and Black colored grip pads in two sizes each (Sold separately).
- Tuning covers available in Red, Blue and Clear paintable, as well as custom designs in
Silver Carbon, and Camouflage (Sold separately).
3
