HITEC Aggressor FM Instruction Manual

Table of Contents
1. System Specifications
a. Transmitter
b. Receiver
page
c. Servo
d. Accessories
e. Options
2. Transmitter Functions and Operations
a. Power Switch
b. Battery Indicator LED's
page
c. Steering Dual Rate
d. 3rd Channel Push Button
e. Steering and Throttle trims
f. Tuning Cover
g. End Point Adjustments (EPA
page h. Servo Reversing switches
i. Battery Cover
j. Antenna
k. Grip Pad
l. Crystal
m. Charging Jack
page
n. Steering Wheel
o.Throttle Trigger
3. Transmitter Battery Installation
4. Recharging Batteries
5. Receiver and Servo Connections
page
a. Receiver
b. Servos
c. Battery
6. Troubleshooting Guide
7. Warnings
page
8. Racers Tips
Product Service Information ( for USA & Canada only )
In the event you would require service to your radios, please send the parts to :
Hitec RCD USA, Inc. Service Department
12115 Paine St.
Poway, CA 92064
Please include your name address and telephone number along
with a brief description of the failure or the work that you are requesting to be done.
2
AGGRESSOR
Introduction

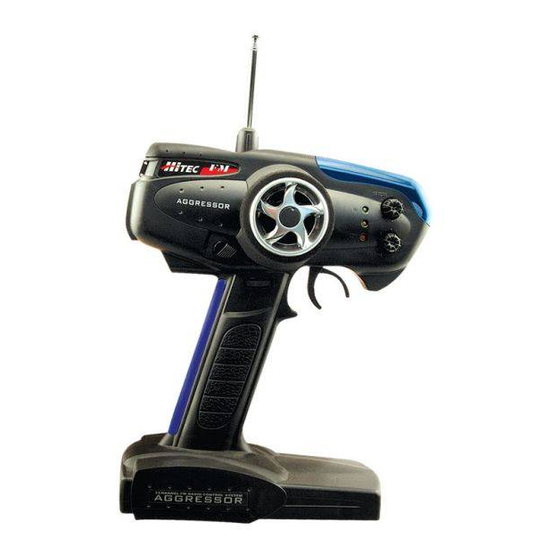

Congratulations on your purchase of the Aggressor FM pistol grip radio system.
The Aggressor FM is loaded with many great features to maximum your R/C experience.
Please read this manual carefully to familiarize yourself with the operation of your new Aggressor.
After reading this manual, store it in a safe place for future reference.
System Features
- Ergonomically designed 3-Channel Pistol Grip FM Radio
- Servo Reversing (Channels 1 & 2)
- End Pont Adjustments (EPA) for Steering and Throttle
- Dual Rate Steering (Adjustable on the fly)
- 3rd Channel push button for shifting
- 3 L.E.D. Battery status indicators
- Audible power indicator
- Removable crystals for easy channel changing (If this is legal in your Country)
- Interchangeable rubber grip pads to fit all hand sizes
- Assorted colored grip pads and tuning covers for personalizing your radio
- Foam steering wheel for comfortable control
- Charging Jack for optional rechargeable batteries
- 3-CH FM micro receiver
- Standard HS-325HB servo
- Receiver dry battery holder
1. System Specifications
A) Transmitter:
- Current drain 180mA
- Modulation: FM
- Power supply: 8AA alkaline, Nicad or NiMh batteries
- Frequencies: 27mhz (6 channels), 75mhz (30 channels)
B) Receiver: C) Servo:
- HFS-03MM
- HS-325HB
- Modulations: FM - Voltage range: 4.8 - 6V
- Power Supply: 4.8V- 6V - Speed: 0.15sec/60 degree (6V)
- Weight: 0.6oz
- Torque: 51in/oz (6V)
- Size: 1.5 x 1.0 x 0.6" - Weight: 1.5oz
- Current drain: 30mA +/- 0.3mA - Size: 1.6" x 0.8" x 1.4"
D) Accessories:
- "Brake Pad" This small piece of foam can be attached to the brake lever on the
trigger to take up any space between your finger and the lever for a custom fit.
E) Options:
- Red, Blue and Black colored grip pads in large and small sizes (Sold separately).
- Tuning covers available in Red, Blue and Clear, as well as custom designs in
Silver Carbon and Camouflage (Sold separately).
3
