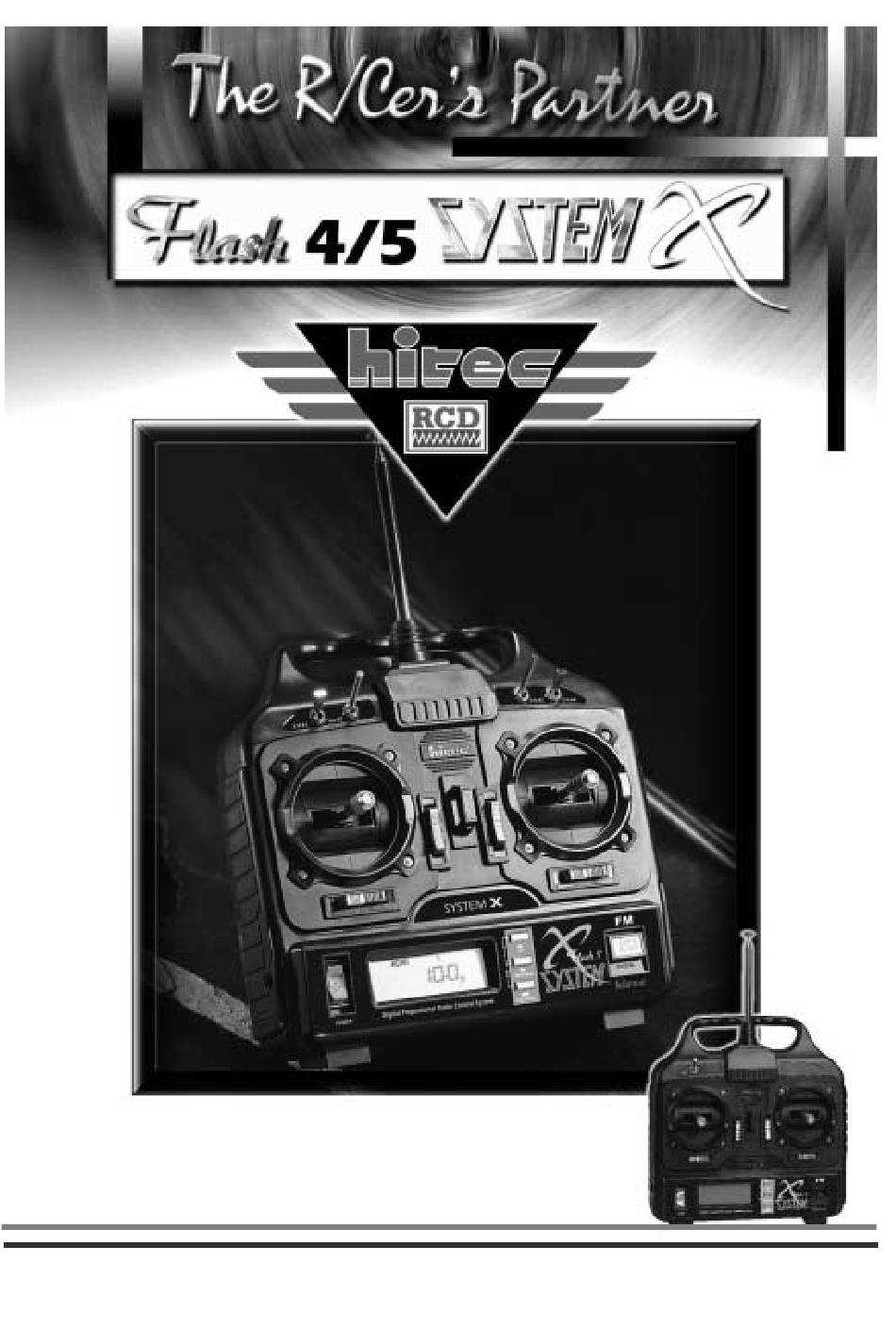

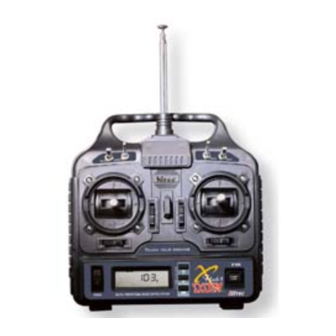

- Page 1 Operational Manual 5 Model Memory and 3 Pre-set Mixes 3 Model Flight Modes and Auto Save Feature 4/5 Channel Programmable Radio Control System...
-
Page 2: Table Of Contents
Table of contents I. Introduction II. Features and Specifications 1. Transmitter 2. Receiver 3. Battery Use in The Flash System X III. System Layout 1. Channel Assignment 2. Mode 1 and 2 Information 3. Switch Assignment 4. Digital Trims 5. System Overview and Menu Defaults IV. -
Page 3: Introduction
Starting from the premise that all modelers could benefit from the control provided by digital electronics and computerized mixing. Hitec s engineers looked at every feature available on today s four and five channel radios. The first step was to design a new ergonomic transmitter case that is truly comfortable to hold and is well balanced when in use. -
Page 4: Receiver
Flash 4 and 5 System X - 4/5 channel Microprocessor design - 5 model memory - In-flight timer and alarm - Mode I or Mode II capable - Low battery warning - End point adjustments for all channels - All channel servo reversing - Exponential rates on channels 1, 2 and 4 - Data reset to defaults - Trainer jack... -
Page 5: System Layout
III. System Layout 1. Channel Assignment Channel 1: Aileron Channel 2: Elevator Channel 3: Throttle or Flap Channel 4: Rudder Channel 5: Gear or Aileron/Elevon or Flap/Flaperon function. (Flash 5 System X model only) 2. Mode 1 and 2 Information As shipped from the factory, your radio was set up to operate in either Mode I or Mode II configuration. - Page 6 BATTERY (600mA 8 CELL NICDS) TX CHARGING PLUG TRAINER JACK SPARE X-TAL STORAGE BATTERY COVER CHARGING PLUG RX CHARGING PLUG SWITCH HARNESS AILERON ELEVATO RECEIVER ANTENNA THROTTL RUDDER RETRACT LANDING GEAR RECEIVER...
-
Page 7: Switch Assignment
3. Switch Assignment The Flash 5 System X is capable of three different flight modes and the switches have different functions in the different flight modes. Mode & Switch Function Channels ACRO Mode Switch 1 Elevator Dual and Exponential rates. Switch 2 Trainer Switch Switch 3... - Page 8 The System X has two main menu programs to select from when setting up your model(s) with each menu having separate methods of access to a particular menu. This prevents the accidental editing or changing of programs in the incorrect mode . The first menu you will access is called the INITIAL MODE menu and is comprised of the following menu choices: 1.
-
Page 9: Programming Your System X Radio
IV. Programming your System X Radio 1. Model Selection The System X offers the modeler the ability to store the flight settings for up to five (5) separate models into non-volatile memory. Even if the main battery pack is removed from the System X transmitter, all memory settings will be retained safely. As a safety feature, the System X has a separate access procedure to allow you to select each model as you wish for programming or flying. -
Page 11: Stick Mode Change
In the GLIDACRO mode, ELEVON mixing is not available to you, however V-TAIL mixing is available, as is SW # 3 as a three- position function switch for mixing Ailerons (CH 1 and CH 5), and Elevator (CH 2). All three channels may be mixed in this mode to accomplish a number of functions. -
Page 12: Countdown Timer Feature
Your conversion from Mode II to Mode I is now complete. Do the reverse of this procedure to change from Mode I to Mode II style, if necessary. C. Countdown Timer Feature Your System X radio is equipped with a built-in timer to alert you to any number of situations, such as low fuel, low receiver battery or even task completion time. -
Page 13: Data Reset Feature
When you select the V-TAIL option, and you desire to have the V-tail work from the right side aileron stick, it is necessary to use the Aileron to Rudder mixing function. Otherwise, the V-tail will work from the rudder stick for turning and the elevator stick for pitch movement e. -
Page 14: Main Edit Mode Programming
followed quickly by complete stoppage, your receiver battery may need to be charged. If so, please charge the receiver battery with the system AC charger for a period of at least 16 hours before proceeding. Now that you have movement of the servos to the transmitter commands, we will check that you have the correct stick mode programmed into the transmitter. - Page 15 setup extremely sensitive control surfaces for the expert pilot by extending the servo travel range. Adjustment of any one channel can be adjusted from 0% (no servo movement) to 125% of normal servo travel. Normal servo travel is considered to be 30 degrees each side of center for a total servo range of 60 degrees.
- Page 17 The LCD screen should display the EPA function screen, as well as all 5-channel numbers. Channel 1 should be flashing on the screen and this tells you that you are ready to adjust the Aileron (channel 1) end points. Now, turn ON your receiver with servos connected so that you can watch the effect of your adjustment.
-
Page 18: Exponential Rate Adjustment
adjust the travel by depressing Channel 1 trim key, either right to increase the travel, or left to decrease the travel. Do this now, and watch as the display value shown on the transmitter increases in value and the servo begins to move a longer distance from center. -
Page 19: Dual Rate Adjustment
sensitive control response and when you need milder control response. Most pilots need mild response around neutral. The Channel 1 trim key will adjust the amount of exponential control response to either more sensitive at neutral or less sensitive at neutral. -
Page 20: Servo Reversing
programming this feature. By toggling back and forth you can see the results of your programming on the servo movement. MODE FUNCTION SWITCH & POSITION ACRO and GLIDACRO MODE Elevator SW # 1 full UP Aileron SW # 4 full UP GLID MODE Elevator and Ailerons SW # 4 full UP... -
Page 21: Aileron / Rudder Mixing
If in GLIDACRO: 1. Depress both the UP and DN/TIMER keys simultaneously, the LCD display should change to the MAIN EDIT MODE menu. 2. Press the UP key to scroll to the FLP 1 screen. 3. With SW # 3 UP , program your percentages as described below, 4. -
Page 22: Glid Mode Or Glider Mode Programming S Supplement
The LCD screen will show you the aircraft mode you are in,(ACRO, GLID, Etc), as well as the AIL RUD mix message in the lower left of the LCD screen. The RUD message will be seen flashing in the lower left corner with an OFF message directly above it. -
Page 23: Glid Acro Mode Or Combination Aerobatic Glider Supplement
match Channel 1 at 50%. What you just did was program both ailerons to move downward 50% of their travel, the flaps to move 50% and the elevator to 25% of its travel. Now by moving the SW # 3 switch to the middle position and programming channel 1,2 and 5 as we did previously we will get a proportional flaperon mix that can be adjusted with the throttle stick.
