- Page 1 series preliminary version 0.1...
- Page 2 Notes:...
-
Page 3: Table Of Contents
German Light Products GmbH WWW.GLP.DE Table of contents Parts Identification ....................4 Power Supply Unit (PSU) ......................4 X4 Atom Head ..........................5 Safety Precautions ....................6 Mounting ........................8 X4 ATOM Heads ......................... 8 PSU Installation ........................11 Connections ......................12 AC Power .......................... -
Page 4: Parts Identification
German Light Products GmbH WWW.GLP.DE 1 Parts Identification 1.1 Power Supply Unit (PSU) 12-output PSU shown. 6-output PSU similar. LCD display and control buttons air vent fuse holder power switch AC input AC output DMX input DMX output ATOM power and data outputs... -
Page 5: X4 Atom Head

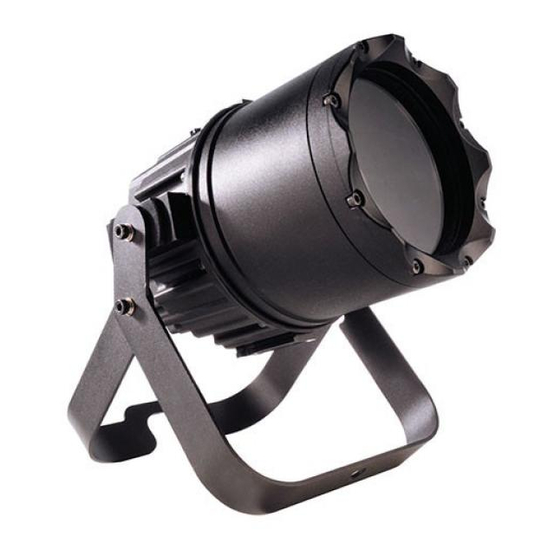

German Light Products GmbH WWW.GLP.DE 1.2 X4 Atom Head ATOM Connector sockets (4) tilt lock screw vent plug safety cable attachment ATOM power and data input: Connect to ATOM PSU ONLY! yoke/floor stand X4 Atom User Manual (v.0.3) -
Page 6: Safety Precautions
German Light Products GmbH WWW.GLP.DE 2 Safety Precautions The X4 Atom is powerful lighting equipment intended for use by experienced lighting professionals. Read this manual before installation or use. For safe and trouble-free operation, install and use only as directed. - Page 7 9. Keep this user manual for future reference. Should you have any questions about the safe operation of your X4 ATOM, please contact your local GLP office, or their authorized distributor, a list of which can be found at www.glp.de.
-
Page 8: Mounting
German Light Products GmbH WWW.GLP.DE 3 Mounting Installation shall be performed by qualified personnel only, in accordance with applicable regulations such as BGV C1 and DIN VDE 0711-217. 3.1 X4 ATOM Heads With an IP 65 rating, the X4 ATOM heads are suitable for outdoor use. (The PSU however must be installed in a dry location.) Heads may be rigged in any orientation or... - Page 9 German Light Products GmbH WWW.GLP.DE Attaching the Yoke Bracket / Floor Stand The yoke bracket / floor stand snaps on to the connector sockets on the outside of the head. To attach to a bracket to an X4 ATOM head, slide the bracket forwards onto two connector sockets until the bracket locks in place.
- Page 10 Verify that each head is securely locked to the connector. ATOM Connector (GLP #767004) To remove an ATOM connector from a socket, press the pin to unlock. Slide the connector backwards off of the socket.
-
Page 11: Psu Installation
German Light Products GmbH WWW.GLP.DE Secondary Attachment Whenever the X4 ATOM is suspended above ground, a safety cable must be used to prevent injury in case the primary attachment fails. The head has a dedicated point for attaching a safety cable at the back. -
Page 12: Connections
Pin 1 = [Ground] / Pin 2 = [Data +] / Pin 3 = [Data -] / Pin 4 = [V+ 24V] The maximum cable length is 60 m (200 ft.). Connect only one (1) GLP X4 ATOM head per PSU output. X4 Atom User Manual (v.0.1) -
Page 13: Accessories
5 Accessories 5.1 ATOM Trussbar The X4 ATOM Trussbar (GLP #767005) holds a row of 4 X4 ATOM heads to which additional heads may be connected easily with ATOM Connectors to assemble a matrix up of up to 4 by 12 heads. -
Page 14: User Settings, Utilities, And Readouts
Max Zoom adjust -99 to 99 Calibration of Zoom-offset Runs a self-diagnostic test and checks Self Inspection head firmware For service personnel. Contact GLP Service to obtain code. PMW freq. can also be adjusted by DMX. X4 Atom User Manual (v.0.1) - Page 15 German Light Products GmbH WWW.GLP.DE LED adjust White adjust red -99 to 99 Adjust red channel intensity Adjust blue channel intensity White adjust blue -99 to 99 Adjust green channel intensity White adjust green -99 to 99 Adjust white channel intensity...
-
Page 16: Effects
German Light Products GmbH WWW.GLP.DE 7 Effects 7.1 Master Intensity The master dimmer applies to all outputs and is available in all DMX modes. 7.2 Special Functions The Special Functions apply to all outputs and are available in all DMX modes. These functions allow you to: ... -
Page 17: Color Mixing (Rgbw Model) / White Balance (Tunable White Model)
German Light Products GmbH WWW.GLP.DE 7.6 Color Mixing (RGBW model) / White Balance (Tunable White model) The RGBW model provides control of the mix of red, green, blue, and white in Normal and Compressed modes. The Tunable White model provides control of the mix of cool white and warm white LEDs. -
Page 18: Dmx Channels
German Light Products GmbH WWW.GLP.DE 8 DMX Channels 8.1 Normal Mode, RGBW Heads: 56/110 DMX Channels Channel Function Master Intensity (all outputs), 0-100% 0-100 0-255 Special Functions No function 0-19 0-50 Silent mode (>1 sec) 20-25 51-64 No function 26-39 65-99 PWM Frequency: 582 Hz-618 Hz (>1 sec) -
Page 19: Normal Mode, Tunable White Heads: 38/74 Dmx Channels
German Light Products GmbH WWW.GLP.DE 8.2 Normal Mode, Tunable White Heads: 38/74 DMX Channels Channel Function Master Intensity (all outputs), 0-100% 1-100 0-255 Special Functions No function 0-19 0-50 Silent mode (>1 sec) 20-25 51-64 No function 26-39 65-99 PWM Frequency: 582 Hz-618 Hz (>1 sec) -
Page 20: Compressed Mode, Rgbw Heads: 38/74 Dmx Channels
German Light Products GmbH WWW.GLP.DE 8.3 Compressed Mode, RGBW Heads: 38/74 DMX Channels Channel Universal Functions Master Intensity, 0-100% 1-100 0-255 Special Functions No function 0-19 0-50 Silent mode (>1 sec) 20-25 51-64 No function 26-39 65-99 PWM Frequency: 582 Hz-618 Hz (>1 sec) -
Page 21: Cleaning And Maintenance
German Light Products GmbH WWW.GLP.DE 9 Cleaning and Maintenance Disconnect the PSU from AC mains power before performing any maintenance. Allow lighting heads to cool for at least 15 minutes. Never use alcohol or solvents to clean the lens! Never let optical parts come into contact with oil, grease, alcohol or similar solvents. -
Page 22: Technical Specifications
German Light Products GmbH WWW.GLP.DE 10 Technical Specifications 10.1 X4 Atom RGBW and CWWW Head Specifications Power supply Power consumption 25 VA (Watt) Power & Signal Input 1 x 4-pin XLR: Power (24V) & Signal (RS-485) from X4 Atom PSU:... -
Page 23: X4 Atom Psu12 Specifications
German Light Products GmbH WWW.GLP.DE 10.2 X4 ATOM PSU12 Specifications Power supply Power consumption Max. 350 VA (Watt) / 25VA (Watt) per X4 Atom head Power input Auto sensing 90-240 V AC, 50-60 Hz Mains in connector PowerCON (blue) max 20A... -
Page 24: X4 Atom Psu6 Specifications
German Light Products GmbH WWW.GLP.DE 10.3 X4 ATOM PSU6 Specifications Power supply Power consumption Max. 350 VA (Watt) / 25VA (Watt) per X4 Atom head Power input Auto sensing 90-240 V AC, 50-60 Hz Mains in connector PowerCON (blue) max 20A... -
Page 25: Dimensions
German Light Products GmbH WWW.GLP.DE 11 Dimensions 11.1 X4 Atom Head Dimensions X4 Atom User Manual (v.0.3) -
Page 26: X4 Atom Psu 12 Dimensions
German Light Products GmbH WWW.GLP.DE 11.2 X4 Atom PSU 12 Dimensions X4 Atom User Manual (v.0.1) -
Page 27: X4 Atom Psu6 Dimensions
German Light Products GmbH WWW.GLP.DE 11.3 X4 Atom PSU6 Dimensions X4 Atom User Manual (v.0.3)
