Connecting the NetBackup 5330 appliance to the Primary Storage Shelf
2 1
Slot 1

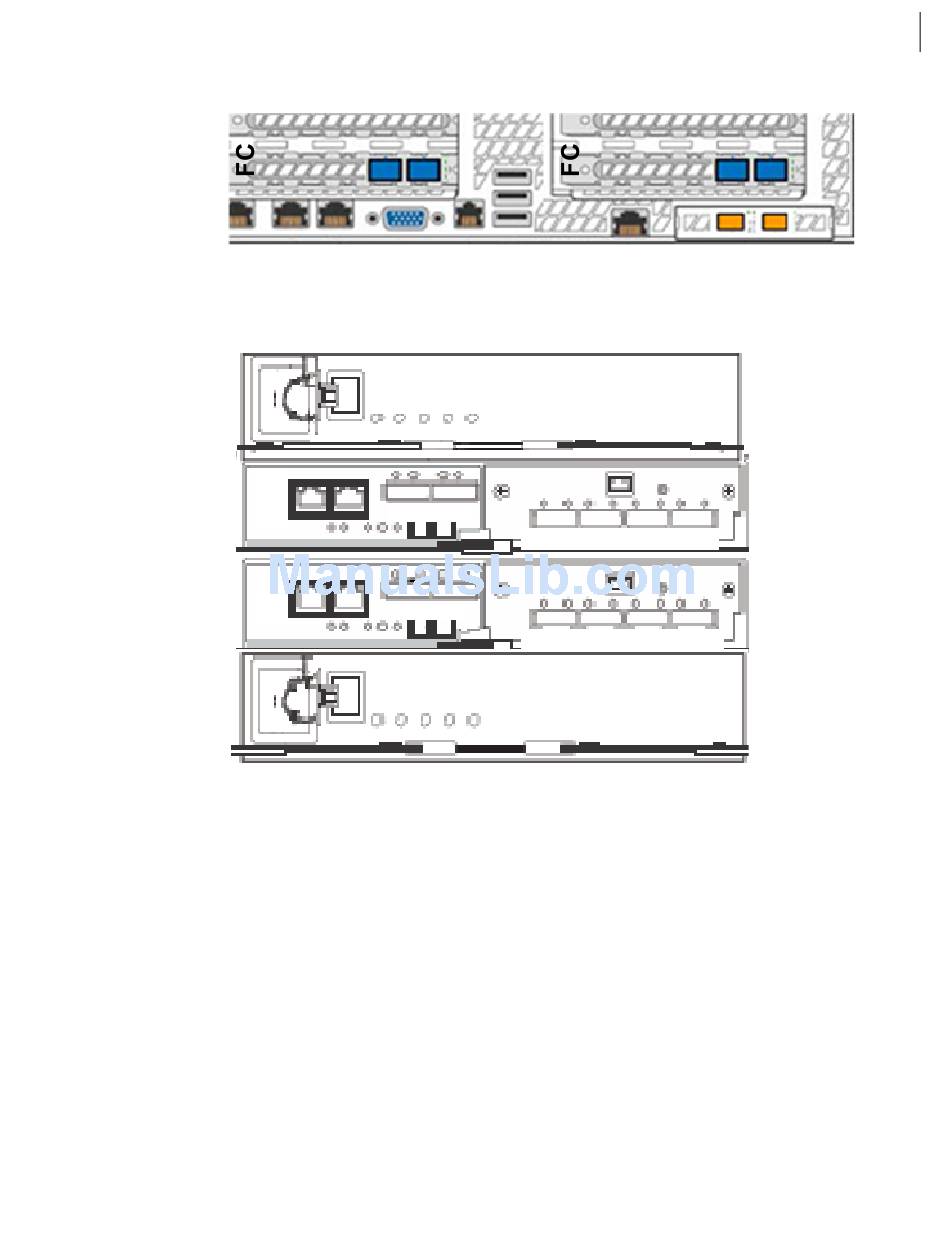

The following diagram shows the Primary Storage Shelf FC ports and SAS ports,
in canisters A and B, in detail.
X X
A
SAS
X X
B
SAS
To connect the appliance to the Primary Storage Shelf
1
Connect the slot 1 FC ports on the appliance to the appropriate Primary Storage
Shelf canister FC ports as follows:
Appliance slot 1, port 1 --> Primary Storage Shelf canister B, FC Ch1
■
Appliance slot 1, port 2 --> Primary Storage Shelf canister A, FC Ch1
■
2 Connect the slot 4 FC ports on the appliance to the appropriate Primary Storage
Shelf canister FC ports as follows:
Appliance slot 4, port 1 --> Primary Storage Shelf canister B, FC Ch2
■
Appliance slot 4, port 2 --> Primary Storage Shelf canister A, FC Ch2
■
See "Connecting the Primary Storage Shelf to the Expansion Storage Shelf"
on page 45.
