Installing the NetBackup 5330 appliance

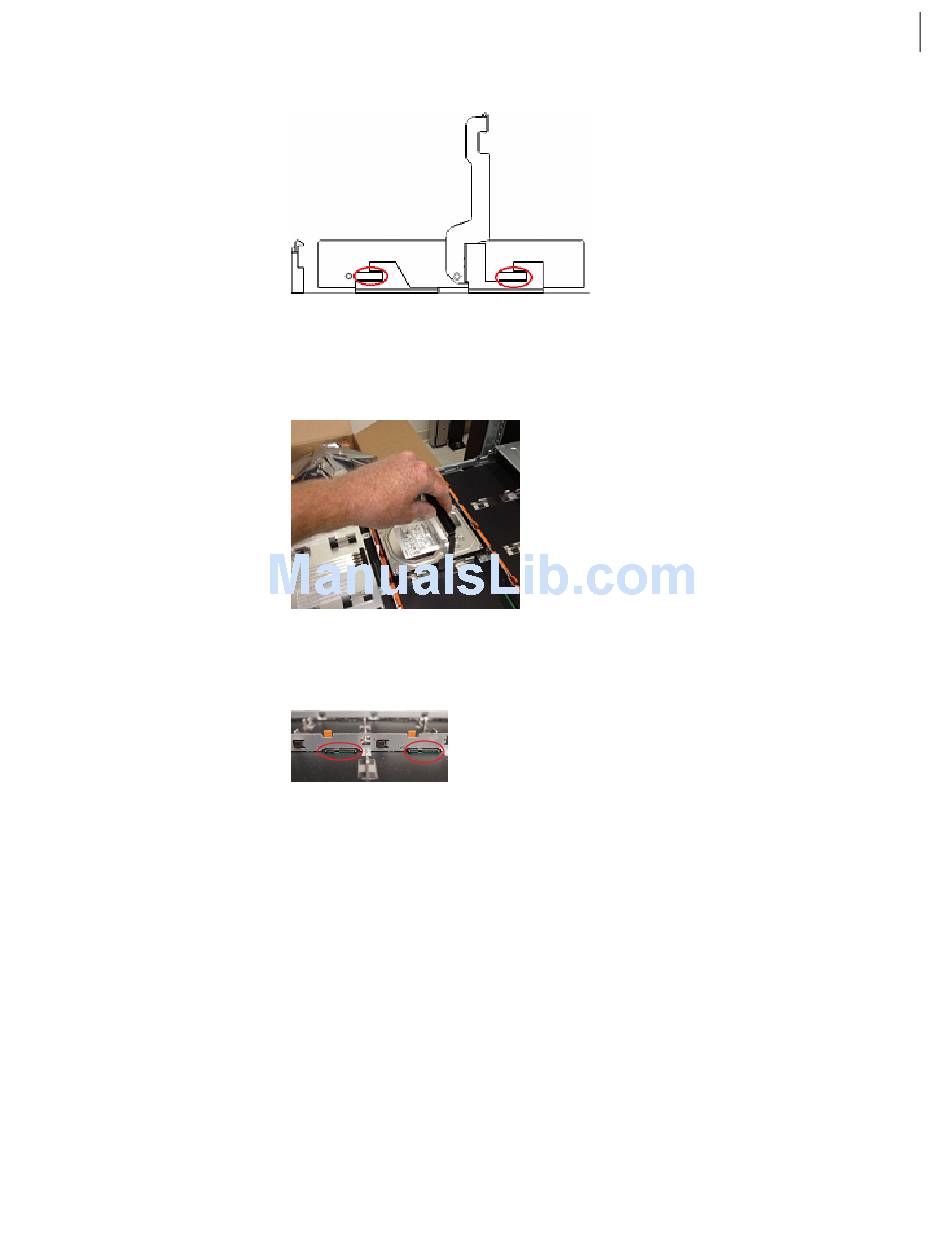

Make sure that the bottom of the disk is seated completely.
■
Push down slightly and start to pull the disk latch towards you.
■
This action moves the disk backwards. The connector on the right, rear, of
the disk fits into the pins in the rear of the slot.
Continue pulling the latch all the way down until it snaps in place under the
■
orange tab in the front.
Repeat this step for the remaining disk spaces in the drawer.
6 After all 12 disks are installed, push the drawer back into the shelf and push
the orange latches inward to secure the drawer.
7
Repeat steps 4 -
Drawer 4, 3, 2, and then 1.
The NetBackup 5330 requires two RU rack spaces. Symantec recommends that
you install the appliance in the space directly above the Primary Storage Shelf.
6 for the remaining drawers in the following order:
