Connecting the NetBackup 5330 appliance to the
Primary Storage Shelf

Connecting the NetBackup 5330 appliance to the Primary Storage Shelf

The appliance ships with four, 1 meter, Fibre Channel (FC) cables. FC cables
connect the appliance to the Primary Storage Shelf canisters. To ensure
communication redundancy, connect the units exactly as described in this topic.
The following diagram and table describe the locations of the FC ports on both
components:

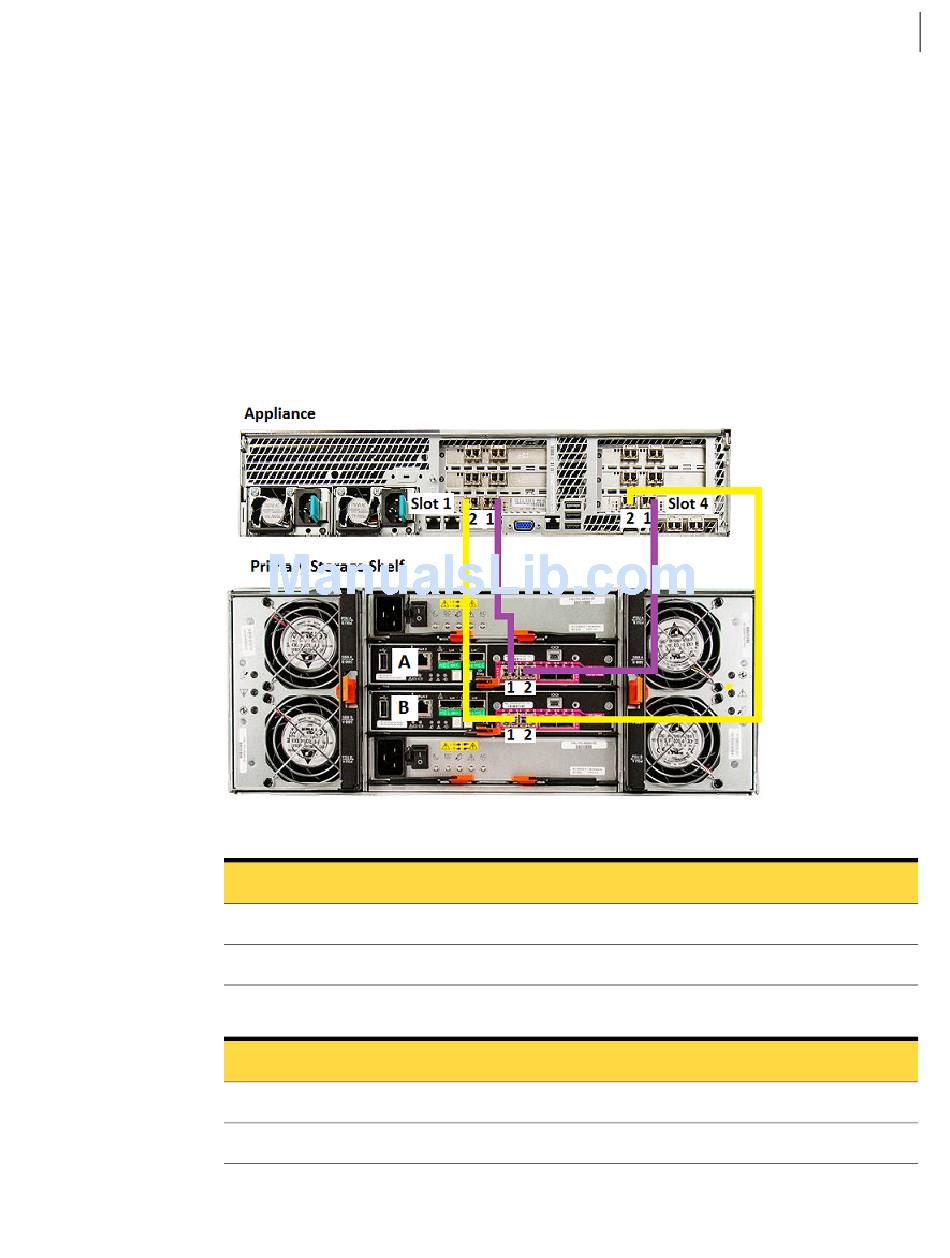

Appliance and Primary Storage Shelf FC port locations
Figure 3-2
Appliance FC ports
Table 3-1
Appliance FC ports
Slot 1; ports 1 and 2
Slot 4; ports 1 and 2
Primary Storage Shelf FC ports
Table 3-2
Primary Storage Shelf FC ports
Canister A; FC Ch1 and FC Ch2
Canister B; FC Ch1 and FC Ch2
The following diagram shows the appliance FC ports in detail.
