NetBackup 5330 appliance PCIe card configurations

The disks in slots 3 and 4 are configured as the RAID 1, Volume 1 device.
■
The appliance uses the disks that are located in slot 2 and slot 5 as hot-spare
■
disks. If a disk in either RAID volume experiences a hardware error, the appliance
automatically initiates a RAID rebuild operation. During the rebuild operation,
the appliance selects a hot-spare disk from slot 2 or slot 5, and then rebuilds
the RAID volume.
The disks in slots 6 and 7 are reserved for future use.
■

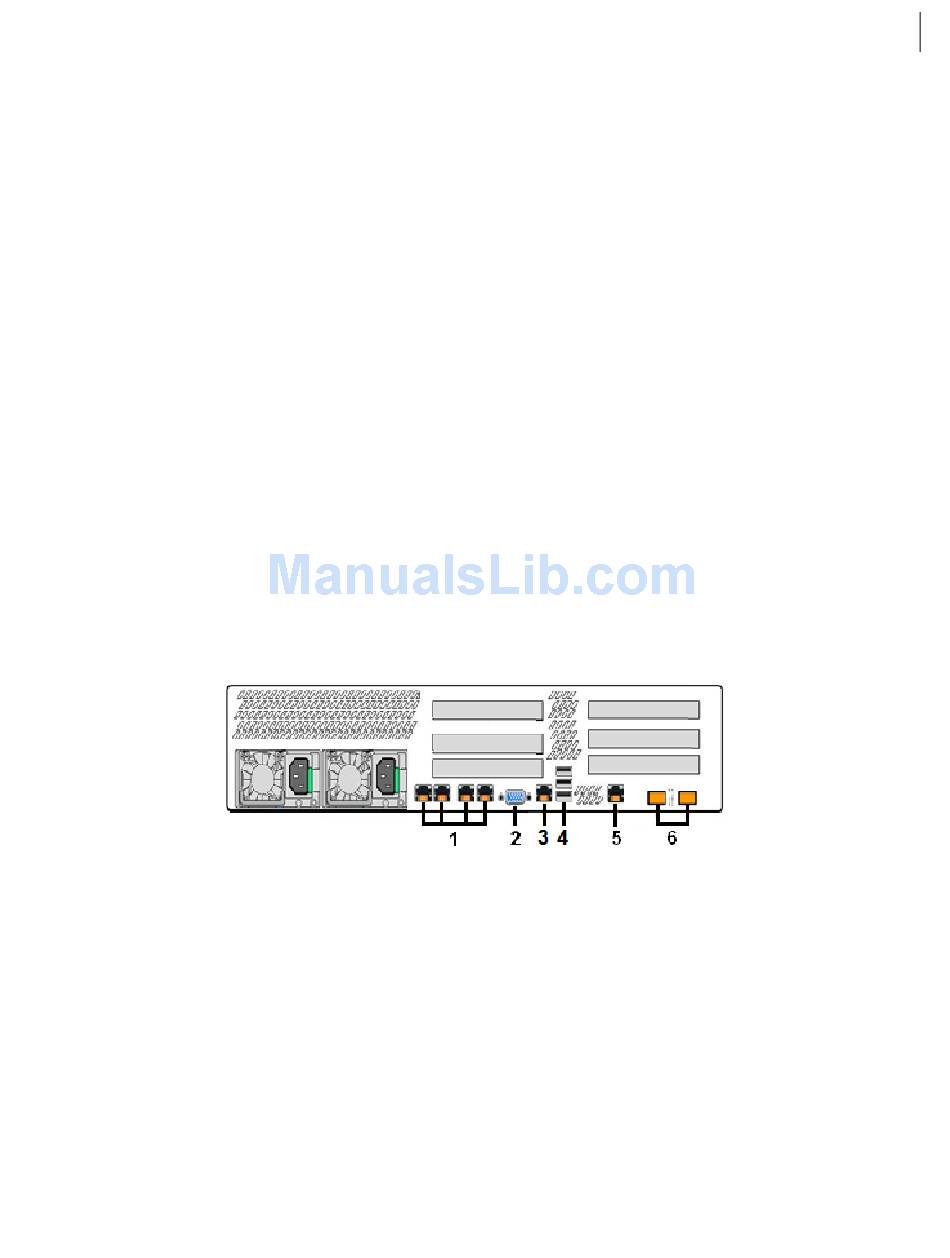

The rear panel of the appliance contains embedded ports and PCIe card slots.
The embedded ports include the following (with numbers associating the ports to
the items in the bulleted list):
Four 1Gb Ethernet ports (1)
■
One Video Graphics Array (VGA) port (2)
■
One serial port (for Symantec Technical Support use only) (3)
■
Three USB ports (4)
■
One Intelligent Platform Management Interface (IPMI) port for remote
■
management (5)
Two 10Gb Ethernet ports (6)
■
The rear panel of the appliance contains six PCIe slots that are numbered 1 to 6.
Slots 1, 2, and 3 are located in PCIe Riser Assembly 2. Slots 4, 5, and 6 are located
in PCIe Riser Assembly 1.
