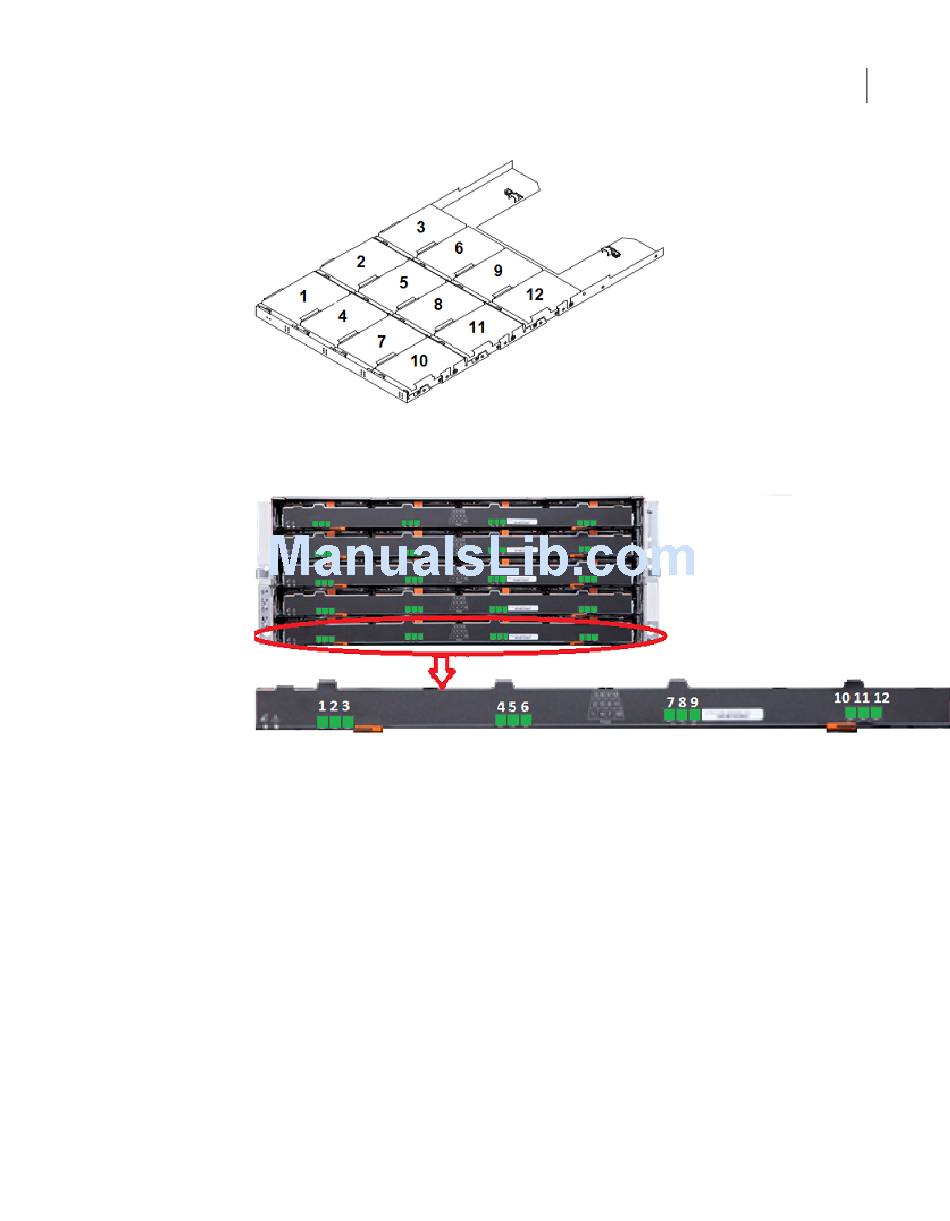

Three LEDs on the front of the drawer provide information about each column of
three slots.
See
Shelf "

NetBackup 5330 cables and connectors

The following types of cables and connectors are provided:
■
■
■
■
"Installing disk drives into a Primary Storage Shelf or an Expansion Storage
on page 35.
Power cords that connect each device to AC power distribution units (PDUs) in
the rack.
Fiber Channel (FC) cables that connect the appliance to the Primary Storage
Shelf.
SAS cables that connect the Primary Storage Shelf to the Expansion Storage
Shelf.
Small Form-factor Pluggable (SFP) modules for FC and 10Gb ports.
SFPs are factory-installed in the cards in the PCIe risers.
Hardware overview
NetBackup 5330 cables and connectors
14
