Side

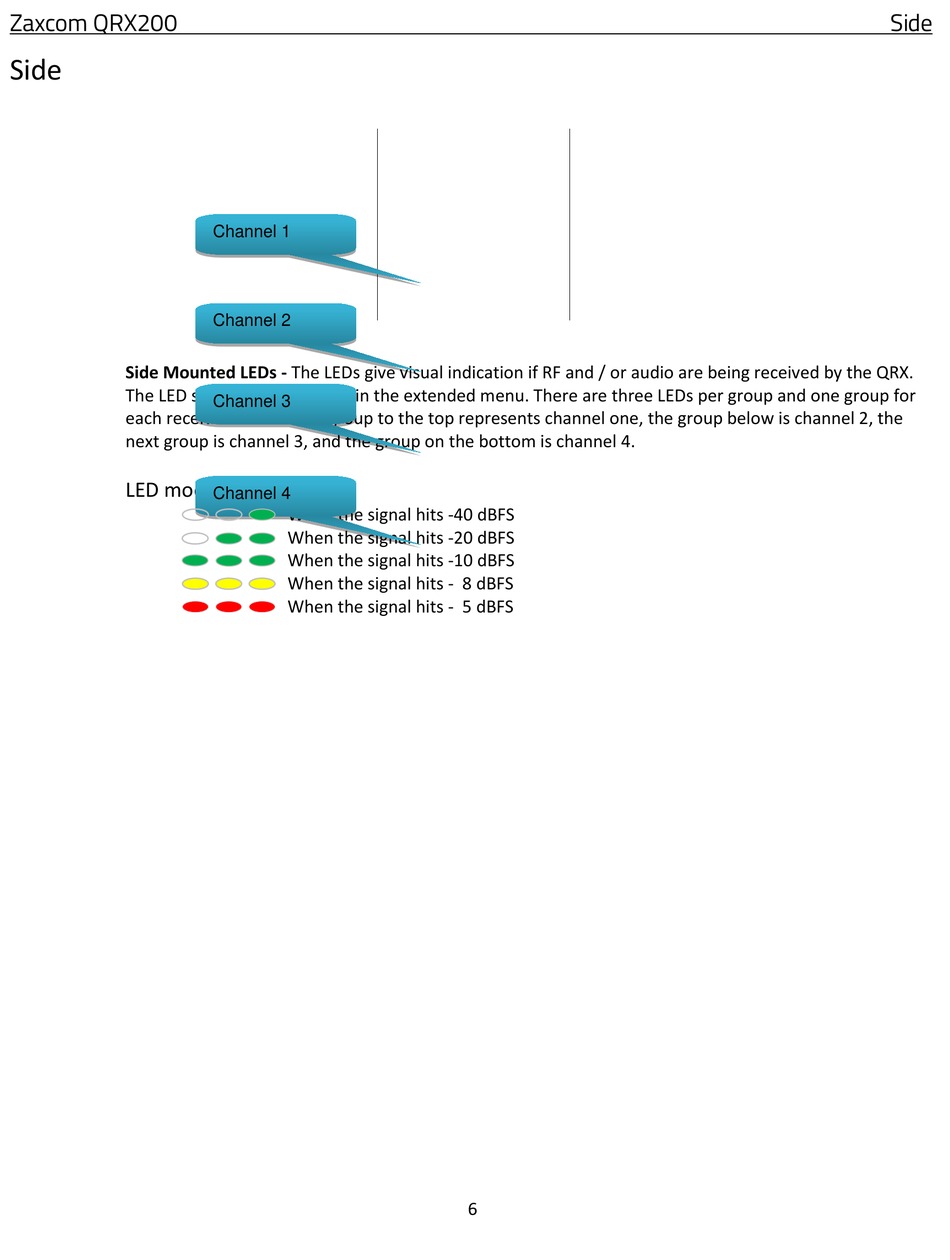

Side Mounted LEDs - The LEDs give visual indication if RF and / or audio are being received by the QRX.
The LED settings are adjusted in the extended menu. There are three LEDs per group and one group for
each receive channel. The group to the top represents channel one, the group below is channel 2, the
next group is channel 3, and the group on the bottom is channel 4.
LED modulation colors
Channel 1
Group
Channel 2
Group
Channel 3
Group
Channel 4
When the signal hits -40 dBFS
Group
When the signal hits -20 dBFS
When the signal hits -10 dBFS
When the signal hits - 8 dBFS
When the signal hits - 5 dBFS
