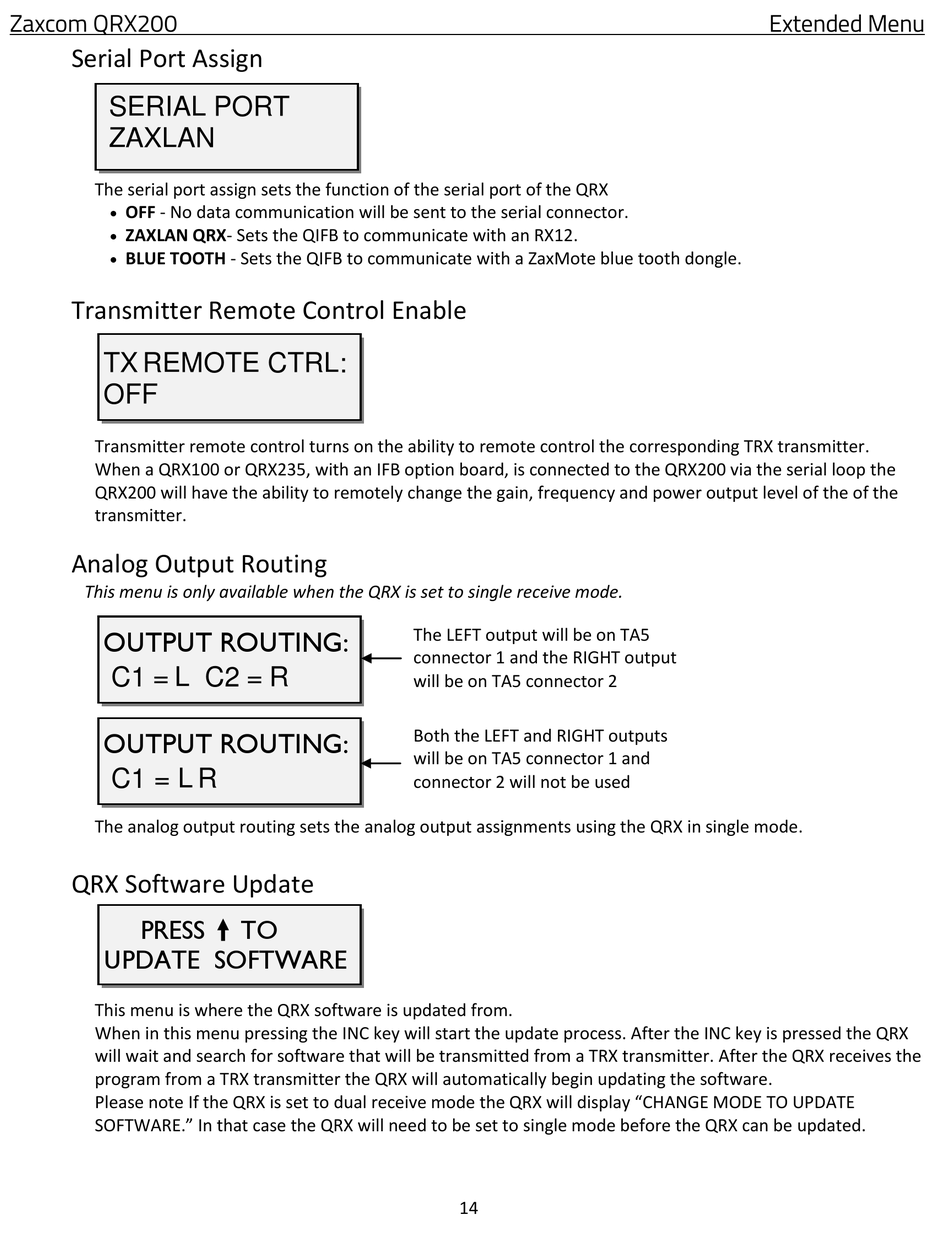

Zaxcom QRX200

Serial Port Assign

SERIAL PORT
ZAXLAN
The serial port assign sets the function of the serial port of the QRX

OFF - No data communication will be sent to the serial connector.

ZAXLAN QRX- Sets the QIFB to communicate with an RX12.

BLUE TOOTH - Sets the QIFB to communicate with a ZaxMote blue tooth dongle.

Transmitter Remote Control Enable

TX REMOTE CTRL:
OFF
Transmitter remote control turns on the ability to remote control the corresponding TRX transmitter.
When a QRX100 or QRX235, with an IFB option board, is connected to the QRX200 via the serial loop the
QRX200 will have the ability to remotely change the gain, frequency and power output level of the of the
transmitter.

Analog Output Routing

This menu is only available when the QRX is set to single receive mode.
OUTPUT ROUTING:
C1 = L C2 = R
OUTPUT ROUTING:
C1 = L R
The analog output routing sets the analog output assignments using the QRX in single mode.

QRX Software Update

PRESS
UPDATE SOFTWARE
This menu is where the QRX software is updated from.
When in this menu pressing the INC key will start the update process. After the INC key is pressed the QRX
will wait and search for software that will be transmitted from a TRX transmitter. After the QRX receives the
program from a TRX transmitter the QRX will automatically begin updating the software.
Please note If the QRX is set to dual receive mode the QRX will display "CHANGE MODE TO UPDATE
SOFTWARE." In that case the QRX will need to be set to single mode before the QRX can be updated.
The LEFT output will be on TA5
connector 1 and the RIGHT output
will be on TA5 connector 2
Both the LEFT and RIGHT outputs
will be on TA5 connector 1 and
connector 2 will not be used
TO
14
Extended Menu
