Zaxcom QRX200

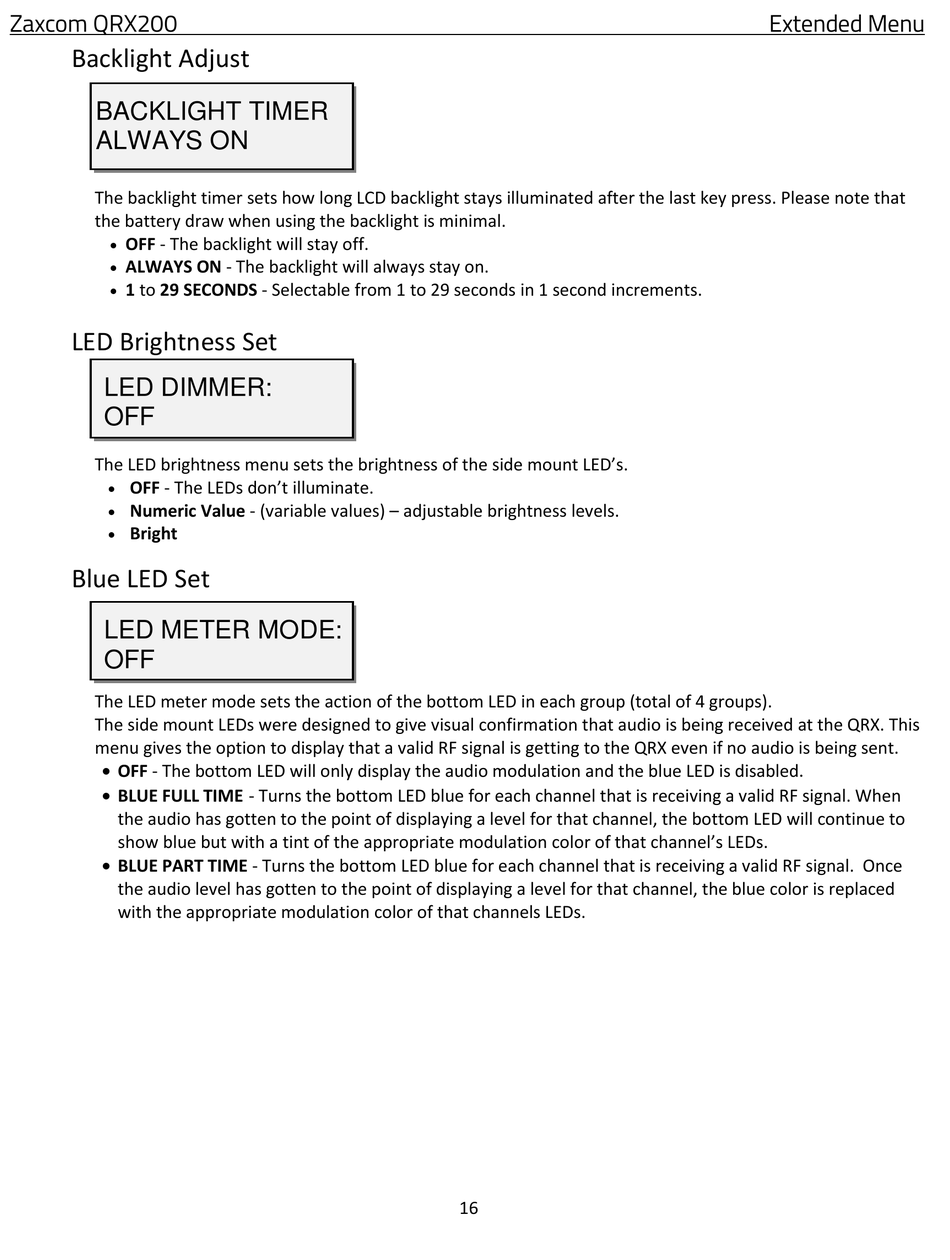

Backlight Adjust

BACKLIGHT TIMER
ALWAYS ON
The backlight timer sets how long LCD backlight stays illuminated after the last key press. Please note that
the battery draw when using the backlight is minimal.

OFF - The backlight will stay off.

ALWAYS ON - The backlight will always stay on.

1 to 29 SECONDS - Selectable from 1 to 29 seconds in 1 second increments.

LED Brightness Set

LED DIMMER:
OFF
The LED brightness menu sets the brightness of the side mount LED's.

OFF - The LEDs don't illuminate.

Numeric Value - (variable values) – adjustable brightness levels.

Bright

Blue LED Set

LED METER MODE:
OFF
The LED meter mode sets the action of the bottom LED in each group (total of 4 groups).
The side mount LEDs were designed to give visual confirmation that audio is being received at the QRX. This
menu gives the option to display that a valid RF signal is getting to the QRX even if no audio is being sent.
 OFF - The bottom LED will only display the audio modulation and the blue LED is disabled.
 BLUE FULL TIME - Turns the bottom LED blue for each channel that is receiving a valid RF signal. When
the audio has gotten to the point of displaying a level for that channel, the bottom LED will continue to
show blue but with a tint of the appropriate modulation color of that channel's LEDs.
 BLUE PART TIME - Turns the bottom LED blue for each channel that is receiving a valid RF signal. Once
the audio level has gotten to the point of displaying a level for that channel, the blue color is replaced
with the appropriate modulation color of that channels LEDs.
16
Extended Menu
