Zaxcom QRX200

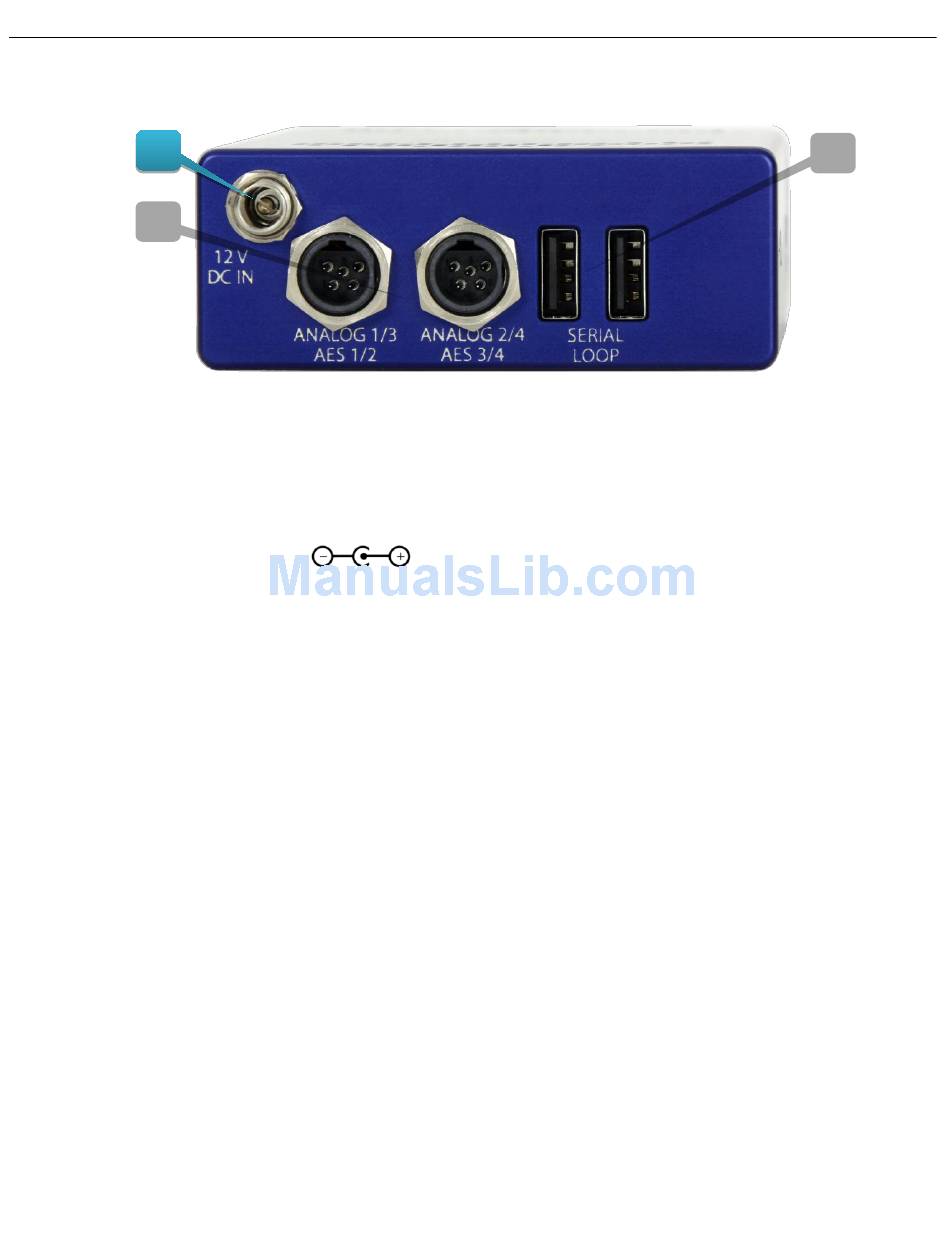

Rear

1
2
1. DC Power Input - The QRX uses a Switchcraft 761K connector.
2. Audio out connectors (2) - TA5M.
These connectors will output the audio from the QRX. The same connectors can be used to output
either analog audio or AES audio. The audio assignments for the TA5 connectors are set in the
extended menu.
3. Serial Loop -The USB style connectors on the back of the QRX allow multiple QRXs to share a single
common QIFB option. For example one master QRX with a QIFB option board can be connected to 3
QRXs with no option boards. The QRXs without option boards will behave as if they have an IFB option
board and will send remote control commands over the serial link to the master QRX.
Please note the USB connectors are NOT generic USB connectors that can be used as a connection to any
computer. These are used to exchange RS-422/RS-485 commands and a special cable is required to do
this please see the wiring diagram section of this manual for more information.
5
Rear
3
