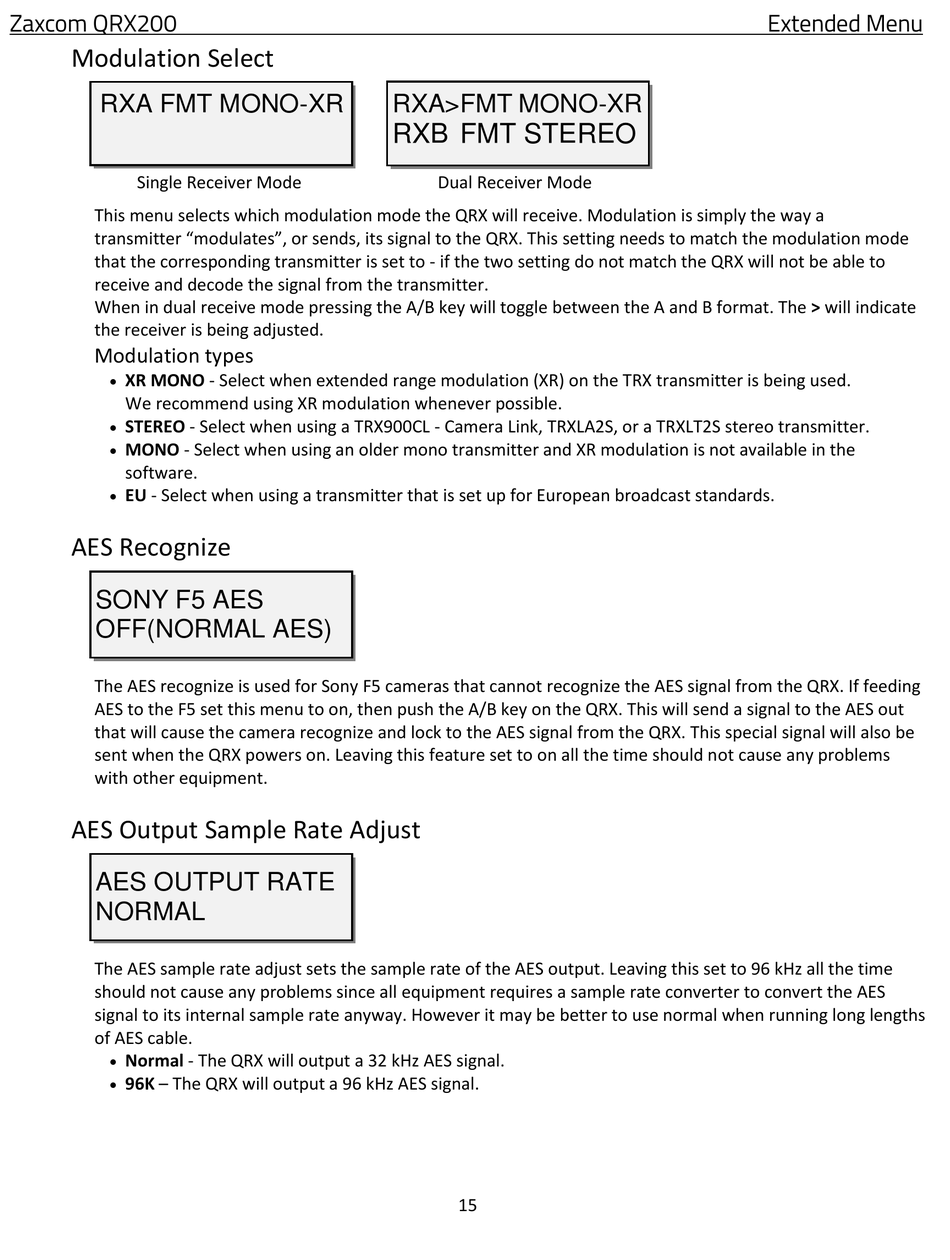

Zaxcom QRX200

Modulation Select

RXA FMT MONO-XR
Single Receiver Mode
This menu selects which modulation mode the QRX will receive. Modulation is simply the way a
transmitter "modulates", or sends, its signal to the QRX. This setting needs to match the modulation mode
that the corresponding transmitter is set to - if the two setting do not match the QRX will not be able to
receive and decode the signal from the transmitter.
When in dual receive mode pressing the A/B key will toggle between the A and B format. The > will indicate
the receiver is being adjusted
Modulation types

XR MONO - Select when extended range modulation (XR) on the TRX transmitter is being used.
We recommend using XR modulation whenever possible.

STEREO - Select when using a TRX900CL - Camera Link, TRXLA2S, or a TRXLT2S stereo transmitter.

MONO - Select when using an older mono transmitter and XR modulation is not available in the
software.

EU - Select when using a transmitter that is set up for European broadcast standards.

AES Recognize

SONY F5 AES
OFF(NORMAL AES)
The AES recognize is used for Sony F5 cameras that cannot recognize the AES signal from the QRX. If feeding
AES to the F5 set this menu to on, then push the A/B key on the QRX. This will send a signal to the AES out
that will cause the camera recognize and lock to the AES signal from the QRX. This special signal will also be
sent when the QRX powers on. Leaving this feature set to on all the time should not cause any problems
with other equipment.

AES Output Sample Rate Adjust

AES OUTPUT RATE
NORMAL
The AES sample rate adjust sets the sample rate of the AES output. Leaving this set to 96 kHz all the time
should not cause any problems since all equipment requires a sample rate converter to convert the AES
signal to its internal sample rate anyway. However it may be better to use normal when running long lengths
of AES cable.

Normal - The QRX will output a 32 kHz AES signal.

96K – The QRX will output a 96 kHz AES signal.
RXA>FMT MONO-XR
RXB FMT STEREO
Dual Receiver Mode
.
15
Extended Menu
