Knowing Your QRX200 Receiver

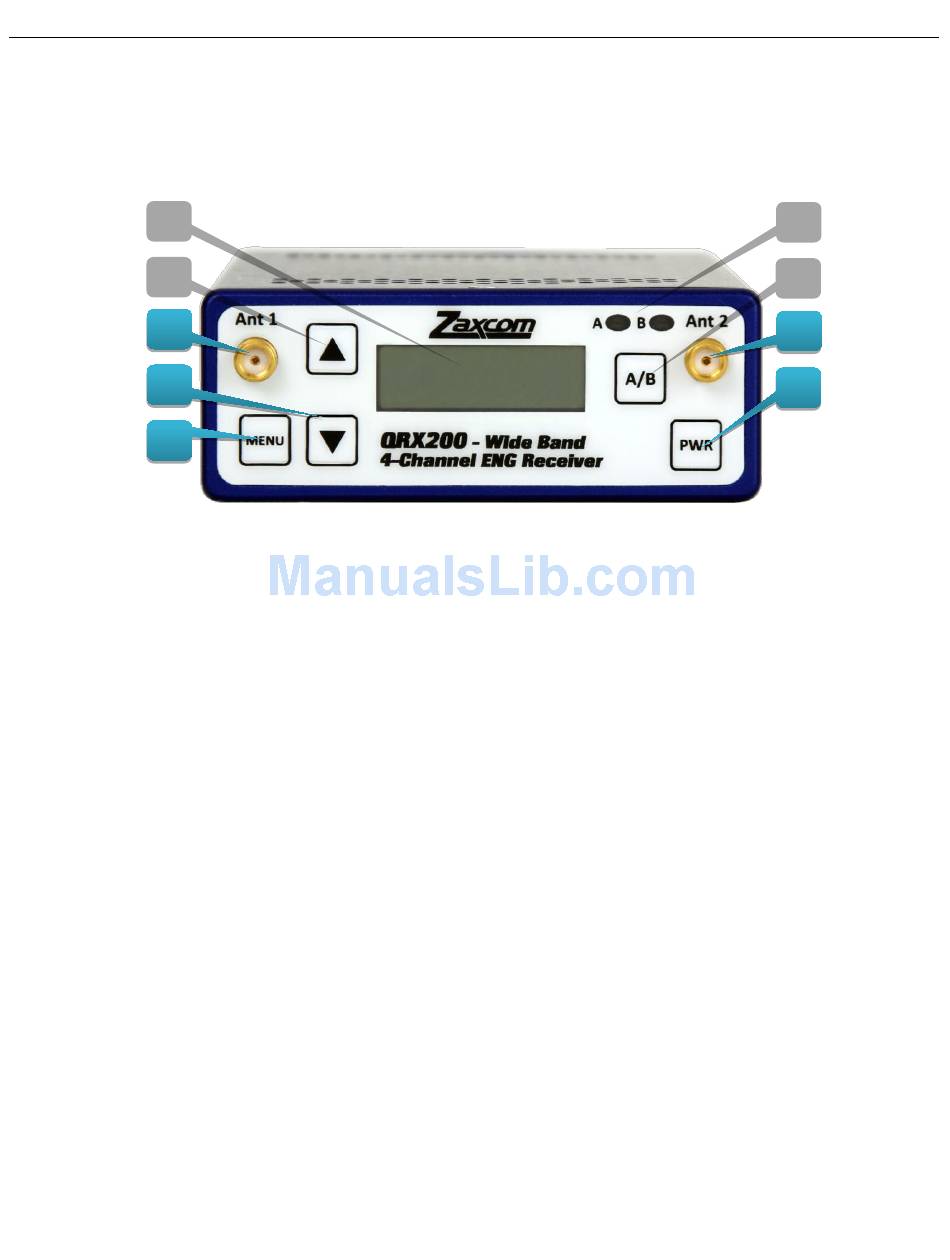

Front

1
2
3
4
5
1. OLED Display
2. INC Key - Used to increase the parameters of a menu item.
3. UHF Antenna Connectors (2) - SMA connectors.
4. Dec Key - Used to decrease the parameters of a menu item.
5. Menu Key - Press to advance to the next menu item.
6. Receiver Status Indicators
 Solid Red - Receiver is not getting a valid signal.
 Solid Green - Receiver is receiving a valid signal.
7. A/B Key - Press to alternate between receivers in dual mode.
8. Power Key - Press and hold for 2 seconds to power up the QRX. Press and hold for 5 seconds to power
down the QRX.
