Side

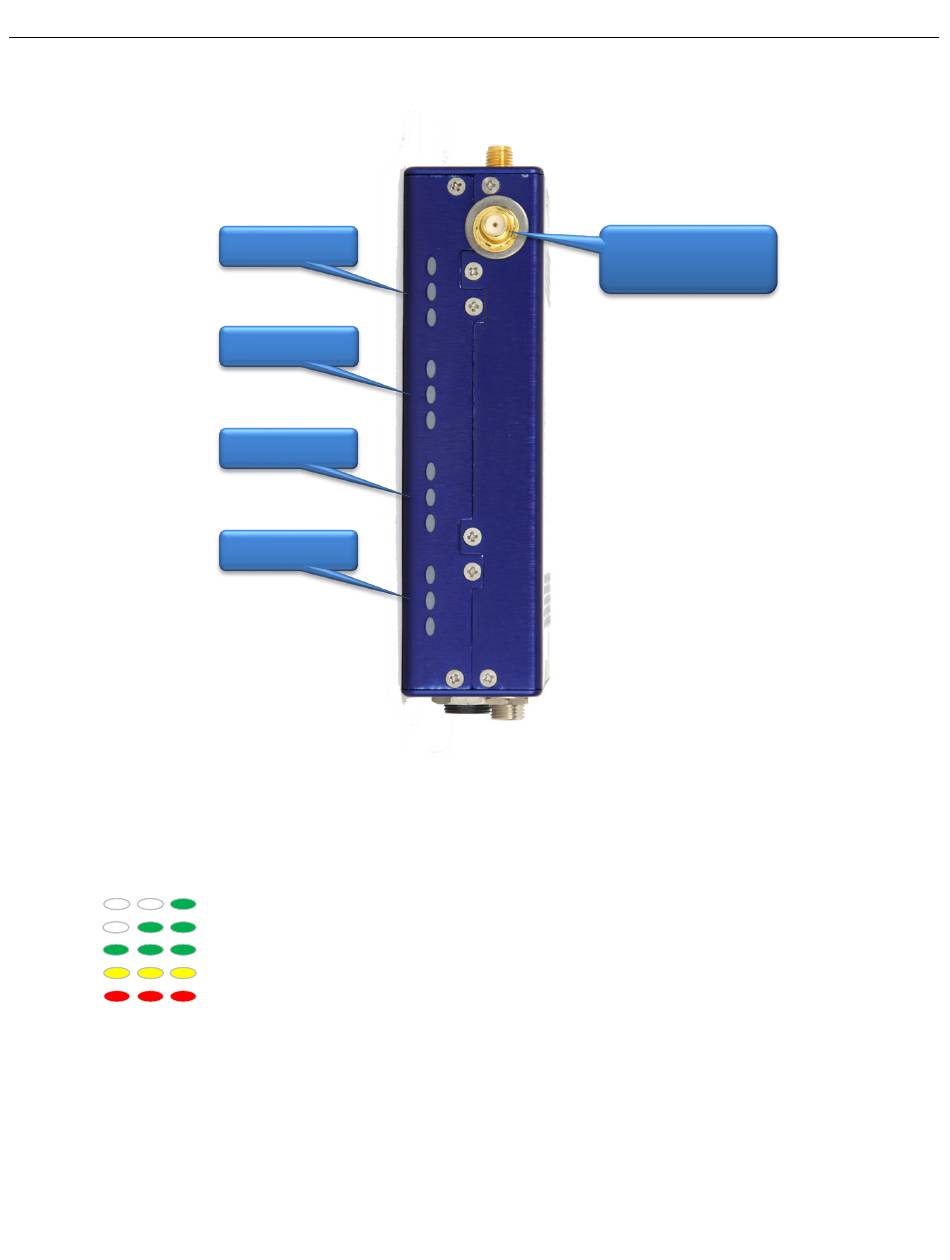

Side Mounted LEDs - The LEDs give visual indication if RF and / or audio are being received by the QRX. The LED
settings are adjusted in the extended menu. There are three LEDs per group and one group for each receive
channel. The group to the top represents channel one, the group below is channel 2, the next group is channel 3,
and the group on the bottom is channel 4.
LED modulation colors
ZaxNet Antenna Connector - SMA connector
When the QRX has the QIFB option installed this is where the ZaxNet antenna will be connected.
Channel 1
Channel 2
Channel 3
Channel 4
When the signal hits -40 dBFS
When the signal hits -20 dBFS
When the signal hits -10 dBFS
When the signal hits - 8 dBFS
When the signal hits - 5 dBFS
ZaxNet Antenna
SMA Connector
