Zaxcom QRX200

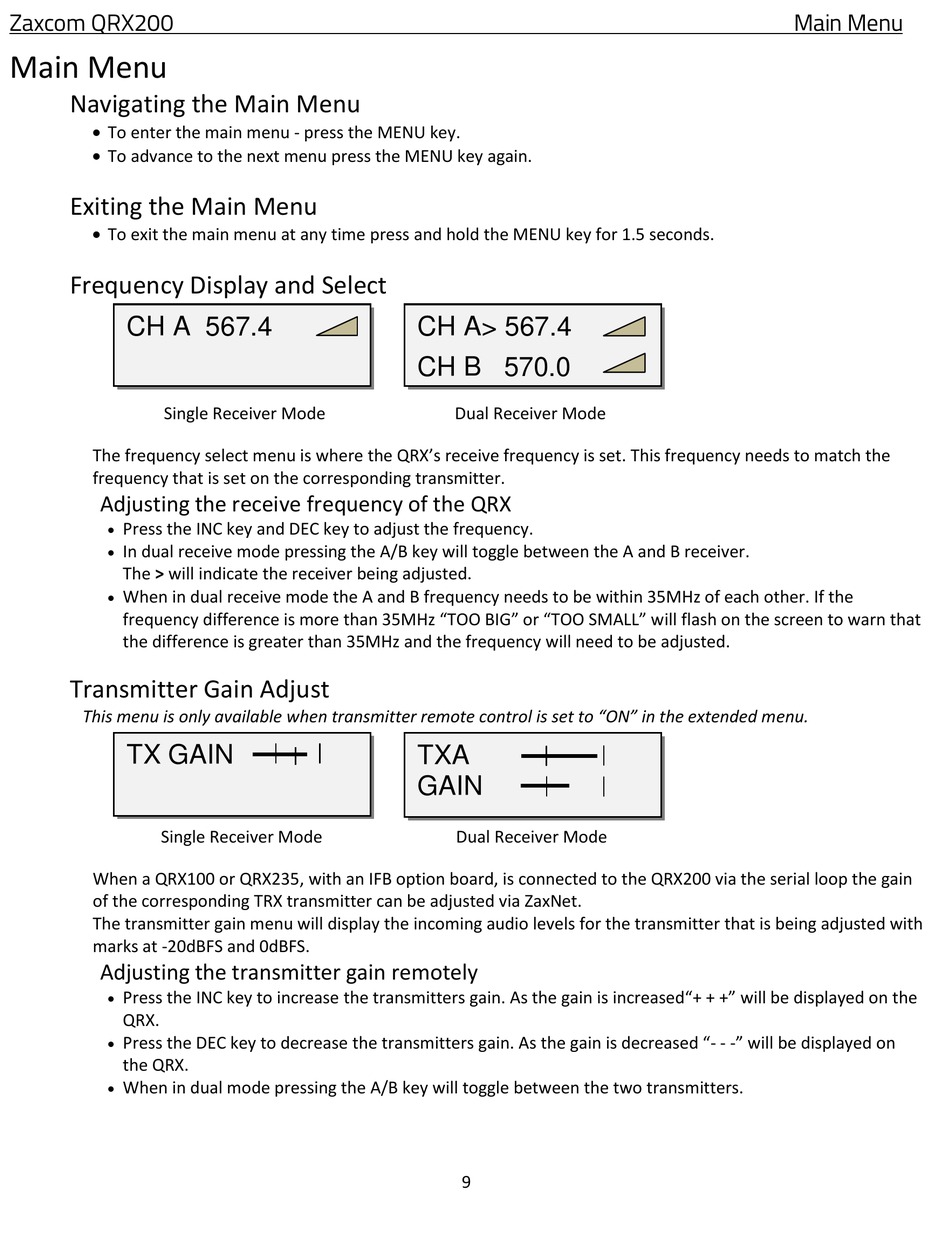

Main Menu

Navigating the Main Menu

 To enter the main menu - press the MENU key.
 To advance to the next menu press the MENU key again.

Exiting the Main Menu

 To exit the main menu at any time press and hold the MENU key for 1.5 seconds.

Frequency Display and Select

CH A 567.4
Single Receiver Mode
The frequency select menu is where the QRX's receive frequency is set. This frequency needs to match the
frequency that is set on the corresponding transmitter.

Adjusting the receive frequency of the QRX


Press the INC key and DEC key to adjust the frequency.

In dual receive mode pressing the A/B key will toggle between the A and B receiver.
The > will indicate the receiver being adjusted

When in dual receive mode the A and B frequency needs to be within 35MHz of each other. If the
frequency difference is more than 35MHz "TOO BIG" or "TOO SMALL" will flash on the screen to warn that
the difference is greater than 35MHz and the frequency will need to be adjusted.

Transmitter Gain Adjust

This menu is only available when transmitter remote control is set to "ON" in the extended menu.
TX GAIN
Single Receiver Mode
When a QRX100 or QRX235, with an IFB option board, is connected to the QRX200 via the serial loop the gain
of the corresponding TRX transmitter can be adjusted via ZaxNet.
The transmitter gain menu will display the incoming audio levels for the transmitter that is being adjusted with
marks at -20dBFS and 0dBFS.

Adjusting the transmitter gain remotely


Press the INC key to increase the transmitters gain. As the gain is increased"+ + +" will be displayed on the
QRX.

Press the DEC key to decrease the transmitters gain. As the gain is decreased "- - -" will be displayed on
the QRX.

When in dual mode pressing the A/B key will toggle between the two transmitters.
CH A> 567.4
CH B 570.0
Dual Receiver Mode
.
TXA
GAIN
Dual Receiver Mode
9
Main Menu
