Zaxcom QRX200

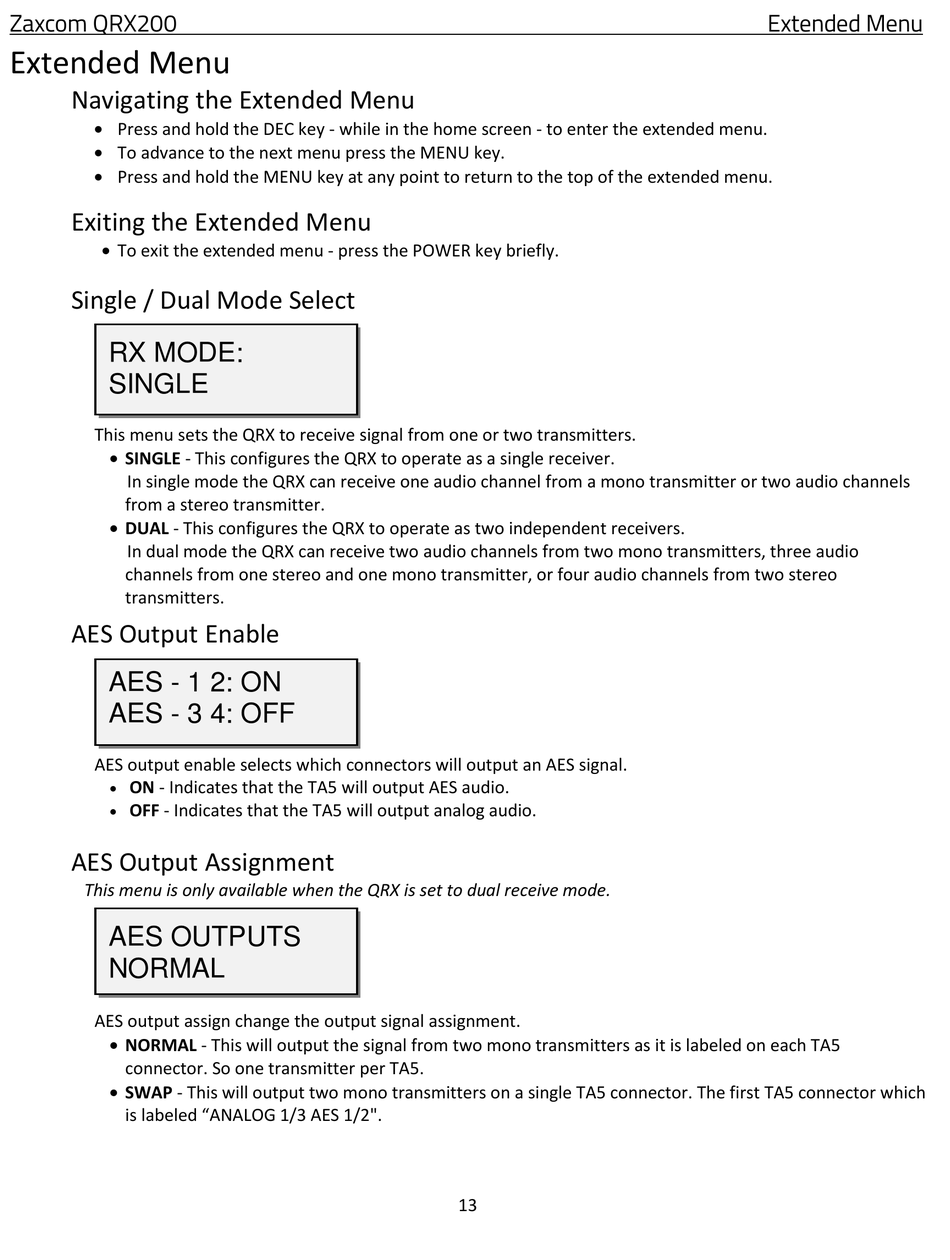

Extended Menu

Navigating the Extended Menu

 Press and hold the DEC key - while in the home screen - to enter the extended menu.
 To advance to the next menu press the MENU key.
 Press and hold the MENU key at any point to return to the top of the extended menu.
Exiting the Extended Menu
 To exit the extended menu - press the POWER key briefly.

Single / Dual Mode Select

RX MODE:
SINGLE
This menu sets the QRX to receive signal from one or two transmitters.
 SINGLE - This configures the QRX to operate as a single receiver.
In single mode the QRX can receive one audio channel from a mono transmitter or two audio channels
from a stereo transmitter.
 DUAL - This configures the QRX to operate as two independent receivers.
In dual mode the QRX can receive two audio channels from two mono transmitters, three audio
channels from one stereo and one mono transmitter, or four audio channels from two stereo
transmitters.

AES Output Enable

AES - 1 2: ON
AES - 3 4: OFF
AES output enable selects which connectors will output an AES signal.

ON - Indicates that the TA5 will output AES audio.

OFF - Indicates that the TA5 will output analog audio.

AES Output Assignment

This menu is only available when the QRX is set to dual receive mode.
AES OUTPUTS
NORMAL
AES output assign change the output signal assignment.
 NORMAL - This will output the signal from two mono transmitters as it is labeled on each TA5
connector. So one transmitter per TA5.
 SWAP - This will output two mono transmitters on a single TA5 connector. The first TA5 connector which
is labeled "ANALOG 1/3 AES 1/2".
13
