Zaxcom QRX200

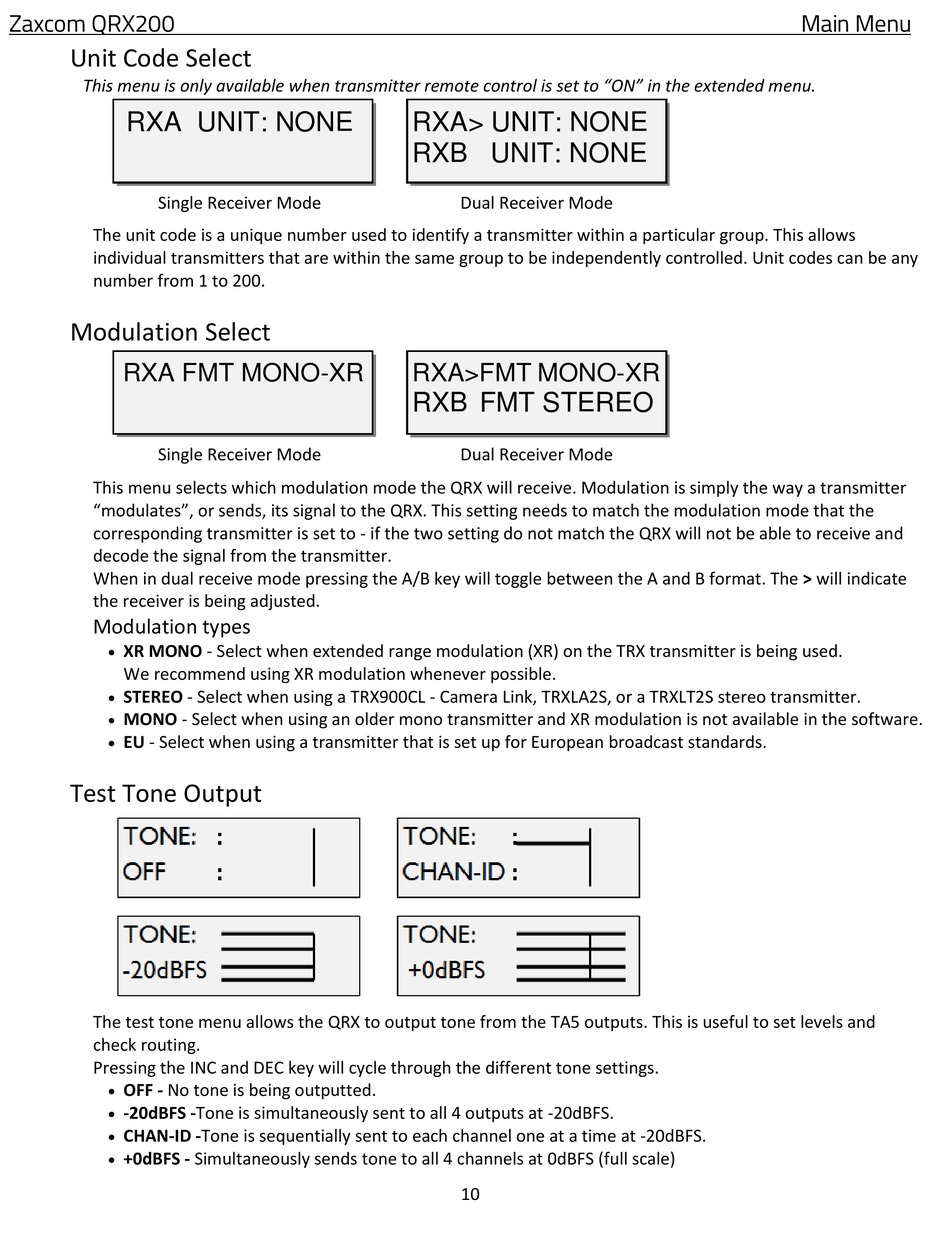

Unit Code Select

This menu is only available when transmitter remote control is set to "ON" in the extended menu.
RXA UNIT: NONE
Single Receiver Mode
The unit code is a unique number used to identify a transmitter within a particular group. This allows
individual transmitters that are within the same group to be independently controlled. Unit codes can be any
number from 1 to 200.

Modulation Select

RXA FMT MONO-XR
Single Receiver Mode
This menu selects which modulation mode the QRX will receive. Modulation is simply the way a transmitter
"modulates", or sends, its signal to the QRX. This setting needs to match the modulation mode that the
corresponding transmitter is set to - if the two setting do not match the QRX will not be able to receive and
decode the signal from the transmitter.
When in dual receive mode pressing the A/B key will toggle between the A and B format. The > will indicate
the receiver is being adjusted
Modulation types

XR MONO - Select when extended range modulation (XR) on the TRX transmitter is being used.
We recommend using XR modulation whenever possible.

STEREO - Select when using a TRX900CL - Camera Link, TRXLA2S, or a TRXLT2S stereo transmitter.

MONO - Select when using an older mono transmitter and XR modulation is not available in the software.

EU - Select when using a transmitter that is set up for European broadcast standards.

Test Tone Output

The test tone menu allows the QRX to output tone from the TA5 outputs. This is useful to set levels and
check routing.
Pressing the INC and DEC key will cycle through the different tone settings.

OFF - No tone is being outputted.

-20dBFS -Tone is simultaneously sent to all 4 outputs at -20dBFS.

CHAN-ID -Tone is sequentially sent to each channel one at a time at -20dBFS.

+0dBFS - Simultaneously sends tone to all 4 channels at 0dBFS (full scale)
RXA> UNIT: NONE
RXB UNIT: NONE
Dual Receiver Mode
RXA>FMT MONO-XR
RXB FMT STEREO
Dual Receiver Mode
.
