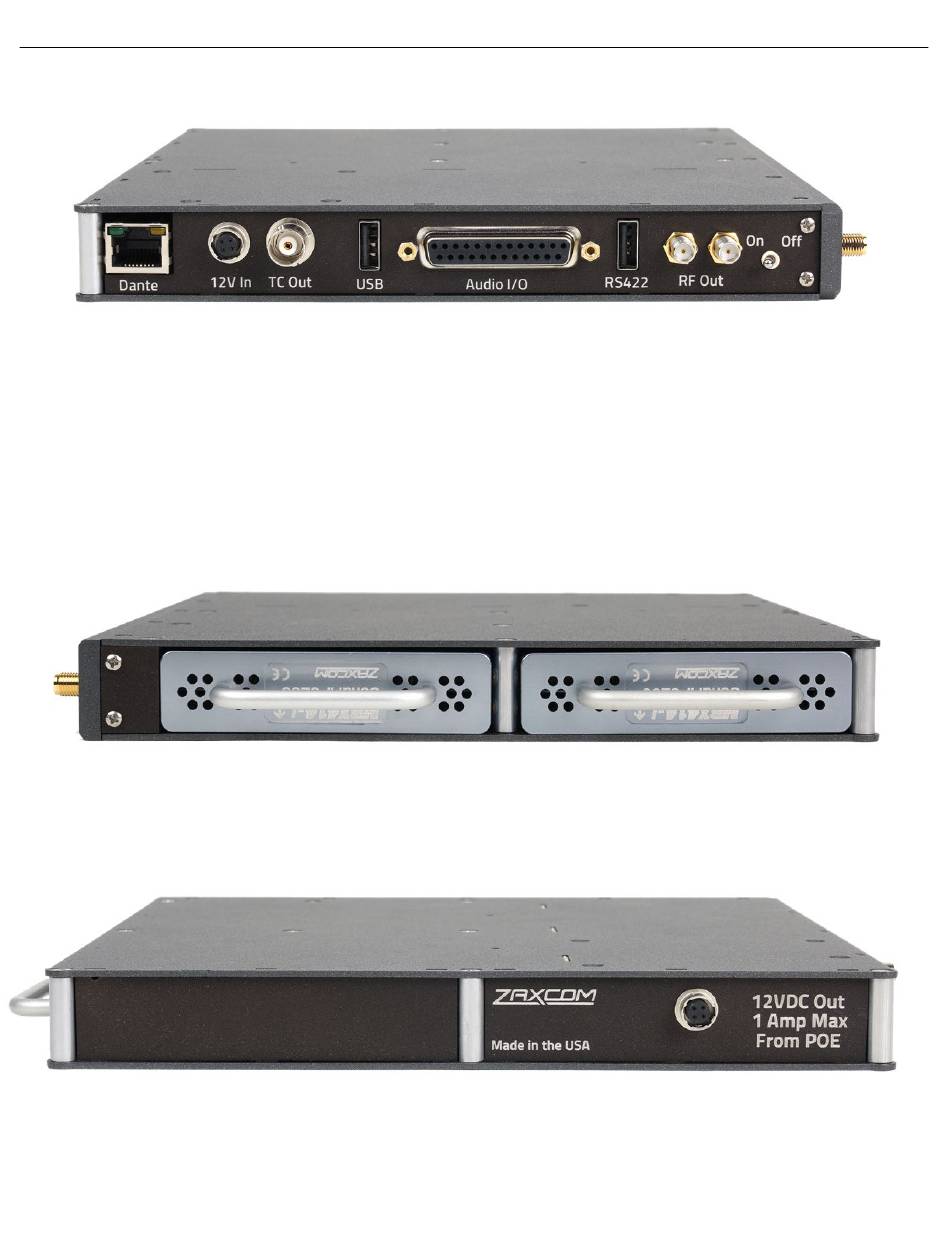

Side Panels

1. Dante I/O – RJ45 - The Dante connector allows for with Power Over Ethernet support.
2. DC Power Input - Hirose 4 Pin - The operating voltage of the RX-8 is 8 to 18 DC volts. When connected to
Dante and receiving POE it is not necessary to externally power the RX-8.
3. Time code out - BNC - the RX8 will output timecode when time code is sent on Dante analog audio 4 in.
4. USB - For factory use only
POTENTIALLY DAMAGE THE RX-8.
5. Audio In / Out - DB25 Analog and AES audio out. Audio can be inputted to be sent via Dante.
6. RS422 - For connection to a Camera Link or IFB300 for remote transmitter control.
7. RF Outputs - SMA - The RF out is post the 35MHz filter.
8. Power Switch - Control of the 12-volt input - if power is received via POE the power switch will be overridden.
The two MRX receivers slide into the side of the RX-8. The A receiver goes to in the bottom slot away from the front
panel and the B receiver goes in the top by the front panel. The arrows on the MRX will need to point to the bottom
of the RX-8. Please note if only using 1 receiver it must go in the A slot.
MRX software must be 2.12 to run in the RX-8 / MRX software can not be updated in the RX-8
The back of the RX-8 has a 12 Volt DC output. The RX-8 will output power only when receiving Power Over Ethernet.
Power must be less than 1 amp.
WARNING: DO NOT PLUG ANYTHNG INTO THE USB CONNECTOR - YOU CAN
