Zaxcom RX200

Rear

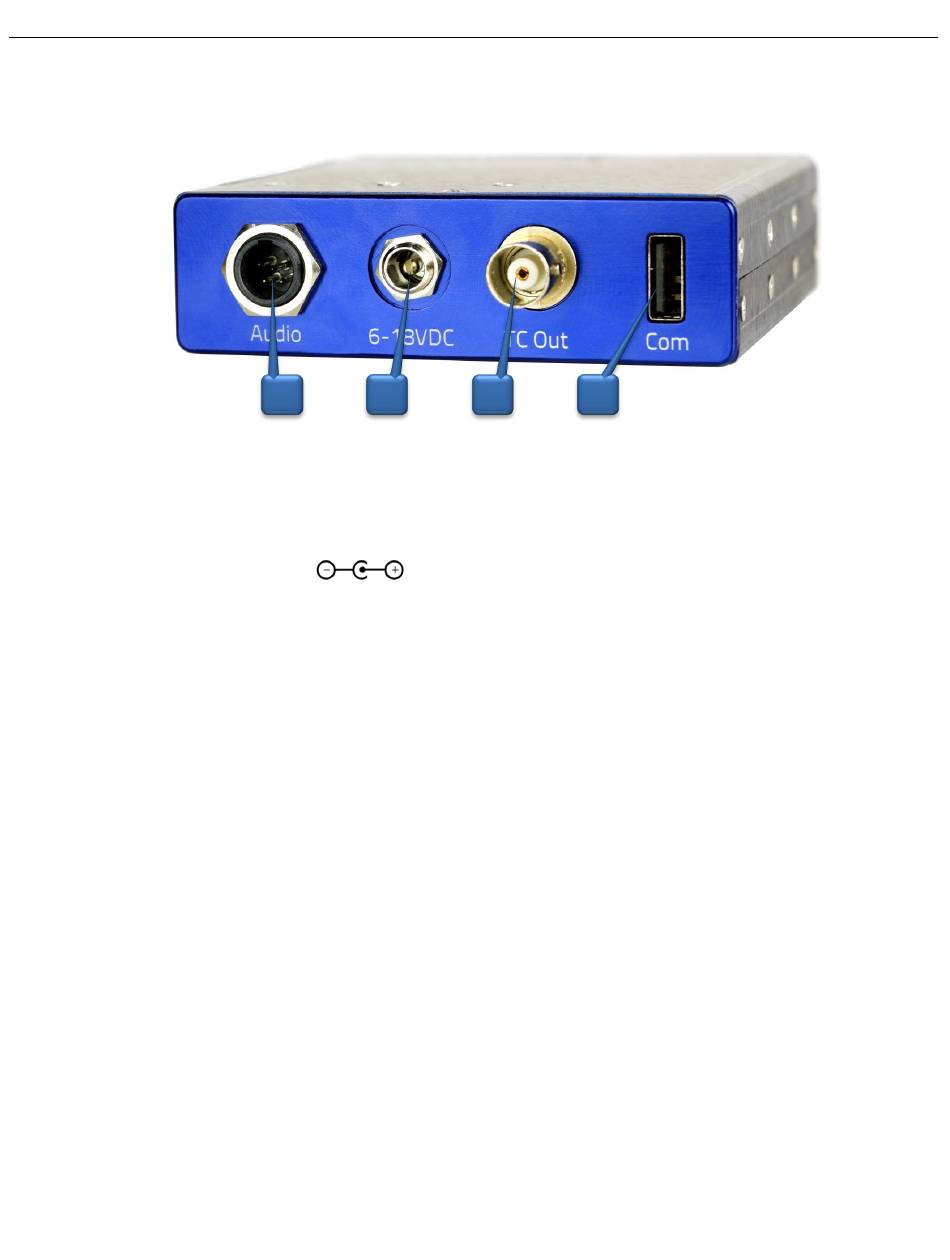

1. Audio Out Connector - TA5M
The same connector is used to output either analog audio or AES audio. The audio assignment is set in
the setup menu.
2. DC Power Input - Switchcraft 760K
The RX200 will accept external DC voltage from 6 to 18 volts.
3. Time Code Out – BNC
If the RX200 is receiving valid time code from the transmitter it will automatically output the received
time code.
4. Com Serial Port - This is reserved for future expansion.
1 2 3 4
5
Rear
